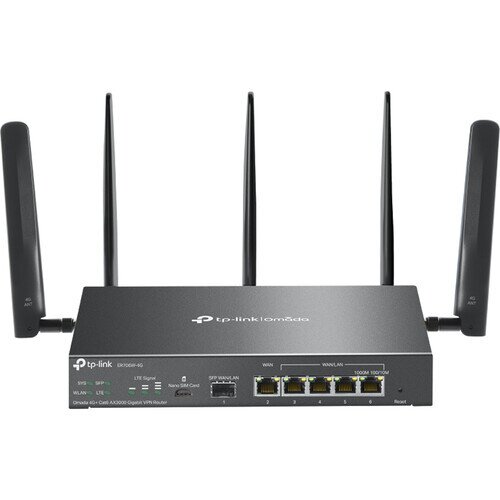

TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway Wireless Router
TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway Wireless Router Display Gallery Item 1
TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway Wireless Router - 2 Display Gallery Item 2
TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway Wireless Router - 3 Display Gallery Item 3
TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway Wireless Router - 4 Display Gallery Item 4

Grab TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway Wireless Router

By: TP-Link

Model: ER706W-4G

Sku: L08WGG2K0M

Be the first to review this product

Sign up for price alert

Regular Price: PKR 79,999

Special Price PKR 76,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Network Type: LTE Band of EU: , 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) , 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) , 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) / Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41, B3+B3/B5/B7/B8/B20/B28/B38/B40/B41, B5+B5/B7/B38/B40/B41, B7+B7/B8/B20/B28/B32, B8+B32/B38/B40/B41, B20+B32/B38/B40, B28+B32/B38/B40/B41, B38+B38, B40+B40, B41+B41 / LTE Band of US: , 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71, (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) , 4G LTE-TDD: B41/B48 (2500/3600 MHz) / Carrier Aggregation of US: B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71, B4+B4/B5/B7/B12/B13/B29/B30/B71, B5+B5/B7/B25/B30/B41/B66, B7+B7/B12/B66, B12+B12/B25/B30/B66, B13+B66, B14+B30/B66, B25+B25/B26/B41, B26+B41, B29+B30/B66, B30+B66, B41+B41, B48+B48, B66+B66/B71,
  • SIM Type: Nano SIM Card
  • Frequency: Downlink: 300 Mbps; , Uplink: 50 Mbps
  • Interface: Gigabit SFP WAN/LAN Port , 1 Gigabit WAN Port , 4 Gigabit LAN/WAN Ports
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) , 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) , 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
  • Button: Reset Button Power Supply: 12VDC / 2A Power Adapter
  • Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps , 5 GHz: 2402 Mbps (HE160)
  • Flash: 128 MB NAND DRAM: 512 MB DDR4 LED: SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
  • Antenna: Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas , LTE: Two 4.0dBi omnidirectional detachable antennas
  • Mounting: Desktop/Wall-Mounting
  • Max. Power Consumption: EU: 15.4W, US: 17.3W
  • IPS Throughput: TCP: 229 Mbps, UDP: 188 Mbps
  • DPI Throughput: TCP: 933 Mbps , UDP: 927 Mbps
  • GRE: Unencrypted: 545.3Mbps , Encrypted: 282.6Mbps
  • WireGuard VPN: 387.7Mbps
  • Concurrent Session: 150,000
  • New Sessions /Second: 5,100
  • NAT (Static IP): 947.1Mbps / 940.1Mbps
  • NAT(DHCP): 949.2Mbps / 941.1Mbps
  • NAT(PPPoE): 942.6Mbps / 941.1Mbps
  • NAT (L2TP): 875.4Mbps / 892.0Mbps
  • NAT (PPTP): 881.2Mbps / 895.8Mbps
  • IPsec VPN Throughput: ESP-SHA1-AES256: 652.2Mbps , ESP-SHA256-AES256: 654.4Mbps , ESP-SHA384-AES256: 646.5Mbps , ESP-SHA512-AES256: 670.5 Mbps
  • OpenVPN: 115.5Mbps
  • L2TP VPN Throughput: Unencrypted: 990.0Mbps , Encrypted: 475.0Mbps
  • PPTP VPN Throughput: Unencrypted: 1177.9Mbps , Encrypted: 177.4Mbps
  • SSL VPN Throughput: 122.5Mbps
  • 66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps
  • 1,518 Byte Packet forwarding rate: 81274 pps / 91275 pps
  • Advanced Features: Seamless Roaming , Mesh (with EAP that supports Mesh) , OFDMA , Beamforming , MU-MIMO , Rate Limit: Based on SSID/Client , Airtime Fairness , Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise , Multiple SSIDs: 16 in total (8 per radio)
  • Guest Network: Support
  • SMS: Receive / Send SMS
  • IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
  • Access Control: IP/Port/Protocol/Domain Name Filtering
  • Bandwidth Control: IP-Based Bandwidth Control
  • GRE: Only in Standalone Mode
  • SD-WAN: (Only in Controller Mode)
  • SSL VPN: 50 Tunnels
  • WireGuard VPN: 20 Tunnels
  • Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.
  • Management Features: Automatic Device Discovery , Intelligent Network Monitoring , Abnormal Event Warnings , Unified Configuration , Reboot Schedule , Captive Portal Configuration
  • Certification: CE, FCC, RoHS
  • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11 , MAC OS, NetWare, UNIX or Linux
  • Environment: Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) , Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) , Operating Humidity: 10% to 90% non-condensing , Storage Humidity: 5% to 90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US).
  • AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
  • 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
  • Centralized Management: Cloud access and the Omada app for easy management.
  • Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
  • High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.
  • 4G+ Cat6 up to 300 Mbps
  • 2402 Mbps + 574 Mbps
  • 6× Gigabit Ethernet Ports
  • Nano SIM Card Slot
  • IPSec/SSL/ WireGuard /OpenVPN/L2TP VPN
  • Centralized Management
  • Load Balancing
  • Omada App

In the Box

  • TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway Wireless Router
  • Power Adapter
  • Quick Installation Guide
