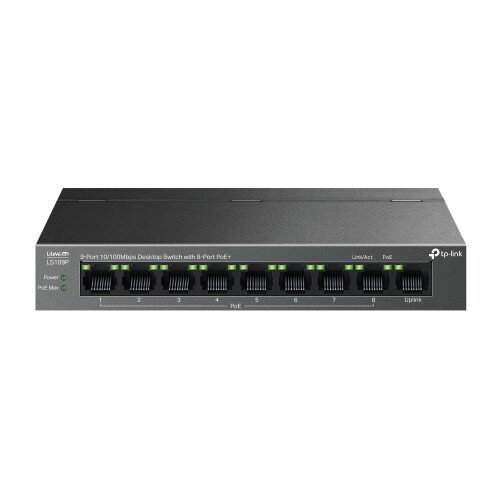

TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ Display Gallery Item 1
TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 2 Display Gallery Item 2
TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 3 Display Gallery Item 3
TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 4 Display Gallery Item 4

Grab TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

By: TP-Link

Model: LS109P

Sku: 6BIU2A009E

Be the first to review this product

Sign up for price alert

PKR 7,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Interface: 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports), AUTO Negotiation, AUTO MDI/MDIX
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless, Installation: Desktop, Wall Mounting, Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
  • LED: Power, Link/Act, PoE Status, PoE MAX, PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1–8, up to 30 W PoE output per port, Power Supply: 63 W
  • Max. Power Consumption: 3.67 W (220 V/50 Hz no PD connected), 73.24 W (220 V/50 Hz with 63 W PD connected), Max Heat Dissipation: 12.48 BTU/h (220 V/50 Hz no PD connected), 249 BTU/h (220 V/50 Hz with 63 W PD connected)
  • Switching Capacity: 1.8 Gbps, Packet Forwarding Rate: 1.3392 Mpps, MAC Address Table: 2K, Jumbo Frame: 1.5 KB
  • Advanced Features: Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission), Isolation Mode Button (Ports 1–8), PoE Auto Recovery Button (Ports 1–8), Compatible With IEEE 802.3af/at Compliant PDs, Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, Green Technology, Transmission Method: Store and Forward
  • Certification: CE, FCC, RoHS, Environment: Operating Temperature: 0–40 ℃ (32–104 ℉), Storage Temperature: -40–70 ℃ (-40–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare

Power over Ethernet, Flexible Network Deployment

Compliant with the 802.3af/at PoE+ standard, 63 W available for all PoE+ Ports, 30 W max per Port*

Isolation Mode

Easily divide traffic to avoid snooping/tampering and broadcast storm.

PoE Auto Recovery

Automatically detect and reboot offline or unresponsive devices.

63 W PoE Budget

Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission

With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery

Automatically reboots your dropped or unresponsive PoE-powered devices.

Traffic Separation for Higher Security

Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.

Plug and Play

Simply plug and play for instant connectivity with no configuration required.

Silent Operation

Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design

Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

In the Box

  • TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
  • Power Adapter
  • Installation Guide
  • Rubber Feet
