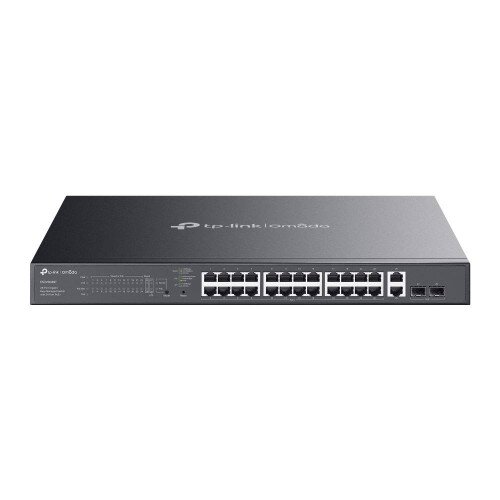

TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ Display Gallery Item 1
TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - 2 Display Gallery Item 2
TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - 3 Display Gallery Item 3
TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - 4 Display Gallery Item 4
TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - 5 Display Gallery Item 5

Grab TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

By: TP-Link

Model: ES228GMP

Sku: 54S3ZX01GJ

Be the first to review this product

Sign up for price alert

Regular Price: PKR 79,999

Special Price PKR 72,999

(9% off)

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Interface: 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+), 2× 10/100/1000 Mbps RJ45 Port, 2× Gigabit SFP Slot, Auto-Negotiation/Auto MDI/MDIX
  • Fan Quantity: 2
  • Installation: Rackmountable
  • Physical Security Lock: Yes
  • Power Supply: 100–240V AC, 50/60Hz
  • PoE Ports (RJ45): Standard: 802.3af PoE and 802.3at PoE+ compliant, PoE Ports: 24 ports, PoE Budget: 384W available for all PoE+ ports, 30W max per port, Fast PoE & Perpetual PoE, PoE Auto Recovery, Up to 250m PoE transmission distance**
  • Surge Protection: 6kV
  • Switching Capacity: 56 Gbps, Packet Forwarding Rate: 41.67 Mpps
  • MAC Address Table: 8K, Packet Buffer Memory: 4 Mbit, Jumbo Frame: 15 KB
  • Quality of Service: Port-based/802.1p/DSCP QoS, 8 Priority Queues, Priority Schedule Mode, WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port-Based Rating Limit, Storm Control, Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control
  • L2 Features: Static Link Aggregation, Loop Prevention / Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both, Port Statistics, Port Mirror Status, Traffic Statistics, 802.1ab LLDP
  • L2 Multicast: IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave: VLAN: MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN, Max 32 VLAN Groups, 4K VID
  • Transmission Method: Store-And-Forward
  • Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
  • Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
  • Management Features: Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration
  • Certification: FCC, CE, RoHS
  • Environment: Operating Temperature: -5℃~45℃ (23℉~113℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
  • 2× Gigabit SFP port
  • 384W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE**, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

In the Box

  • TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
