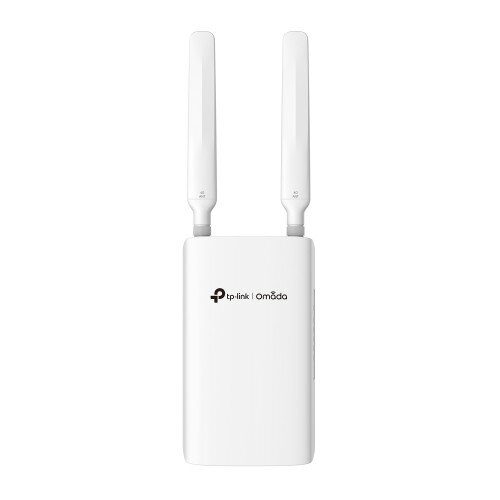

TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway Display Gallery Item 1
TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway - 2 Display Gallery Item 2
TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway - 3 Display Gallery Item 3
TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway - 4 Display Gallery Item 4
TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway - 5 Display Gallery Item 5

Grab TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

By: TP-Link

Model: ER703WP-4G-Outdoor

Sku: 7WUAYN3CTN

Be the first to review this product

Sign up for price alert

Regular Price: PKR 19,999

Special Price PKR 17,999

(10% off)

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Network Type: LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9, 00/800/700/1450 MHz), 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz), 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8, (2100/1800/850/900 MHz), Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41, B3+B3/B5/B7/B8/B20/B28/B38/B40/B41, B5+B5/B7/B38/B40/B41, B7+B7/B8/B20/B28/B32, B8+B32/B38/B40/B41, B20+B32/B38/B40, B28+B32/B38/B40/B41, B38+B38, B40+B40, B41+B41
  • SIM Type: Nano SIM Card Frequency: Downlink: 300 Mbps; Uplink: 50 Mbps
  • SECURITY: DPI: Application control via DPI / Updated app library, Access Control: Source/Destination IP Based Access Control, Filtering: Web Group Filtering, URL Filtering, Web Security, ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding, Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN
  • Interface: 3 Gigabit WAN/LAN Ports, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m), 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m), 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m), Button: Reset Button
  • Power Supply: 802.3at/bt PoE; 12VDC / 2A Power Adapter
  • Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160), Flash: 256 MB NAND, DRAM: 512 MB DDR4, LED: 4G Signal, WLAN, WAN/LAN, SYS
  • Antenna: Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in, antennas: LTE: Two 4.0dBi omnidirectional detachable antennas, Mounting Pole/Wall-Mounting, Max. Power Consumption: 14.5W without PoE, 63W with PoE
  • DPI Throughput: TCP: 1131 Mbps, UDP: 974 Mbps, GRE: Unencrypted: 450.3Mbps, Encrypted: 277.6Mbps, WireGuard VPN: 462.8Mbps, Concurrent Session: 120,000
  • New Sessions /Second: 3,800, NAT (Static IP): 945.9Mbps / 950.2Mbps, NAT(DHCP): 947.3Mbps / 949.4Mbps, NAT(PPPoE): 916.9Mbps / 946.3Mbps
  • NAT (L2TP): 878.9Mbps / 778.9Mbps, NAT (PPTP): 852.2Mbps / 775.9Mbps, IPsec VPN Throughput: ESP-SHA1-AES256: 568.3Mbps, ESP-SHA256-AES256: 559.8Mbps, ESP-SHA384-AES256: 565.6Mbps, ESP-SHA512-AES256: 550.0 Mbps, OpenVPN: 85.1Mbps
  • L2TP VPN Throughput: Unencrypted: 858.7Mbps, Encrypted: 467.0Mbps, PPTP VPN Throughput: Unencrypted: 876.2Mbps, Encrypted: 182.6Mbps, SSL VPN Throughput: 86.6Mbps, 66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,489 pps, 1,518 Byte Packet forwarding rate: 81275 pps / 81275 pps
  • WIRELESS FEATURES: Advanced Features: Seamless Roaming, Mesh (with EAP that supports Mesh), OFDMA, Beamforming, MU-MIMO, Rate Limit: Based on SSID/Client, Airtime Fairness, Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise, Multiple SSIDs: 16 in total (8 per radio), Guest Network: Support
  • WAN Connection Type: Static IP, Dynamic IP, PPPoE (supports MRU Configuration), PPTP, L2TP, MAC Clone: Modify WAN Address, DHCP: DHCP Server, DHCPv6 PD Server (only in Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
  • SMS: Receive / Send SMS, IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode, VLAN: 802.1Q VLAN, IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
  • Access Control: IP/Port/Protocol/Domain Name Filtering, Advanced Routing: Static Routing, Policy Routing, RIP, OSPF, Bandwidth Control: IP-Based Bandwidth Control
  • Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup(Timing, Failover), Online Detection, NAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP, Session Limit IP-Based Session Limit
  • GRE: Only in Standalone Mode, SSL VPN 50 Tunnels, IPsec VPN: 100 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IPsec Failover, IKE v1/v2, MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
  • PPTP VPN: PPTP VPN Server, PPTP VPN Client (10), 50 Tunnels, PPTP with MPPE Encryption, L2TP VPN: L2TP VPN Server, L2TP VPN Client (10), 50 Tunnels, L2TP over IPSec, OpenVPN: OpenVPN Server, OpenVPN Client (5), 55 OpenVPN Tunnels, "Certificate + Account" Mode, Full Mode, WireGuard VPN: 20 Tunnels
  • Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Sever, External Portal Sever, LDAP
  • Omada App: Yes. Centralized Management: Omada Cloud Essentials, Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Cloud Access: Yes. Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
  • Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (only in Standalone Mode), Syslog Support, Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration
  • Certification: CE, FCC, RoHS
  • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux
  • Environment: Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F), Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F), Operating Humidity: 5% to 95% non-condensing, Storage Humidity: 5% to 90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • 4G+ Cat6 up to 300 Mbps*
  • AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz
  • 3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
  • Nano SIM Card Slot
  • 802.3at/bt PoE or 12V/2A DC Power Supply
  • 4G and Ethernet WAN Auto Backup with Load Balancing
  • IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
  • Centralized Management
  • IP55 Weatherproofing

All-in-one Device

Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.

  • 4G+ Cat6 Gateway
  • Wi-Fi 6 Technology
  • Gigabit PoE In/Out Ports
  • Ethernet WAN Internet Connectivity (Auto backup between 4G)

Specially Designed Weatherproof Enclosure for Outdoors

Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.

Multiple Power Supply Options

Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.

Plug and Play

Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.

Centralized Management

Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.

Easy Installation

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.

In the Box

  • TP-Link ER703WP Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
  • Mounting Kits
  • Quick Installation Guide
