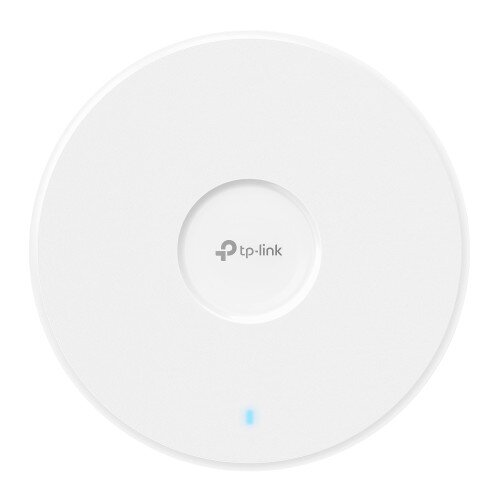

TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point Display Gallery Item 1
TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point - 2 Display Gallery Item 2
TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point - 3 Display Gallery Item 3
TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point - 4 Display Gallery Item 4

Grab TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

By: TP-Link

Model: EAP783

Sku: 53K30QHVCZ

Be the first to review this product

Sign up for price alert

PKR 211,899

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Next-Gen WiFi 7
  • 11520 Mbps on 6 GHz +
  • 5760 Mbps on 5 GHz +
  • 1376 Mbps on 2.4 GHz +
  • Multi-Link
  • Operation (MLO)
  • Two 10G Ports
  • PoE++ Power
  • Auto Channel Selection and Power Adjustment
  • Centralized Cloud Management
  • Omada Mesh Technology
  • Secure Guest Network with up to 24 SSIDs
  • Boost Your Business with SMS Login△
  • WPA3 for Worry-Free Open Public Networks
  • Rogue AP Detection
  • Interface: 2× 10G Ethernet Ports
  • Button: Reset
  • Power Supply: 802.3bt PoE++, 12V DC
  • Max. Power Consumption 39W
  • Antenna: Internal Omni, 2.4 GHz: 4× 4 dBi, 5 GHz: 4× 5.5 dBi, 6 GHz: 4× 5 dBi
  • Bluetooth: Yes
  • Mounting: Ceiling / Wall Mounting (Kits Included)
  • Coverage: 200 (2150 ft)
  • Concurrent Clients: 760+
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
  • Frequency: 6 GHz, 5 GHz, and 2.4 GHz
  • Signal Rate: 6 GHz: Up to 11520 Mbps, 5 GHz: Up to 8640 Mbps, 2.4 GHz: Up to 1376 Mbps
  • Wireless Functions: MLO, 4K-QAM, 4x4 MU-MIMO DL/UL, HE320 (320 MHz Bandwidth), Mesh, AI Roaming, Automatic Channel Selection and Power Adjustment, BSS Coloring, UL/DL, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
  • Wireless Security: PPSK, VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, Maximum number of MAC Filter: 4,000, Wireless Isolation between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
  • Transmission Power: FCC,
  • Omada App: Yes
  • Restore & Backup: Yes
  • Firmware update via Web: Yes
  • NTP: Yes
  • Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
  • Cloud Access: Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • SSH: Yes
  • Web-based Management: Yes
  • Environment: perating Temperature: 0 °C–40 °C (32 °F–104 °F), Storage Temperature: -40 °C–70 °C (-40 °F–158 °F), Operating Humidity: 10%–90% non-condensing, Storage Humidity: 5%–90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • BE22000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 8640 Mbps on 5 GHz + 1148 Mbps on 2.4 GHz).
  • A clear 6 GHz band brings cleaner and wider band resources,
  • 2× 10G ports unlock the full potential of Wi-Fi 7.
  • 320 MHz bandwidth enables many more simultaneous transmissions.
  • Multi-Link Operation and Multi-RUs ensure the high performance of your network.
  • Advanced Functions: Centralized management, mesh, and AI roaming

Seamless Integration into the Omada SDN

Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.

In the Box

  • TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
  • Installation Guide
  • Ceiling/Wall Mounting Kits
