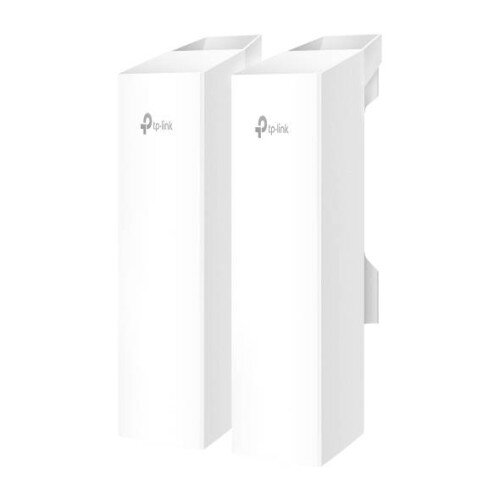

TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point
TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point Display Gallery Item 1
TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point - 2 Display Gallery Item 2
TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point - 3 Display Gallery Item 3
TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point - 4 Display Gallery Item 4

Grab TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point

By: TP-Link

Model: EAP115-Bridge KIT

Sku: UGAGQYTCY3

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • HARDWARE FEATURES: Interface: 3x 10/100 Mbps Ethernet Ports*, Button: Reset
  • Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter.), Power Consumption: 6.5W
  • Antenna Type: Internal 2×2 Dual-polarized directional MIMO antennas, 5 GHz: 11.0 dBi, Horizontal:35°, Vertical: 35°
  • Weatherproof Enclosure: IP65
  • Mounting: Pole mounting (Accessories
  • WIRELESS FEATURES: Coverage: 5000m(16400ft)
  • Wireless Standards: IEEE 802.11 a/b/g/n
  • Frequency: 5 GHz, Signal Rate: 5 GHz: Up to 300 Mbps
  • Wireless Functions Mesh*4, Load Balance, Beamforming, Airtime Fairness, Seamless Roaming(802.11r), Multiple SSIDs:8, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
  • Wireless Security: VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication*4, Maximum number of MAC Filter: 4,000, WPA-Personal/Enterprise, WPA2-Personal/Enterprise
  • Transmission Power: CE: (23dBm (5 GHz, band 1/2, EIRP); (30dBm (5 GHz band3, EIRP); FCC:(22dBm (5 GHz band1/4)
  • MANAGEMENT: Omada App: Yes, Restore & Backup: Yes, Firmware update via Web: Yes, NTP: Yes
  • Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
  • Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
  • LED ON/OFF Control: Yes, Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3, SSH : Yes, Web-based Management: Yes
  • Certification: CE, FCC, RoHS
  • Environment: Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • 802.11n for up to 300 Mbps on the 5 GHz wireless data rate.
  • Ideal for long-range wireless transmission up to 5 km.
  • Auto-pairing and agile LEDs for efficient deployment.
  • 3× 10/100 Mbps Ethernet ports for more high-speed IP camera connections.
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
  • Supports Passive PoE for flexible deployment (adapter).

Long-Distance PtMP & PtP Wi-Fi Transmission, Perfect for Multiple Scenarios

Omada Professional Outdoor Wireless Bridge Solution

Up to 3.1mi (5km) Distance

Ideal for setting up networks in remote locations.

Up to 70° Beamwidth for Wider Deployment

One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs.

Three Ports for More Devices

Connect more cameras and devices without an extra switch.

IP65 Weatherproof for Outdoor Use

Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C).

Standalone or Omada SDN Mode

Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.

Point-to-Point (PtP) Network Expansion or Remote Camera Monitoring

Outdoor PtP (Point-to-Point) Wi-Fi Connection

Extend Wi-Fi to Additional Buildings

Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.

Extend Wi-Fi to Additional Offices

Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.*

Elevator PtP Wi-Fi for Surveillance

Record real-time video to an NVR with virtually no hardwiring required

Point-to-Multipoint (PtMP) Connections with Higher Beamwidth for Distributed Cameras

Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance

Parking Lots

Remotely connect cameras to reduce crime and accidents

Farms / Orchards

Remotely connect cameras to protect your property

Construction Sites

Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.

Easy Setup and Installation

Auto-Pairing to Reduce Setup Time

*Auto pairing works for the original kit. Three or more bridges require manual setup.

LED Signal Indicator for Easy Alignment

*Pole mounting accessories are included, while the bracket for wall mounting and pole mounting requires purchase separately.

Standalone Mode

Simple Setup for Individual Scenarios

Power on both bridges and connect one to the network via cable to make it the main bridge.

Set up the main bridge using the Omada App or Web UI, then configure the sub-bridge step by step

Deploy the sub-bridge at the remote location, align it using the signal LED, and optimize with the app if needed.

Works with Omada SDN

Faster Batch Deployment and Remote Management

Omada bridges integrate with Omada SDN for centralized management and remote access, enabling faster batch deployment of multiple bridge pairs, using batch provisioning.

Dedicated Hardware Design

In the Box

  • TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kit
