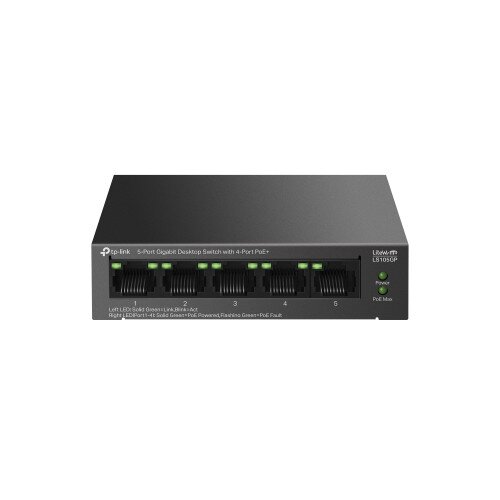

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ Display Gallery Item 1
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ - 2 Display Gallery Item 2
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ - 3 Display Gallery Item 3
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ - 4 Display Gallery Item 4

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ - Shop Now!

By: TP-Link

Model: TL-LS105GP

Sku: PGK017N0YX

Be the first to review this product

Sign up for price alert

PKR 9,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Interface: 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+) , AUTO Negotiation , AUTO MDI/MDIX
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) , 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) , 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless
  • Installation: Desktop , Wall Mounting
  • Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant , PoE Ports: Ports 1–4, up to 30 W PoE output per port , Power Supply: 65 W
  • Max Power Consumption: 4 W (220/50 Hz. no PD connected) , 74.46 W (220/50 Hz. with 65 W PD connected)
  • Max Heat Dissipation: 13.6 BTU/h (no PD connected) , 253.16 BTU/h (with 65 W PD connected)
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • MAC Address Table: 2K
  • Jumbo Frame: 16 KB
  • Certification: FCC, CE, RoHS
  • Environment: Operating Temperature: 0–40 ℃ (32–104 ℉); , Storage Temperature: -40–70 ℃ (-40–158 ℉) , Operating Humidity: 10–90% RH non-condensing , Storage Humidity: 5–90% RH non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.
  • 65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
  • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
  • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
  • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

In the Box

  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
  • Power Adapter
  • Installation Guide
