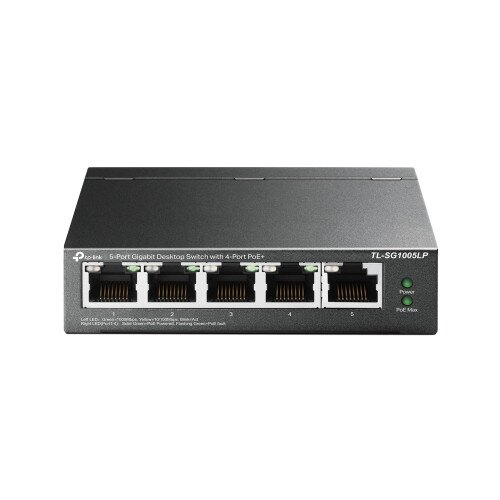

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+
TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ Display Gallery Item 1
TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ - 2 Display Gallery Item 2
TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ - 3 Display Gallery Item 3
TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ - 4 Display Gallery Item 4

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ - Shop Now!

By: TP-Link

Model: TL-SG1005LP

Sku: X6K4W8ALCW

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 40 W for all PoE ports
  • Plug and play, no configuration and installation required
  • Interface: 5× 10/100/1000Mbps RJ45 Ports , UTO Negotiation , AUTO MDI/MDIX
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) , EIA/TIA-568 100Ω STP (maximum 100m) , 100BASE-TX: UTP category 5, 5e cable (maximum 100m) , EIA/TIA-568 100Ω STP (maximum 100m) , 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) , EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless
  • External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
  • Packet Forwarding Rate: 7.44 Mpps
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W
  • Mac Address Table: 2K
  • Jumbo Frame: 16 KB
  • Switching Capacity: 10 Gbps
  • Max Power Consumption: 4.12 W (220/50 Hz. no PD connected) , 47.5 W (220/50 Hz. with 40 W PD connected)
  • Max Heat Dissipation: 14.05 BTU/h (no PD connected) , 161.98 BTU/h (with 40 W PD connected)
  • Certification: FCC, CE, RoHS
  • Environment: Operating Temperature: 0–40 ℃ (32–104 ℉); , Storage Temperature: -40–70 ℃ (-40–158 ℉) , Operating Humidity: 10–90% RH non-condensing , Storage Humidity: 5–90% RH non-condensing
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Professional 5-Port Gigabit Switch with 4 PoE+ Ports

Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management

When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

In the Box

  • TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+
  • Power Adapter
  • Installation Guide
