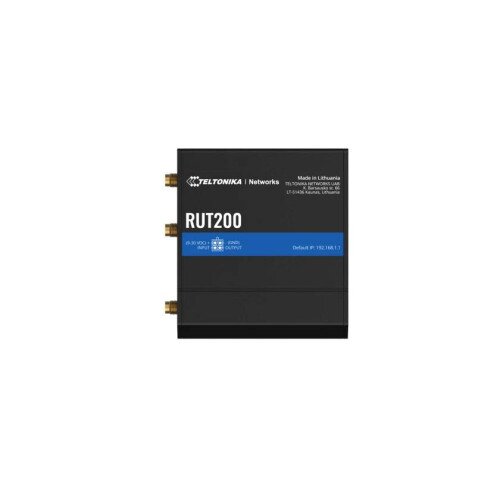

Teltonika RUT200 Industrial Cellular Router
Teltonika RUT200 Industrial Cellular Router Display Gallery Item 1
Teltonika RUT200 Industrial Cellular Router - 2 Display Gallery Item 2
Teltonika RUT200 Industrial Cellular Router - 3 Display Gallery Item 3
Teltonika RUT200 Industrial Cellular Router - 4 Display Gallery Item 4
Teltonika RUT200 Industrial Cellular Router - 5 Display Gallery Item 5

Teltonika RUT200 Industrial Cellular Router Price in Pakistan

By: Teltonika

Model: RUT200

Sku: YI265DPPV7

Be the first to review this product

Sign up for price alert

PKR 40,399

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • CONNECTIVITY: 4G/LTE (Cat 4), 3G, 2G
  • WI-FI: Wireless Access Point with Hotspot functionality
  • WAN FAILOVER: Automatic switching to available Backup connection
  • RMS: For remote management, access & VPN services
  • MOBILE: Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps / 3GPP Release: Release 9 / Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID / SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP / USSD: Supports sending and reading Unstructured Supplementary Service Data messages Black/White list / Operator black/white list / Multiple PDN: Possibility to use different PDNs for multiple network access and services / Band management: Band lock, Used band status display / APN: Auto APN / Bridge: Direct connection (bridge) between mobile ISP and device on LAN / Passthrough: Router assigns its mobile WAN IP address to another device on LAN
  • WIRELESS: Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA) / Wi-Fi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation / SSID/ESSID: SSID stealth mode and access control based on MAC address / Wi-Fi users: Up to 50 simultaneous connections / Wireless Connectivity Features: Fast roaming (802.11r), Relayd / Wireless MAC filter: Whitelist, blacklist / Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.
  • NETWORK: Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes / Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing / Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) / VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets / Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection / Firewall: Port forward, traffic rules, custom rules / Firewall status page: View all your Firewall statistics, rules, and rule counters / Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on / Network topology: Visual representation of your network, showing which devices are connected to which other devices / DHCP: Static and dynamic IP allocation, DHCP Relay / QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e / DDNS: Supported >25 service providers, others can be configured manually / Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover / Load balancing: Balance Internet traffic over multiple WAN connections / SSHFS: Possibility to mount remote file system via SSH protocol
  • ETHERNET: WAN: WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX / LAN: LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • SECURITY: Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block / Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T / Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) / VLAN: Port and tag-based VLAN separation / Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number / WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only / Access control: Flexible access control of SSH, Web interface, CLI and Telnet
  • VPN: OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods / OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 / IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) / GRE: GRE tunnel, GRE tunnel over IPsec support / PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support / Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code / DMVPN: Method of building scalable IPsec VPNs / SSTP: SSTP client instance support / ZeroTier: ZeroTier VPN client support / WireGuard: WireGuard VPN client and server support / Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
  • OPC UA:Supported modes: Client, Server / Supported connection types: TCP
  • MODBUS TCP MASTERP: Supported functions: 01, 02, 03, 04, 05, 06, 15, 16 / Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
  • DATA TO SERVER: Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis / Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server
  • MQTT GATEWAY: MQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker / DNP3: Supported modes TCP Master, DNP3 Outstation / DLMS: DLMS Support: DLMS - standard protocol for utility meter data exchange
  • MONITORING & MANAGEMENT: WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log / FOTA: Firmware update from server, automatic notification / SSH: SSH (v1, v2) / SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET / Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off / TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem / MQTT: MQTT Broker, MQTT publisher / SNMP: SNMP (v1, v2, v3), SNMP Trap / JSON-RPC : Management API over HTTP/HTTPS / RMS: Teltonika Remote Management System (RMS)
  • IOT PLATFORMS: Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability / ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type / Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength / Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
  • SYSTEM CHARACTERISTICS: CPU: Mediatek, 580 MHz, MIPS 24KEc / RAM: 128 MB, DDR2 / FLASH storage: 16 MB, SPI Flash
  • FIRMWARE / CONFIGURATION: WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup / FOTA: Update FW / RMS: Update FW/configuration for multiple devices at once / Keep settings: Update FW without losing current configuration
  • FIRMWARE CUSTOMISATION: Operating system: RutOS (OpenWrt based Linux OS) / Supported languages: Busybox shell, Lua, C, C++ / Development tools: SDK package with build environment provided / GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.
  • INPUT / OUTPUT: Input: Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high / Output: Digital Output, Open collector output, max output 30 V, 300 mA / Events: Email, RMS, SMS / I/O juggler: Allows to set certain I/O conditions to initiate event
  • POWER: Connector: 4-pin industrial DC power socket / Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection )31 VDC 10us max / PoE (passive): Passive PoE: over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 / VDC / Power consumption: ( 6.5 W Max
  • PHYSICAL INTERFACES: Ethernet: 2 x RJ45 ports, 10/100 Mbps / I/O’s: Digital Input, Digital Output on 4-pin power connector / Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, Power LED / SIM: SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder / Power: 4-pin power connector / Antennas: 2 x SMA for LTE, RP-SMA for Wi-Fi antenna connectors / Reset: Reboot/User default reset/Factory reset button
  • Casing material: Aluminium housing, plastic panels
  • Mounting options: Bottom and sideways DIN rail mounting slots
  • OPERATING ENVIRONMENT: Operating temperature: -40 °C to 75 °C / Operating humidity: 10% to 90% non-condensing / Ingress Protection Rating: IP30
  • EMC EMISSIONS & IMMUNITY: Standards: EN 55032:2015 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1 / ESD: EN 61000-4-2:2009 / Radiated Immunity: EN IEC 61000-4-3:2020 / EFT: EN 61000-4-4:2012 / Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017 / CS: EN 61000-4-6:2014 / DIP: EN 61000-4-11:2020
Quantity:
  • Add to Wishlist
  • Add to Compare

RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.

In the Box

  • Teltonika RUT200 Industrial Cellular Router
  • 9 W PSU
  • 2x Mobile Antennas
  • Wi-Fi Antenna
  • QSG (Quick Start Guide)
