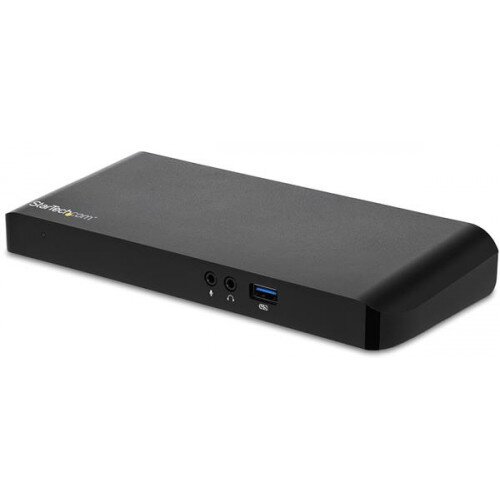

StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports
StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports Display Gallery Item 1
StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports - 2 Display Gallery Item 2
StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports - 3 Display Gallery Item 3
StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports - 4 Display Gallery Item 4
StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports - 5 Display Gallery Item 5
StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports - 6 Display Gallery Item 6
StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports - 7 Display Gallery Item 7

Grab StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports

By: StarTech

Model: MST30C2DPPD

Sku: M1AGG77NH3

Be the first to review this product

Sign up for price alert

PKR 104,299

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Bus Type: USB-C
  • Displays Supported: 2
  • Compatible Networks: 10/100/1000 Mbps
  • Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
  • Chipset ID: Cypress - CYPD1122-40, MegaChips - STDP4320, MegaChips - MCDP2850, Cypress - CYUSB3328-88LTXC, Cypress - CYUSB3610-68LTXC, Texas Instruments - PCM2912APJT
  • Industry Standards: USB Power Delivery Specification Rev. 2.0, USB Battery Charging Specification Rev. 1.2, DisplayPort 1.2 with MST, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1
  • Maximum Digital Resolutions: Single display - DisplayPort - 3840 x 2160 30Hz, Single Display - HDMI - 4096 x 2160 24Hz / 3840 x 2160 30Hz, Dual displays - 1x DisplayPort + 1x HDMI - 1920 x 1200 60Hz, Lower resolutions are also supported.
  • Connector Type(s); 2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female, 1 - DisplayPort (20 pin) Female, 1 - HDMI (19 pin) Female, 1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female, 2 - USB Type-A (9 pin) USB 3.0 Female, 1 - RJ-45 Female, 2 - 3.5 mm Mini-Jack (3 Position) Female
  • OS Compatibility: Windows 7, 8, 8.1, 10
  • System and Cable Requirements: A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
  • LED Indicators: 1 - Power (Green), 1 - RJ45 Link (Green/Amber), 1 - RJ45 Activity (Yellow)
  • ENVIRONMENTAL: Humidity: 5%~95% RH (Non-condensing), Operating Temperature: 5°C to 35°C (41°F to 95°F), Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • POWER: Center Tip Polarity: Positive, Input Current: 1.5 A, Input Voltage: 100 ~ 240 AC, Output Current: 4.5 A, Output Voltage: 20V DC, Plug Type: N, Power Consumption (In Watts): 90, Power Delivery: 60W, Power Source: AC Adapter Included
  • Ensure your laptop’s drivers, firmware, and operating system are up to date prior to using the docking station.
  • For a dual-monitor configuration, the Windows laptop must support MST.
  • A 4K-capable HDMI display is required to achieve 4K resolution
  • Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
  • Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery.
  • USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
  • Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
  • This docking station provides up to 60W of Power Delivery to charge your laptop. Some laptops may have specific charging requirements such as the full 60W for charging. In the event that your laptop is not charging, simply unplug any peripheral accessories attached to the dock’s USB-C port (on back of dock) and the USB 3.0 (Type-A) charging port (on front of dock) during charging. This will ensure the full 60 W of power is available for charging your laptop.
Quantity:
  • Add to Wishlist
  • Add to Compare

Enhance your productivity by turning your Windows based USB-C laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two monitors (1x HDMI and 1x DisplayPort) using one USB-C cable, with no setup of display drivers required, right out of the box. The USB-C dock provides 60W charging power, and four USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.

Create a Dual Monitor Workstation

This USB-C dock lets you connect dual monitors with flexible options, and with no display driver setup.

You can also connect to a single 4K HDMI or DisplayPort display. The included 3.3 ft. (1 m) long USB-C cable makes it easy to position your laptop and improves the video signal quality.

Connect Your Devices

Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.

USB Type-C dock gives you plenty of ports with four USB 3.0 ports, a reliable Gigabit Ethernet port and easy connection to the microphone and headset ports. Connect flash drives, keyboard, mouse or external hard drives using the three Type-A ports (including one Fast-Charge port). Connect a USB-C device with the USB-C port.

60W Charging Power

The USB C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.

  • Easily connect dual monitors (DisplayPort and HDMI) right out of the box, with no display driver setup
  • Connect your USB devices with 4 x USB 3.0 ports - 1x USB-C and 3x USB-A (including 1x Fast-Charge)
  • Power and charge your laptop with Power Delivery 2.0 (up to 60W)

In the Box

  • StarTech Dual-Monitor USB-C Dock for Windows 4x USB 3.0 Ports
  • USB-C cable [1 m/3.3 ft]
  • HDMI cable
  • Universal power adapter
  • 3 x Power cords
  • Quick-start guide
