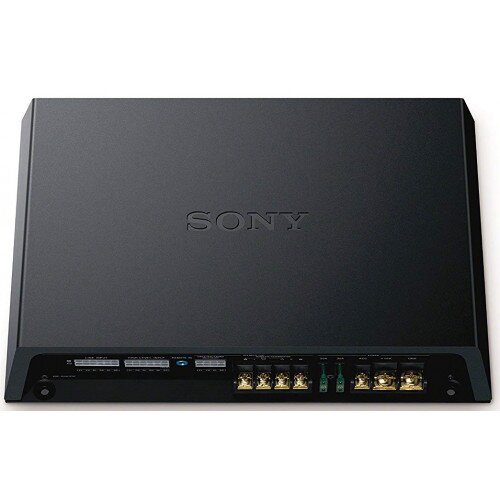

Sony 6/5 Channel Class-D Amplifier with DSP Price in Pakistan

By: Sony

Model: XM-GS6DSP

Sku: MXZZV7YB42

Availability: Out of stock New

Availability: Out of stock

  • INPUT: Line In/High Level (Speaker Level) Input
  • MOSFET: Output Stage/Power Supply
  • LINE IN: INPUT SENSITIVITY: 0.3-6 V (6ch input mode only)
  • CURRENT DRAIN (A) - RATED OUTPUT POWER AT 4 OHM: 36 A
  • GOLD PLATED CONNECTORS: Yes
  • SUBSONIC HIGH PASS FILTER; No
  • BASS BOOST: FREQUENCY (0 - 10 DB): Yes
  • FREQUENCY RESPONSE: 20-20 kHz (FRONT/REAR) 20-10 kHz (SUBWOOFER)
  • TOLERANCE: +0.5/-3 dB
  • SIGNAL TO NOISE RATIO: Rated Output: 100 dB/CTA Rated Output: 83 dBA (FRONT/REAR), 80 dBA (SUBWOOFER)
  • TOTAL HARMONIC DISTORTION AT 1 KHZ (%): Less than 0.08%
  • Maximum Output Power (1 kHz): MAX. CHANNEL CONFIGURATION AT 4 OHMS BTL (BRIDGE-TIED LOAD): 600 W (SUB), MAX. CHANNEL POWER CONFIGURATION AT 2 OHMS: 300 W × 2 (SUB), 1100 W × 1 (SUBWOOFER bridged), MAX. CHANNEL OUTPUT POWER CONFIGURATION AT 4 OHM: 100 W×4 (FRONT/REAR), 200 W×2 (SUBWOOFER)
  • Rated Output Power (14.4V, 20Hz-20kHz): 4 OHMS: 45 W × 4 (FRONT/REAR), 90 W × 2 (SUBWOOFER), 4 OHMS — BTL (BRIDGE-TIED LOAD): 350 W (SUBWOOFER) at 1 kHz, 2 OHMS: 175 W × 2 (SUBWOOFER) at 1 kHz, 600 W × 1 (SUBWOOFER bridged) at 1 kHz
  • CTA Rated Output Power: 4 OHMS: 45 W × 4 (FRONT/REAR), 90 W × 2 (SUBWOOFER), 4 OHMS — BTL (BRIDGE-TIED LOAD): 350 W (SUBWOOFER) at 1 kHz, 2 OHMS: 175W × 2 (SUB) at 1 kHz, 600 W × 1 (SUBWOOFER bridged) at 1 kHz
  • Amplifier: CHANNEL CONFIGURATION: 4.1ch, 6ch, HIGH PASS FILTER: Variable: FRONT (500-4 kHz), REAR (50-500 Hz), HIGH-PASS FILTER SLOPE12 dB/oct, LOW PASS FILTER: Variable: REAR (500-4 kHz), SUBWOOFER (50-500 Hz), LOW-PASS FILTER SLOPE: 12 dB/oct
  • DSP Functions with Sony l Music Center App: TIME ALIGNMENT: Yes (4.1ch), EQUALIZER: Yes (10-band), BALANCE/FADER: Yes
  • Bluetooth: VERSION: 3.0, SECURE SIMPLE PAIRING: Yes, PROFILE: A2DP, AVRCP
  • VOICE CONTROL: No
  • SONY | MUSIC CENTER (IOS): Yes
  • MICROPHONE: No
  • SONY | MUSIC CENTER (ANDROID): Yes
  • SIRI EYES FREE MODE: No
  • AUTO-PAIRING FOR IOS DEVICES: No
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Supercharging your car audio, behind the scenes

This powerful class-D amplifier boosts the sound of your factory-fitted car stereo, without changing the look of your dashboard.

6-channel class-D amplifier

Transform in-car sound with up to 780W RMS (1500 W max) of total power.

DSP with 4.1-channel time alignment

Control speaker setup, time alignment and sound settings.

Customized sound with app control

Personalize from your smartphone using Sony I Music Center.

Time Alignment optimizes sound for every seat

Wherever you sit in your car, you’ll be closer to some speakers than others, which affects how the music sounds. Time Alignment re-calibrates the signal so you’re always in the correct sound field for a more natural listening experience.

Customization at your fingertips

Pair your smartphone with the XM-GS6DSP and take charge of the sound. Adjust equalizer and speaker settings, volume levels and fader controls from the comfort of your seat with a simple touch of your smartphone screen.

Stream the music you love

Unleash your tracks and playlists. Stream music to your car stereo from all of your favorite apps with BLUETOOTH® wireless connection.

Power meets precision

With 6 channels of class-D amplification, the XM-GS6DSP drives a variety of speaker configurations. Fill your car with 45 W x 4 (4 Ω) of clean and dynamic sound plus 600 W (2 Ω bridged) of subwoofer power. All from a compact amp, with minimal interference for audio that’s crystal clear, even at its loudest.

Premium components

High-quality electrolytic capacitors at power input and output stages provide responsive bass. Premium inductors with low resistance OFC wire cut RF noise for a rich, lively sound.

Heavy duty aluminum case

A sturdy, heat sink-integrated aluminum case protects the amp during your drive, preventing unwanted vibrations so music stays stable and true.

Low and high pass filters

Highly customizable low and high pass filters can be applied across the system, allowing you to drive component high frequency tweeters and subwoofers, plus everything in between, all from the same amp.

Precision meets versatility

Install your amp under a seat or in the boot, then connect to your existing car radio. Select from a variety of speaker configurations to complete your new audio system, with easy set up to drive subwoofers and component speakers, as well as regular coaxial speakers.

Boost the sound of your existing car stereo without changing the look of your dashboard. The XM-GS6DSP transforms in-car sound with up to 780 W of power.

Front component 3-way speaker system with bridged subwoofer

5-ch output with time alignment

  • Channels 1 and 2 for the tweeters and mid-range speakers
  • Channels 3 and 4 for the woofers
  • Channels 5 and 6 bridged for the subwoofer (mono)

Front component 2-way speaker system with bridged subwoofer

5-ch output with time alignment

  • Channels 1 and 2 for the tweeters
  • Channels 3 and 4 for the woofers
  • Channels 5 and 6 bridged for the subwoofer (mono)

Front/rear coaxial speaker system with bridged subwoofer

5-ch output with time alignment

  • Channels 1 and 2 for the front coaxial speakers
  • Channels 3 and 4 for the rear coaxial speakers
  • Channels 5 and 6 bridged for the subwoofer (mono)

Front component 3-way speaker system

6-ch output with no time alignment

  • Channels 1 and 2 for the tweeters
  • Channels 3 and 4 for the mid range speakers
  • Channels 5 and 6 for the woofers

In the Box

  • Sony 6/5 Channel Class-D Amplifier with DSP
  • Connectors: Line In (RCA conversion) Connector
  • High Level Input Connector
  • Manual
