Protectli FW1 - 4 Port Intel J1900 - 4GB DDR3 - 16GB mSATA - Shop Now!

By: Protectli

Sku: 1D7VHWDWCI

PKR 47,099

& FREE Standard Delivery

PKR 57,599

& FREE Standard Delivery

PKR 59,699

& FREE Standard Delivery

PKR 78,499

& FREE Standard Delivery

PKR 59,699

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Intel Celeron J1900 Quad Core at 1.99GHz
  • 4 Intel Gigabit 82583V Ethernet NIC ports
  • Fanless and Silent
  • No pre-installed Operating System
  • Included VESA mount kit
  • Processor: CPUIntel Celeron Quad Core J1900 (64 Bit, 2.0 GHz, 4 Cores, 4 Threads, 2MB L2 Cache), GPUIntegrated Intel HD Graphics, AES-NINot Supported
  • Memory and Storage: RAM1x SO-DIMM DDR3L-1333, 1.35v, Max 8GB, Storage1x mSATA SSD, Max 1 TB, Optional Storage1x Internal SATA Header
  • External I/O: Networking4x Intel 82583V Gigabit Ethernet, RJ-45, USB1x USB 3.0, 1x USB 2.0, WirelessOptional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K), COM Port1x RJ45 COM Port, Display1x VGA, PowerInput 12V DC, Illuminated Power Button (Blue), Power Indicator1x Power LED (Green), Activity Indicator1x HDD Activity LED (Red)
  • Internal I/O: SATA1x Internal SATA Header, WirelessOptional 802.11b/g/n WiFi Kit (Protectli P/N: WAP01K), CPU Fan Header1x CPU Fan Header, Wireless Socket1x MINI PCIe only for optional Protectli WiFi Kit
  • Chassis Description: Fanless, Aluminum, Black
  • Mounting Options: Desktop, VESA
  • Max Power: 18W
  • Emissions: FCC Part 15
Quantity:
  • Add to Wishlist
  • Add to Compare

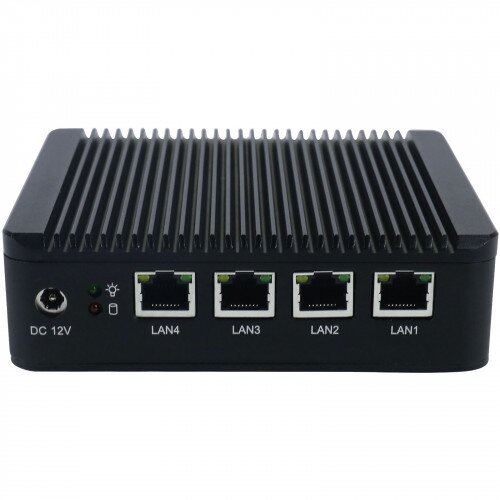

The Vault is a small form factor PC built for use as a firewall / router. The FW1 is based on a 4 network port design that leverages a low power (10Watts at idle CPU, 15Watts under moderate load), but versatile Intel Celeron J1900 CPU. The Vault uses standard Intel components (including Intel network ports) which results in compatibility with a variety of operating systems, including a number of open source firewall projects. The Vault is fanless so it has no moving parts, which results in an incredibly durable platform that can be used in less than ideal environments. Its all aluminum enclosure (no plastic here) is a giant heat sink, keeping the CPU cool. The enclosure also comes with pre-drilled holes for an available wireless kit

The FW1 can accommodate up to 8GB of DDR3L RAM and any available size mSATA storage drive

In the Box

  • Protectli FW1 - 4 Port Intel J1900
  • External Mounting Bracket
  • Power Supply
  • Power Cord
  • SATA Cables
  • Serial Cable
