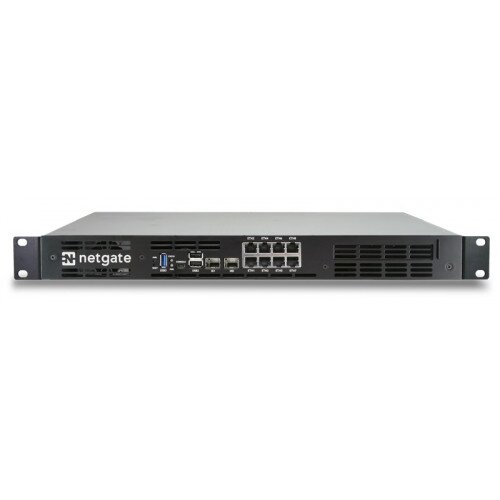

Netgate XG-7100 1U pfSense Security Gateway Appliance - 8GB DDR4 - 32GB eMMC Price in Pakistan

By: Netgate

Model: XG-7100-1U


Availability: Out of stock New

Availability: Out of stock

  • CPU: Intel Denverton C3558, 2.2 GHz
  • CPU Cores: Four Cores
  • Networking: 2x 10GbE Intel x553 SFP+ Ports, 8-port 1Gbps Marvell 88E6190 switch, uplinked at 5 Gbps (2x 2.5 Gbps) to Intel SoC for LAN, Virtual Machine Device Queues reduce I/O overhead, Note: Copper SFP/SFP+ not supported.
  • Storage: 32GB eMMC onboard, Additional storage via M.2 SSD
  • Memory: 8 GB DDR4 (expandable to 24GB via SODIMM)
  • Expansion: 1x PCI-E 3.0 x4 slot, 1x M.2 M-Key 2280 supported, 4x SATA3
  • Console Port: 1x mini-USB Console
  • USB Ports: 1x USB 3.0 ports, 2x USB 2.0 ports
  • LED: Power/Status/SATA Activity
  • Enclosure: 19" 1U Rack Mount
  • Form Factor: 1U 1.75" x 19" x 8.5" 1U Rack Mount
  • Power: 100-240V, 50-60Hz, 1.5-3A Internal Power Supply, AC Inlet: IEC320-C14 (3 PIN), Power Cord: NEMA 5-15P to IEC320-C13
Stock Request Notify When Available

The XG-7100 1U 19" rack mount system is a state of the art Security Gateway with pfSense software, featuring the 4 Core Intel Atom C-3558 processor with AES-NI to support a high level of I/O throughput and optimal performance per watt. This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at an excellent price per gigabit.


  • No artificial limits or add-ons required to make your system fully functional.
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Standard configuration with 8GB of RAM and 32GB storage.
  • Low power requirements to help save you money.
  • This system is designed for a long deployment lifetime.


  • From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Maximum Active Connections: 8,000,000 (more with additional RAM)


  • Manage pfSense settings through our web-based GUI.
  • No fumbling with a command line interface or typing arcane commands.


  • Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect securely, or connect to the Cloud!
  • Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.

In the Box

  • Netgate XG-7100 1U pfSense Security Gateway Appliance
