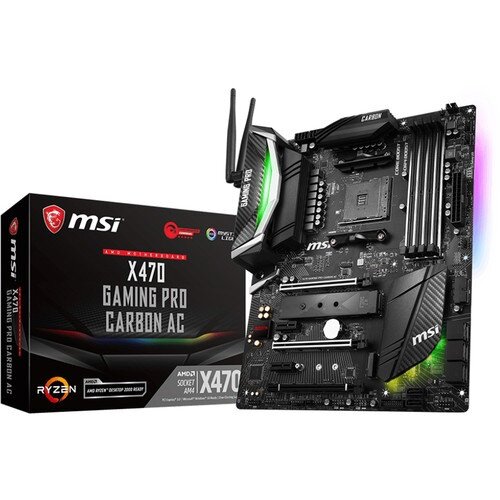

MSI X470 GAMING PRO CARBON AC Motherboard Price in Pakistan

By: MSI

Model: X470 GAMING PRO CARBON AC

Sku: TH7THQTRRP

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): RYZEN 7
  • SOCKET: AM4
  • CHIPSET: AMD® X470 Chipset
  • DDR4 MEMORY: 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC mode
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 64
  • PCI-E X16: 3
  • PCI-E GEN: Gen3(16,0) (8,8), Gen2(4)
  • SATAIII: 8
  • PCI-E X1: 2
  • M.2 SLOT: 2
  • RAID: 0/1/10
  • TPM (HEADER): 1
  • LAN: Intel I211AT
  • USB 3.1 PORTS(FRONT): 4(Gen1, Type A)
  • USB 3.1 PORTS (REAR): 1(Gen2, Type C), 1(Gen2, Type A), 4(Gen1, Type A)
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 2
  • AUDIO PORTS (REAR): Realtek® ALC1220 Codec
  • DISPLAYPORT: 1
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR: ATX
  • SLI: Y
  • CROSSFIRE: Y
  • OPERATING SYSTEM: Support for Windows 10 64-bitSupport for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
  • PROCESSOR: Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics Processors and AMD A-series / Athlon Processors for Socket AM4
  • CHIPSET: AMD X470 Chipset
  • MEMORY: 4 x DDR4 memory slots, support up to 64GB, Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE1, Dual channel memory architecture, Supports non-ECC UDIMM memory, Supports ECC UDIMM memory (non-ECC mode), A-series/ Athlon processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.
  • SLOTS: 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_3), Ryzen Desktop Processors support x16/x0, x8/x8 mode, Ryzen Desktop Processors with Radeon Vega Graphics and A-Series/Athlon Processors support x8/x0 mode, 1 x PCIe 2.0 x16 slot (PCI_E5, supports x4 mode)1, 2 x PCIe 2.0 x1 slots, PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
  • MULTI-GPU: Ryzen Desktop Processors, Supports 3-Way AMD CrossFire Technology, Supports 2-Way NVIDIA SLI Technology, Ryzen Desktop Processors with Radeon Vega Graphics and A-Series/Athlon Processors, Supports 2-Way AMD CrossFire Technology
  • STORAGE: AMD® X470 Chipset, 8 x SATA 6Gb/s ports1, 2 x M.2 ports (Key M)1, M2_1 slot (from AMD processor) supports PCIe 3.0 x4 (RyzenTM Desktop processors) or PCIe 3.0 x2 (A-series/ Athlon processors) 2242/ 2260 /2280/ 22110 storage devices, M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices2, SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
  • RAID: AMD X470 Chipset, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for NVMe storage devices
  • ONBOARD GRAPHICS: 1 x DisplayPort, support a maximum resolution of 4096x2160 60Hz1, 1 x HDMI 1.4 port, supports a maximum resolution of 4096x216030Hzz2, Only support when using Ryzen Desktop Processors with Radeon Vega Graphics & A-Series/ Athlon ProcessorsMaximum shared memory of 2048 MB
  • USB: AMD X470 Chipset, 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel, 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel, 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors, 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU, 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
  • WIFI & BLUETOOTH : Intel® Dual Band Wireless-AC 3168, Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed., Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 1 x M2_3 slot with E key (Wi-Fi mode)
  • LAN: 1 x Intel I211AT Gigabit LAN controller
  • INTERNAL CONNECTORS: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 8 x SATA 6Gb/s connectors, 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports), 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports), 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump-fan connector, 4 x 4-pin system fan connectors, 1 x TPM module connector, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 2 x 5050 RGB LED strip 12V connectors (JRGB1~2), 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1), 1 x CORSAIR connector (JCORSAIR1)
  • BACK PANEL PORTS: PS/2 Combo Port, DisplayPort, Wi-Fi / Bluetooth, USB 3.1 Gen1, LAN Port, Golden Audio Connectors, USB 2.0, HDMI Port, Clear CMOS button, USB 3.1 Gen2, Optical S/PDIF OUT
  • MOUNTING: 9 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit, Support for Windows 7 64-bit, To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Stock Request Notify When Available

GAME IN STYLE

Unlimited customization options and packed with exclusive gaming features, MSI PERFORMANCE GAMING motherboards offer the best possible gaming experience.

We are proud to be a part of the MSI GAMING testing program to help give gamers the best hardware to play games at the highest level.

IMMERSE YOURSELF INTO VIRTUAL WORLDS

Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

YOUR IN-GAME ADVANTAGE

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

STAY COOL WHILE GAMING

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!

DESIGNED FOR LIMITLESS TUNING

Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

BE THE FIRST ON THE BATTLEFIELD

This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.

PERSONALIZE YOUR GAMING RIG

Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

DOMINATE THE GAME WITH THE LOWEST LATENCY

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.

In the Box

  • MSI X470 GAMING PRO CARBON AC Motherboard
  • NVIDIA SLI Bridge
  • I/O Shield
