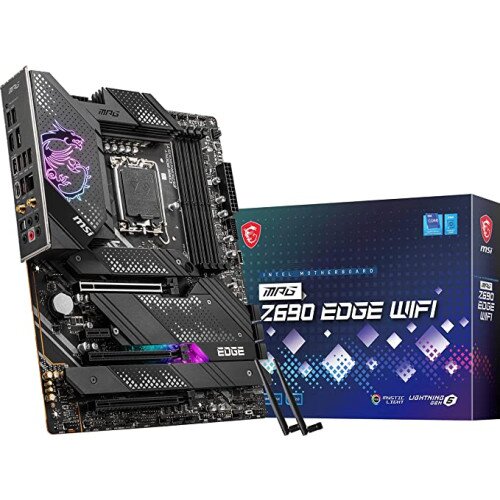

MSI MPG Z690 EDGE WIFI Motherboard
MSI MPG Z690 EDGE WIFI Motherboard Display Gallery Item 1
MSI MPG Z690 EDGE WIFI Motherboard - 2 Display Gallery Item 2
MSI MPG Z690 EDGE WIFI Motherboard - 3 Display Gallery Item 3
MSI MPG Z690 EDGE WIFI Motherboard - 4 Display Gallery Item 4
MSI MPG Z690 EDGE WIFI Motherboard - 5 Display Gallery Item 5

MSI MPG Z690 EDGE WIFI Motherboard Price in Pakistan

By: MSI

Model: MPG Z690 EDGE WIFI

Sku: RDCW4O1UPI

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): i9
  • SOCKET: 1700
  • CHIPSET: Intel Z690 Chipset
  • DDR5 MEMORY: 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 128
  • PCI-E X16: 3
  • SATAIII: 6
  • PCI-E X1: 1
  • M.2 SLOT: 4
  • RAID: 0/1/5/10
  • LAN: Intel I225-V 2.5G LAN
  • USB 3.2 PORTS (FRONT): 1(Gen 2, Type C), 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR): USB 3.2 PORTS (REAR)
  • WIFI & BLUETOOTH: Intel Wi-Fi 6E module
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 2
  • AUDIO PORTS (REAR): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
  • DISPLAYPORT: 1
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR: ATX
  • CROSSFIRE: Y
  • OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit
  • PROCESSOR: Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors 1, Processor socket LGA1700, Please go to intel.com for compatibility information
  • CHIPSET: Intel Z690 Chipset
  • MEMORY: 4x DDR5 memory slots, support up to 128GB1, Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1, Max. overclocking frequency: / 1DPC 1R Max speed up to 6400+ MHz, 1DPC 2R Max speed up to 5400+ MHz > 6000+ MHz, 2DPC 1R Max speed up to 4000+ MHz > 5600+ MHz, 2DPC 2R Max speed up to 4000+ MHz > 5600+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP), Please refer to www.msi.com for more information on compatible memory
  • EXPANSION SLOTS: 3x PCIe x16 slots, PCI_E1 slot (From CPU), Supports PCIe 5.0 x16, PCI_E3 & PCI_E4 slots (From Z690 chipset), Supports PCIe 3.0 x4, PCIe 3.0 x1 slot (From Z690 chipset
  • ONBOARD GRAPHICS: HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2, DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2, Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
  • MULTI-GPU: Supports AMD CrossFire Technology
  • STORAGE: 6x SATA 6Gb/s ports, SATA5~8 (From Z690 Chipset), SATAA~B (From ASMedia ASM1061), 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia, ASM1061), 4x M.2 slots (Key M), M2_1 slot (From CPU), Supports PCIe 4.0 x4, Supports 2260/ 2280/ 22110 storage devices, M2_2 slot (From Z690 Chipset), Supports PCIe 4.0 x4, Supports 2260/ 2280 storage devices, M2_3 slot (From Z690 Chipset), Supports PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, M2_4 slot (From Z690 Chipset), Supports PCIe 4.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, M2_2~4 support Intel Optane Memory, Supports Intel Smart Response Technology for Intel Core processors
  • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices1, Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices/ SATAA & SATAB do not support RAID function.
  • USB: Intel® Z690 Chipset, USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel, 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel), 2x USB 2.0 Type-A ports on the back panel, 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector, USB Hub-GL850G, 4x USB 2.0 ports available through internal connectors
  • AUDIO: Realtek ALC4080 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
  • LAN: Intel I225V 2.5Gbps LAN controller
  • WIFI & BLUETOOTH: Intel Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.22, FIPS, FISMA / Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors, 6x SATA 6Gb/s connectors, 4x M.2 slots (M-Key), USB 3.2 Gen 2 10Gbps Type-C port, USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 4-pin water-pump fan connector, 6x 4-pin system fan connectors, Front panel audio connector, 2x System panel connectors, Chassis Intrusion connector,TPM module connector, Clear CMOS jumper, Tuning controller connector, TBT connector (Supports RTD3)
  • LED FEATURE: 4-pin RGB LED connector, 3x 3-pin RAINBOW LED connectors, EZ LED Control switch, 4x EZ Debug LED
  • BACK PANEL PORTS: DisplayPort, 2.5G LAN, Wireless Antenna, Audio Connectors, Flash BIOS Button, USB 2.0, HDMI, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF Out
  • MOUNTING: 9 mounting holes
  • OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit
Stock Request Notify When Available

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

Automatically prioritizes games above other applications , Allows you to change applications' traffic priority , Allows you to customize bandwidth for each application

In the Box

  • MSI MPG Z690 EDGE WIFI Motherboard
