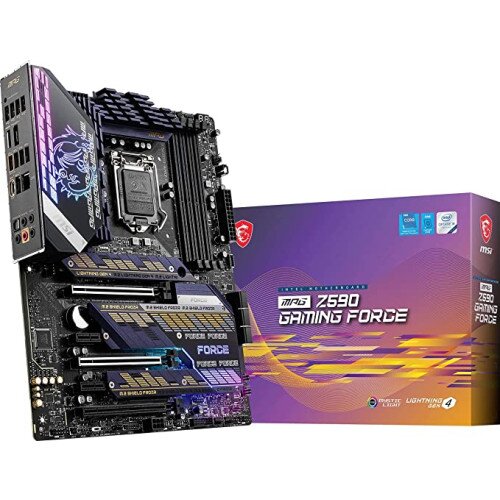

MSI MPG Z590 Gaming Force Motherboard
MSI MPG Z590 Gaming Force Motherboard Display Gallery Item 1
MSI MPG Z590 Gaming Force Motherboard - 2 Display Gallery Item 2
MSI MPG Z590 Gaming Force Motherboard - 3 Display Gallery Item 3
MSI MPG Z590 Gaming Force Motherboard - 4 Display Gallery Item 4
MSI MPG Z590 Gaming Force Motherboard - 5 Display Gallery Item 5

MSI MPG Z590 Gaming Force Motherboard Price in Pakistan

By: MSI

Model: MPG Z590 Gaming Force

Sku: LI3BZWY5ZG

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): i9
  • SOCKET: 1200
  • CHIPSET: Intel Z590 Chipset
  • DDR4 MEMORY: 5333(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 4
  • MAX MEMORY (GB): 128
  • PCI-E X16: 3
  • SATAIII: 6
  • PCI-E X1: 2
  • M.2 SLOT: 3
  • RAID: 0/1/5/10
  • LAN: 1x Intel I225-V 2.5G LAN
  • USB 3.2 PORTS (FRONT): 1(Gen 2, Type C), 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR): 1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 4
  • AUDIO PORTS (REAR): 5+ Optical S/PDIF (Realtek ALC4080 Codec)
  • DISPLAYPORT: 1
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR: ATX
  • CROSSFIRE: Y
  • OPERATING SYSTEM:Support for Windows 10 64-bit
  • PROCESSOR: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1, Processor socket LGA1200, Please go to intel.com for compatibility information
  • CHIPSET: Intel Z590 Chipset
  • MEMORY: 4x DDR4 memory slots, support up to 128GB1, Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR), Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR), Max overclocking frequency:/ 1DPC 1R Max speed up to 5333 MHz, 1DPC 2R Max speed up to 4700+ MHz, 2DPC 1R Max speed up to 4400+ MHz, 2DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP), Please refer to www.msi.com for more information on compatible memory, See supported memory
  • EXPANSION SLOTS: 3x PCIe x16 slots, Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, PCI_E1 & PCI_E3 slots (From CPU), Support PCIe 4.0 for 11th Gen Intel CPU, Support PCIe 3.0 for 10th Gen Intel CPU, PCI_E5 slot (From Z590 Chipset), Supports PCIe 3.0, 2x PCIe 3.0 x1 slots (From Z590 Chipset)
  • ONBOARD GRAPHICS: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2, 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2, Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
  • MULTI-GPU: Supports 3-Way AMD CrossFire Technology
  • STORAGE: 6x SATA 6Gb/s ports (From Z590 Chipset), 3x M.2 slots (Key M), M2_1 slot (From CPU), Available only on 11th Gen Intel CPU, Supports PCIe 4.0 x4, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_21 & M2_32 slot (From Z590 Chipset), Supports PCIe 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, Intel Optane Memory Ready3, Supports Intel Smart Response Technology for Intel Core processors, SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB: Intel Z590 Chipset USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel), 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector), 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector), Hub-GL850G/ 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)
  • AUDIO: Realtek ALC4080 Codec, 7.1-Channel High Definition Audio
  • LAN: Intel I225V 2.5Gbps LAN controller
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors, 6-pin PCIE power connector, 6x SATA 6Gb/s connectors, 3x M.2 slots (M-Key), USB 3.2 Gen 2 10Gbps Type-C port, USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 4-pin water-pump fan connector, 6x 4-pin system fan connectors, Front panel audio connector, 2x System panel connectors, Chassis Intrusion connector, Clear CMOS jumper, TPM module connector, TBT connector (supports RTD3), Tuning Controller connector
  • BACK PANEL PORTS: USB 2.0, DisplayPort, USB 3.2 Gen 1 5Gbps Type-A, 2.5G LAN, Audio Connectors, Flash BIOS Button, HDMI, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF Out
  • MOUNTING: 9 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

Automatically prioritizes games above other applications, Allows you to change applications' traffic priority, Allows you to customize bandwidth for each application

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

  • Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

In the Box

  • MSI MPG Z590 Gaming Force Motherboard
