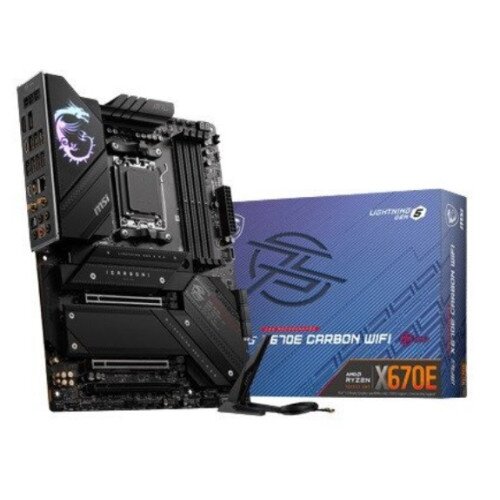

MSI MPG X670E CARBON WIFI Motherboard Price in Pakistan

By: MSI

Model: MPG X670E CARBON

Sku: ZLL6BJF587

PKR 188,999

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • CHIPSET: AMD X670
  • CPU SUPPORT: Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
  • MEMORY: 4x DDR5, Maximum Memory Capacity 128GB
  • ONBOARD GRAPHICS: HDMI, Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz, Display Port, Support DP 1.4, maximum resolution of 4K 60Hz, Type-C Display port, Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz, Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • EXPANSION SLOT: 3x PCI-E x16 slot, Supports x16/x0/x4, x8/x8/x4, PCI_E1 PCIe 5.0 supports up to x16 (From CPU), PCI_E2 PCIe 5.0 supports up to x8 (From CPU), PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
  • MULTI-GPU: Supports AMD MULTI-GPU
  • STORAGE 4x M.2 slot, M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 6x SATA 6G port
  • RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
  • LAN: Realtek RTL8125BG 2.5Gbps LAN
  • WIRELESS / BLUETOOTH: AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands, Supports 802.11 a/ b/ g/ n/ ac/ ax/ Supports Bluetooth 5.2/ Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11., Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
  • USB 2x USB 2.0 ports (Rear), 4x USB 2.0 ports (Front), 4x USB 3.2 Gen1 Type A ports (Front), 6x USB 3.2 Gen2 Type A ports (Rear), USB 3.2 Gen2 Type C ports (Rear), USB 3.2 Gen2 Type C ports (Front), USB 3.2 Gen2x2 Type C ports (Rear)
  • AUDIO: Realtek ALC4080 Codec 7.1-Channel High Definition Audio, Supports S/PDIF output, Supports up to 32-Bit/384 kHz playback on front panel
  • INTERNAL I/O: Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), CPU Fan, Pump Fan, 5x System Fan, 2x Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), Thermal Sensor connectors(T_SEN), Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), RGB LED connector(JRGB), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, USB 3.2 Gen2 Type C ports
  • LED FEATURE: EZ LED Control switch, 4x EZ Debug LED, 2-Digit Debug Code LED
  • BACK PANEL PORTS: Clear CMOS Button, Flash BIOS Button, DisplayPort, USB 2.0, 2.5G LAN, Audio Connectors, Smart Button, HDMI, USB 3.2 Gen 2 10Gbps (Type-C Display port), USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2x2 20Gbps (Type-C), Wireless / Bluetooth, S/PDIF-Out,
  • OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit
Quantity :

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Direct Touch Heat-pipe

Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Enhanced M.2 Thermal

Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSDs safe while preventing throttling.

Enlarged PCH Heatsink

The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

AUDIO BOOST 5

  • HIGH DEFINITION ALC4080 AUDIO PROCESSOR
  • HIGH QUALITY AUDIO CAPACITORS
  • HIGH QUALITY AUDIO JACKS WITH S/PDIF
  • DEDICATED HEADPHONE AMPLIFIER
  • ISOLATED AUDIO SIGNAL
  • DE-POP PROTECTION

18+2+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a premium VRM design built with a total of 18+2+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MPG X670E CARBON WIFI is ready for the challenge of high-end processors.

DIGITALL POWER DESIGN

A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

  • 8 PCB layers
  • IT-170 Server-grade PCB material
  • 2oz Thickened Copper

1-SECOND OVERCLOCKING!

MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

LOAD-LINE CALIBRATION

What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

OVERVOLTAGE PROTECTION

Prevents potential short-circuit damage to the CPU and other critical components.

SCREWLESS M.2

The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.

EZ M.2 CLIP

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

USB FRONT TYPE-C

MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG X670E CARBON WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Mystic Light

Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

True Color

Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

User Scenario

One click for setting your computer, even customize own profile as your preference.

Hardware Monitoring

Get immediate access to your critical hardware information in real-time.

Profile Setting

Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.

Fan Center

Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.

System Diagnosis

Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.

EXCLUSIVE UI OF AIDA64 EXTREME

MSI motherboards provide 60 days free trail of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

RESIZABLE BAR

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

GLOW YOUR PC

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

A-RAINBOW V2

Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.,Gen2 device only supports 7 RGB themes

RGB

Supports 12V RGB devices.

AMBIENT DEVICES

Synchronize lighting theme with compatible lighting devices.

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Supports DDR5 Memory
  • Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
  • DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
  • 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

In the Box

  • MSI MPG X670E CARBON WIFI Motherboard
