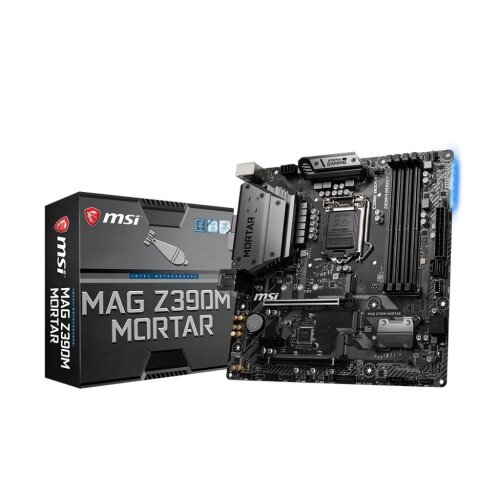

MSI MAG Z390M MORTAR LGA 1151 Motherboard Price in Pakistan

By: MSI

Model: MAG Z390M MORTAR

Sku: 2GW84CGS0N

Availability: Out of stock New

Availability: Out of stock

  • PROCESSOR: Supports 9th/ 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
  • CHIPSET: Intel Z390 Chipset
  • MEMORY: 4 x DDR4 memory slots, support up to 128GB, Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP)
  • SLOTS: 2 x PCIe 3.0 x16 slots (support x16/x4 modes), PCIe 3.0 x1 slots, M.2 slot (Key E) for an Intel CNVi wireless module only
  • ONBOARD GRAPHICS: DVI-D port, supports a maximum resolution of 1920x1200 60HzHDMI port 1.4, supports a maximum resolution of 4096x2160 24HzDisplayPort port 1.2, supports a maximum resolution of 4096X2304 60Hz
  • MULTI-GPU: Supports 2-Way AMD CrossFire Technology
  • STORAGE: Intel Z390 Chipset, 4 x SATA 6Gb/s ports, 2 x M.2 slots (Key M), M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices, M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices, Intel Optane Memory Ready
  • RAID: Intel Z390 Chipset, Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
  • USB: Intel Z390 Chipset, 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector), 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector, 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector)
  • AUDIO: Realtek ALC892 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
  • LAN: Intel I219-V Gigabit LAN controller
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 8-pin ATX 12V power connector, SATA 6Gb/s connectors, USB 3.1 Gen2 Type-C port, USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports), 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 4-pin CPU fan connector, 4-pin Water Pump connector, 2 x 4-pin system fan connectors, Front panel audio connector, 2 x Front panel connectors, 2 x 4-pin RGB LED connectors, Thunderbolt add-on card connector, TPM module connector, Chassis Intrusion connector, Clear CMOS jumper,
  • BACK PANEL PORTS: PS/2 Combo Port, DisplayPort, LAN Port, USB 3.1 Gen2 Type A, HD Audio Connectors, USB 2.0 Ports, DVI-D Port, HDMI Port, USB 2.0 Ports, USB 3.1 Gen2 Type C, Optical S/PDIF OUT
  • MOUNTING: 8 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Military style with Extended heatsink design for better thermal solution, Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector

  • Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Intel CNVi Ready: Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection
  • Lightning Fast Game experience: 2x Turbo M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 GEN2
  • Set Core Power Free: Extended Heatsink Design, Core Boost, Game Boost, DDR4 Boost
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

HARDWARE

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue.

BIOS AND SOFTWARE

Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.

Cooling

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

Compatibility

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

ENHANCED PERFORMANCE

ENHANCED PERFORMANCE MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

CPU

High-quality power supply components and intelligent fans optimize CPU cooling performance, which is a key factor in ensuring stable and high-speed operation of the system.

Storage

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

USB

Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s

MEMORY

Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.

IN-GAME ADVANTAGE

MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.

CONNECTIVITY

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

Audio

Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.

MYSTIC LIGHT

Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life. Choose from millions of colors and sync across compatible devices.

Industrial Design

MAG series motherboards are focused on functionality and durability. Descended from MSI Arsenal GAMING, these motherboards take their likeliness from rugged military equipment and are ready for battle.

LOYAL COMRADE

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Components

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

In the Box

  • MSI MAG Z390M MORTAR LGA 1151 Motherboard
  • I/O Shield
  • SATA Cable
