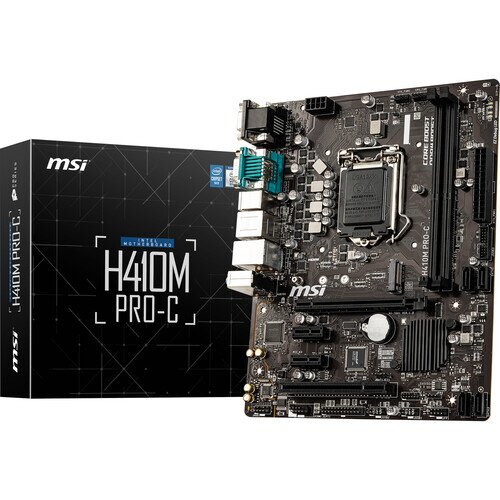

MSI H410M PRO-C Motherboard Price in Pakistan

By: MSI

Model: H410M PRO-C

Sku: SAC7F7B8R2

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): i9
  • SOCKET: 1200
  • CHIPSET: Intel H410 Chipset
  • DDR4 MEMORY: 2933(Max)/ 2666/ 2400/ 2133 MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 2
  • MAX MEMORY (GB): 64
  • PCI: 1
  • PCI-E X16: 1
  • PCI-E GEN: Gen3
  • SATAIII: 4
  • PCI-E X1: 2
  • M.2 SLOT: 1
  • TPM (HEADER): 1
  • LAN: Intel I219V Gigabit LAN
  • USB 3.2 PORTS (FRONT): 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR): 2(Gen 1, Type A)
  • USB 2.0 PORTS (FRONT): 4
  • USB 2.0 PORTS (REAR): 2
  • SERIAL PORTS(FRONT): 1
  • SERIAL PORTS (REAR): 1
  • AUDIO PORTS (REAR): Realtek ALC892/ALC897
  • DISPLAYPORT: 1
  • DVI-D: 1
  • VGA: 1
  • HDMI: 1
  • DIRECTX: 12
  • FORM FACTOR Mirco-ATX:
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • PROCESSOR: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket, Please go to www.intel.com for more compatibility information, Onboard graphics output are disabled when using F SKU processors
  • CHIPSET: Intel H410 Chipset
  • MEMORY: 2x DDR4 memory slots, support up to 64GB, Intel Core i7/ i9, Supports up to DDR4 2933 MHz, Intel Core i5 and below, Supports up to DDR4 2666 MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP), Please refer www.msi.com for more information on compatible memory
  • EXPANSION SLOT: PCIe 3.0 x16 slot (From CPU), 2x PCIe 3.0 x1 slots (From PCH), PCI slot(From PCH), When installing devices in PCI_E2 and PCI1 slots at the same time, PCI_E2 slot will be unavailable.
  • ONBOARD GRAPHICS: HDMI 1.4 port, supports a maximum resolution of 4096x2160 30Hz, DisplayPort port, supports a maximum resolution of 4096x2304 60Hz, VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, DVI-D port, supports a maximum resolution of 1920x1200 06Hz
  • STORAGE: Intel H410 Chipset: 4x SATA 6Gb/s ports, M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, M2_1 slot supports 2242/ 2260 /2280 storage devices, SATA1 will be unavailable when installing M.2 SATA SSD in the M.2_1 slot.
  • USB: Intel H410 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector), 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • Realtek LC892-VD Codec: 7.1-Channel High Definition Audio
  • LAN: Intel I219V Gigabit LAN controller
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 8-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (support additional 4 USB 2.0 ports, 4-pin CPU fan connector, 4-pin system fan connector, front panel audio connector, 2x system panel connectors, parallel port connector, serial port connector, Chassis Intrusion connector, Clear CMOS jumper, TPM module connector
  • BACK PANEL PORTS: VGA, COM Port, Mouse, USB 2.0, LAN, DVI-D, DisplayPort, Keyboard, HDMI, USB 3.2 Gen 1 5Gbps Type-A, Audio Connectors
  • MOUNTING: 6 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • >
Stock Request Notify When Available

MAKE YOUR PC MORE THAN YOU THINK

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

SECURE BOOT

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.

TPM SUPPORT

The TPM (Trusted Platform Module) enhances security above and beyond the capabilities of consumer software, which is also used to keep your PC running well. MSI PRO series motherboards support TPM to enable a deeper and broader level of security coverage.

OVERVOLTAGE PROTECTION

To prevent an damage from unexpected high voltage power, MSI PRO motherboards are designed with optimized circuit and high quality components.

HUMIDITY PROTECTION

Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.

HIGH TEMPERATURE PROTECTION

All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.

CIRCUIT PROTECTION

Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.

ESD PROTECTION

Each and every I/O port is protected against the hazards of Electro Static Discharge.

EMI PROTECTION

All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

VGA ARMOR: REINFORCED PCI EXPRESS SLOT

With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.

LOW LATENCY GAMING LAN POWERED BY INTEL

Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

/
  • Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality

In the Box

  • MSI H410M PRO-C Motherboard
