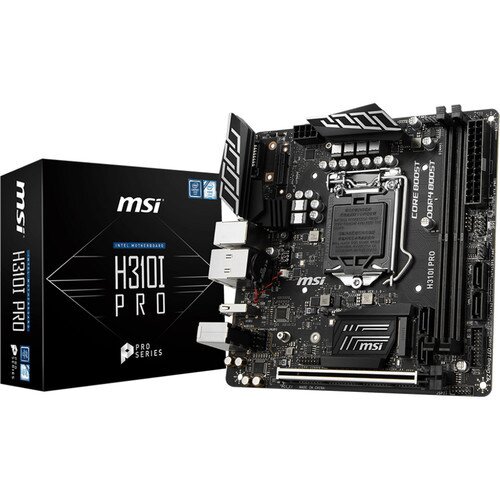

MSI H310I PRO Motherboard Price in Pakistan

By: MSI

Model: H310I PRO

Sku: 6BPTCTGUWD

Availability: Out of stock New

Availability: Out of stock

  • CPU (MAX SUPPORT): i7
  • SOCKET: 1151
  • CHIPSET: Intel H310 Chipset
  • DDR4 MEMORY: 2666/ 2400/ 2133 MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 2
  • MAX MEMORY (GB): 32
  • PCI-E X16: 1
  • PCI-E GEN: Gen3
  • SATAIII: 4
  • M.2 SLOT: 1
  • TPM (HEADER): 1
  • LAN: 10/100/10001
  • USB 3.1 PORTS(FRONT): 2(Gen1, Type A)
  • USB 3.1 PORTS (REAR): 2(Gen1, Type A)
  • USB 2.0 PORTS (FRONT): 2
  • USB 2.0 PORTS (REAR): 3
  • AUDIO PORTS (REAR): Realtek ALC887 Codec
  • DISPLAYPORT: 1
  • DVI-D: 1
  • DIRECTX: 12
  • FORM FACTOR: mini-ITX
  • OPERATING SYSTEM: Support for Windows 10 64-bit
  • PROCESSOR: Supports 8th Gen Intel Core processors, and Intel Pentium Gold and Celeron processors for Socket LGA1151
  • MEMORY: 2 x DDR4 memory slots, support up to 32GB, Supports DDR4 2666/ 2400/ 2133 MHz, Dual channel memory architecture, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP)
  • SLOTS: PCIe 3.0 x16 slot
  • ONBOARD GRAPHICS: DVI-D port, supports a maximum resolution of 1920x120060Hz, DisplayPort, supports a maximum resolution of 4096X230460Hz
  • STORAGE: Intel H310 Chipset: 4 x SATA 6Gb/s ports, M.2 slot (Key M), Supports up to PCIe 2.0 x4 and SATA 6Gb/s, 2260/ 2280 storage devices, SATA4 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
  • USB: Intel H310 Chipset: 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector), 5 x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 2 ports available through the internal USB connector)
  • Realtek ALC887 Codec: 7.1-Channel High Definition Audio
  • LAN: Realtek RTL8111H Gigabit LAN controller
  • INTERNAL CONNECTORS: 24-pin ATX main power connector, 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports), USB 2.0 connector (supports additional 2 USB 2.0 ports), 4-pin CPU fan connector, 4-pin system fan connector, 2 x Front panel connectors, Front panel audio connector, TPM module connector, Chassis Intrusion connector, Clear CMOS jumper: 4 x EZ Debug LED
  • BACK PANEL PORTS: Display port: PS/2 Combo Port: LAN Port: USB 2.0 Port: HD Audio Connectors: DVI-D Port: USB 2.0 Port: USB 3.1 Gen1
  • MOUNTING: 4 mounting holes
  • OPERATING SYSTEM: Support for Windows 10 64-bit
Stock Request Notify When Available
  • Supports 8th Gen Intel Core / Pentium Gold / Celeron Processors for LGA 1151 socket
  • DDR4 Boost : Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • Audio Boost : Reward your ears with studio grade sound quality.
  • M.2: Running at PCI-E Gen2 x4 maximizes performance for NVMe based SSDs.
  • EZ Debug LED: Easiest way to troubleshoot.
  • PCI-E Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
  • X-Boost : Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
  • Core Boost : With premium layout and fully digital power design to support more cores and provide better performance.

Heavy plated heatsinks

Leading heatsinks design, for maximum cooling

DDR4 Boost

Optimized traces and isolated memory circuitry

M.2

NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4

PCI-E Steel Armor

Protecting VGA cards against bending and EMI

Audio Boost

Reward your ears with studio grade sound quality.

BUILT FOR CONTENT CREATORS AND PROFESSIONALS

This motherboard is designed to fully utilize the Intel Coffee Lake 6 core processors, ready to deliver world class performance when gaming.

MAKING YOUR LIFE EASIER IS OUR BUSINESS

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

QUALITY & PROTECTION

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference to provide a pure and reliable signal for the best performance, even when turning it up a notch.

ULTIMATE MOTHERBOARD PROTECTION

We’ve made sure you can enjoy your system endlessly. MSI motherboards feature Double ESD protection with double layer grounding around the motherboard mounting holes, preventing Electrostatic discharge (ESD) surges from damaging the motherboard.

COMPONENTS CHOSEN BY ONLY HIGH QUALITY AND STABILITY

MSI uses components with the latest evolution of the industries’ highest quality standard. MSI quality approved components are shielded with the best protection and make sure your system run smoothly under the most extreme gaming conditions.

WINDOWS 10 CERTIFIED

With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

TUNING

DESIGNED FOR LIMITLESS TUNING

Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU

OVERVOLTAGE PROTECTION

Prevents potential short-circuit damage to the CPU and other critical components.

EZ DEBUG LED

Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

STORAGE

BE THE FIRST TO BOOT UP IN THE MORNING

This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity.

M.2

Enjoy a blazing fast system boot up and insanely quick loading of applications and data. M.2 is the successor to mSATA, maximizing SSD performance with increasing speed up to 20Gb/s.

XBOOST YOUR STORAGE PERFORMANCE

This great little tool is very simple to use and automatically detects your storage devices connected to the system. When enabled, X-Boost optimizes your SSDs to keep your system fast and maximize storage performance, saving you a lot of time when loading or transferring data.

SATA MASS STORAGE

We made sure each MSI motherboard comes with enough SATA ports to connect loads of HDDs for long term storage of large files and system backups.

DISPLAY

ENJOY THE LATEST VIDEO STANDARDS

Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.

LEGACY DVI VIDEO SUPPORT

Professional monitors, TVs, beamers and other displays, are all supported by the DVI-D output on MSI motherboard. No matter what screen type you want to connect, using a dedicated graphics card or an onboard connector, MSI motherboards have you covered.

4K UHD(60HZ)

Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards.

DISPLAY PORT 1.2

This motherboard is equipped with DisplayPort 1.2 supporting the latest 4K Ultra-HD 4096×2160p resolution 60Hz to provide an unprecedented breathtaking visual experience.

COOLING

STAY COOL

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.

FULLY CONTROLLABLE FAN HEADERS

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

DC OR PWM MODE WITH HYSTERESIS

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

TOTAL CONTROL IN BIOS AND SOFTWARE

Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

NETWORK

STABLE, SECURE & FAST NETWORKING

Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.

ENHANCED STABILITY WITH OPTIMIZED MEMORY LAYOUT

Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

EASY XMP

Enable Intel Extreme Memory Profile with ease using a single option in the BIOS to gain performance and create a perfectly stable system.

USB

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

X-BOOST YOUR USB PERFORMANCE

When enabled, X-Boost optimizes your devices for even better transfer speeds, saving a lot of time when transferring data. This handy tool is very easy to use and automatically detects & optimizes the USB devices connected to your system.

SUPER CHARGE YOUR PHONE & BATTERY-POWERED GEAR

MSI Super Charger USB ports charge any connected device faster. It delivers more power than regular USB ports to your smartphone, tablet, USB peripherals or other battery-powered gear.

DOUBLE ESD PROTECTION

Never worry about damage caused by defective USB devices. The USB ports on MSI motherboards are shielded by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

SOFTWARE

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

X-BOOST YOUR STORAGE

This unique and exclusive software allows you to boost the performance of any storage or USB device connected to your system. Simply use X-BOOST’s Easy or Advanced mode to tune your system speed increased, higher system responsiveness and faster loading of data.

TAKE COMMAND OF YOUR SYSTEM

MSI’s Command Center software is the perfect tool to get the most out of your motherboard. With an intuitive interface, Command Center allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.

ALWAYS UP-TO-DATE

Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your game.

"...the best update package available on any motherboard." - Anandtech

SSD NOT FAST ENOUGH? TRY MSI RAMDISK

MSI motherboards include RAMDisk, allowing you to create a virtual drive from your system RAM memory. Instantly load your software, speed up your browser or your page file to significantly speed up your system!

INSTANT SYSTEM STARTUP WITH MSI FAST BOOT & GO2BIOS

With the latest operating systems supporting UEFI fast booting methods, we have added a “Fast Boot” option to take full advantage of this. Simply enable “Fast Boot” either in the BIOS or with the convenient application for faster boot times.

Avoid having to mash your DEL/F2 button to get into the BIOS with the Go2BIOS button in the MSI Fast Boot application. Your PC will automatically go to the BIOS on the next reboot for quick. Some models even have an onboard Go2BIOS button.

CPU-Z MSI GAMING EDITION

MSI has worked closely with the CPUID team to develop a special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information of your system’s key components, like CPU speed, Memory speed and timings, motherboard BIOS version and much more.

BIOS

A USER-FRIENDLY BIOS

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance.

EASY MODE FOR QUICK TWEAKS

When you just want to get back to work, EZ-mode presents you with basic BIOS settings and functions for some quick adjustments. If you feel like spending more time fine-tuning options to boost your system’s performance, the Advanced mode is the way to go.

EASY SEARCH & FAVORITES

Can't find a specific BIOS setting? Don’t worry, a permanent search option in the top right corner can be used to find what you need. Want quick access to important settings? My Favorites gives easy access to selected Favorite settings, supporting up to 5 groups of Favorites.

HOTKEY FOR FLASH BIOS

Updating your motherboard BIOS will not be a nightmare anymore. MSI motherboards are easily for entering Flash BIOS menu, just press CTRL+F5 and one click for updating your motherboard BIOS.

HARDWARE MONITOR WITH FAN CONTROL

Hardware monitor lets you take control of your system and check your primary system vitals in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

MAKE YOUR SSD AS FAST AS NEW WITH SECURE ERASE+

When using an SSD, its performance will slowly decrease over time as more and more data is written onto it. This will slow down Read/Write speeds and increase access times of your SSD, making your system feel sluggish. Using an optimized formatting algorithm, Secure Erase+ lets you enjoy your SSD at maximum speed, making your system feel brand new!

In the Box

  • MSI H310I PRO Motherboard
