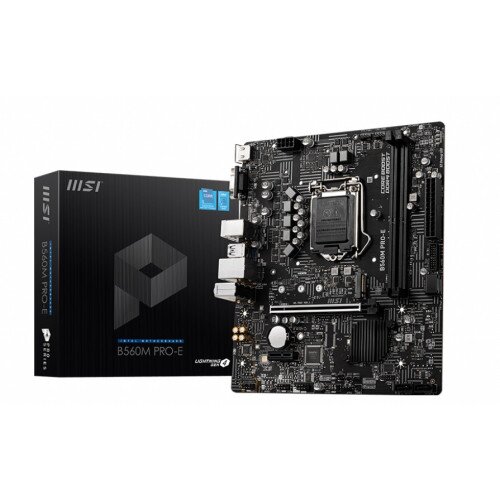

MSI B560M PRO-E Motherboard Price in Pakistan

By: MSI

Model: B560M PRO-E

Sku: OVC24QYCSD

Availability: Out of stock New

Availability: Out of stock

  • Supports 10th Gen Intel Core , 11th Gen Intel Core , Pentium Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience : PCIe 4.0
  • Turbo M.2 : Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost : Reward your ears with studio grade sound quality
  • Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
  • CPU (MAX SUPPORT): i9
  • SOCKET: 1200
  • CHIPSET: Intel B560 Chipset
  • DDR4 MEMORY: 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
  • MEMORY CHANNEL: Dual
  • DIMM SLOTS: 2
  • MAX MEMORY (GB): 64
  • PCI-E X16: 1
  • PCI-E GEN: Gen4
  • SATAIII: 4
  • PCI-E: 1
  • M.2 SLOT: 1
  • TPM (HEADER): 1
  • LAN: Intel I219V Gigabit LAN controller
  • USB 3.2 PORTS (FRONT): 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR): 2(Gen 1, Type A)
  • USB 2.0 PORTS (FRONT): 2
  • USB 2.0 PORTS (REAR): 4
  • SERIAL PORTS(FRONT): 1
  • AUDIO PORTS (REAR): Realtek ALC897 Codec
  • VGA: 1
  • HDMI: 1
  • FORM FACTOR: MATX
  • OPERATING SYSTEM: Support for Windows 10 64-bit
Stock Request Notify When Available

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

AUTODETECT DC OR PWM MODE WITH HYSTERESIS

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

LOW LATENCY GAMING LAN POWERED BY INTEL

Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI LAN MANAGER

Allows you to change applications' traffic priority

Allows you to customize bandwidth for each application

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

DEDICATED HIGH DEFINITION AUDIO PROCESSOR

Make sure you enjoy the purest sound quality in both stereo and surround sound.

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HD AUDIO CONNECTORS

Keep you sound perfect by transmit your aduio with pure digital signal.

ISOLATED AUDIO DESIGN

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

True Color

Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

Live Update

Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your work.

User Scenario

User Scenario

Hardware Monitor

Get immediate access to your critical hardware information in real-time.

Total Fan Control

Assume complete control of your fans with Total Fan Control. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.

Product Registration

Register your MSI product to enjoy a host of benefits!

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

CREATOR GENIE

Quickly overclock your CPU with a single button for more performance.

XMP

Choose from a preset XMP profile and automatically overclock compatible DDR memory.

M-FLASH

Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR

Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT

Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES

A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

RESIZABLE BAR (RE-SIZE BAR)

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

In the Box

  • MSI B560M PRO-E Motherboard
