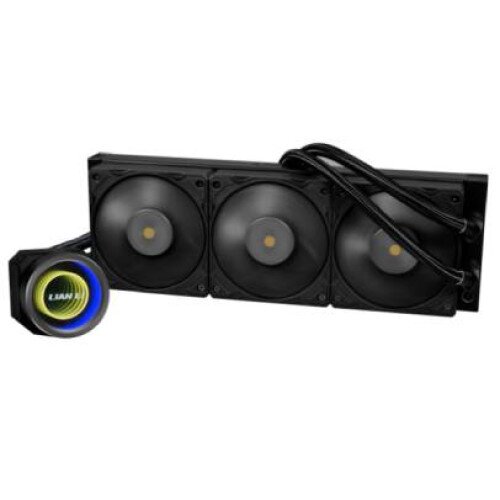

Galahad II Trinity Performance pump is larger than the regular one so that it accommodates upgraded components to efficiently cool the CPU.
11% larger To prevent substance buildup over time.
15% bigger To deliver water efficiently
31% faster To gain stronger water flow
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center. (90° Rotatable)
An entirely shining pump cap that brings the most vivid lighting to your build.
The combination of the diffuser and infinity mirror creates the sinkhole effect.
The 32mm thick radiators feature a double-wave radiator fin design of 19 FPI which provides more surface area to dissipate heat with a high performance fan.
The double-stack radiator fins provide better heat dissipation due to the enlarged surface area. However, the increased density also requires a more performance-oriented fan. These high-performance LCP fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. Just like the UNIFAN P28, this 120mm fan is 28mm in thickness and features a copper shield bearing for high RPM stability and quiet operations.
Two modes of fan speed can be set with the included fan speed controller to meet different usage needs:
H - 6.99 mmH2O, L - 4.15 mmH2O
H - 109.6 CFM, L - 81.9 CFM
H – Performance oriented with maximum speed at 200~3000 RPM
L – Noice optimized with maximum fan speed at 200~2300 RPM
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
Top Mount
Side Mount
Front Mount
To make things even better, it also comes with a leather strap to help with organizing the tubes.
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.
Control and preview with precision the lighting effect and real time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.
Connect an ARGB device or fan for control via L-Connect 3
Required for motherboard sync (No need to use if only using L-Connect)
For power
Plug into a motherboard 9-pin USB header for L-Connect 3 support
Required for RPM control
