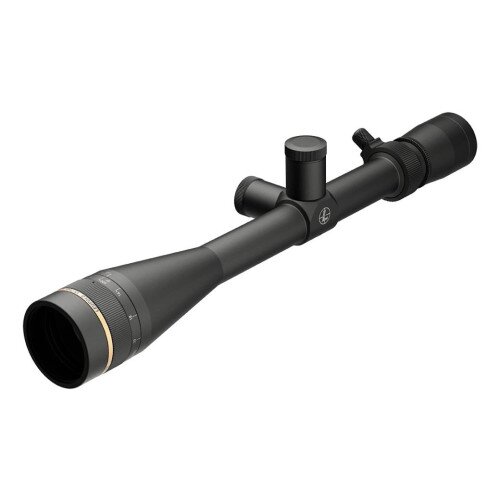

Leupold VX-3HD 6.5-20X40 EFR CDS-T Fine Duplex Rifle Scope - Shop Now!

By: Leupold

Model: 182502

Sku: XOICEEV6LU

Availability: Out of stock New

Availability: Out of stock

  • Based on our Duplex style design
  • Thinner posts and crosshairs
  • Better for precision shots
  • Makes small target acquisition easier
  • Rear (second) focal plane
  • Badge: New
  • Adjustable Parallax: Side Focus
  • BDC Dial Included: No
  • Custom Dial Compatible: Yes
  • Daylight Bright Illumination: No
  • Elevation Adjustment Type: CDS-T
  • Electronic Reticle Level: No
  • Guard-ion Lens Coating: No
  • Illuminated: No
  • Locking Dial: No
  • Magnification Type: Variable
  • Motion Sensor Technology (MST): No
  • Nightvision Compatible Illumination: No
  • Reticle Focal Plane: Second Focal Plane
  • Revolution Indicator: Yes
  • Reticle: Fine Duplex
  • Rezero Type: Set Screw
  • Reticle Type: Second Focal Plane
  • Side Focus: No
  • Elevation Adjustment Value per Click: 1/4MOA
  • Elevation Adjustment Range (MOA): 45
  • Elevation Adjustment Range (MIL): 13.1
  • Elevation Adjustment Range (cm @ 100m): 130.9
  • Elevation Adjustment Per Revolution: 15 MOA
  • Elevation Dial Travel Limit: Total Scope Travel
  • Windage Adjustment Value per Click: 1/4MOA
  • Windage Adjustment Range (MOA): 45
  • Windage Adjustment Range (MIL): 13.1
  • Windage Adjustment Range (cm @ 100m): 130.9
  • Windage Adjustment Per Revolution: 15 MOA
  • Magnification Max: 20
  • Magnification Min: 6.5
  • Objective Lens Diameter (mm): 40
  • Linear FOV Low Mag (ft@100yds): 14.3
  • Linear FOV High Mag (ft@100yds): 5.5
  • Angular FOV Low Mag (Degrees): 2.7
  • Angular FOV High Mag (Degrees): 1.1
  • Eye Relief Low Mag (in): 4.4
  • Eye Relief High Mag (in): 3.6
  • Minimum Parallax-Free Distance (yd): 10
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The VX-3HD 6.5-20x40mm delivers legendary performance in an incredibly tough and lightweight package. It's the perfect workhorse for taking mid to long-range shots from the firing line.

Using Leupold’s Elite Optical System, the VX-3HD provides superior dawn-to-dusk light transmission for a bright image when it matters most, high-performance glare reduction in harsh light, and the resolution and clarity diehard hunters and shooters demand. It features a front parallax focus ring that adjusts from infinity all the way down to 10 meters, making it ideal for airguns or rimfire rifles. And we also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves.

Everything we put into your VX-3HD is there to help you dominate the competition. With its CDS-T dial, you'll get access to the entire adjustment range of your scope in precise ¼-MOA increments. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

3:1 ZOOM RATIO

A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.

CUSTOM DIAL SYSTEM

Leupold's Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

ADJUSTABLE OBJECTIVE

An adjustable objective focuses the scope to minimize the effects of parallax at different distances.

ELITE OPTICAL SYSTEM

Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.

HIGH DEFINITION

High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.

REMOVEABLE THROW LEVER

The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.

WATERPROOF, FOGPROOF, & SHOCKPROOF

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

In the Box

  • Leupold VX-3HD 6.5-20X40 EFR CDS-T Fine Duplex Rifle Scope
