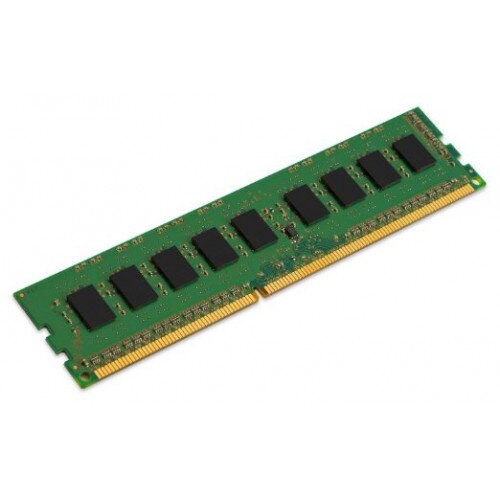

Kingston 8GB Module - DDR3 1600MHz Server Memory
Kingston 8GB Module - DDR3 1600MHz Server Memory Display Gallery Item 1

Kingston 8GB Module - DDR3 1600MHz Server Memory Price in Pakistan

By: Kingston

Model: KVR16E11/8

Sku: Y8IS9LDUTD

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.5V (1.425V ~ 1.575V)
  • 933MHz fCK for 1866Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 11, 10, 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential withstarting address “000” only), 4 with tCCD=4 which does notallow seamless read or write [either on the fly using A12 orMRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQpin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • On-DIMM thermal sensor (Grade B)
  • Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset
  • PCB : Height 1.180” (30.00mm), double sided component
Stock Request Notify When Available

This document describes ValueRAM's 1G x 72-bit (8GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, ECC memorymodule, based on eighteen 512M x 8-bit FBGA components.The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses goldcontact fingers.

In the Box

  • Kingston 8GB Module - DDR3 1600MHz Server Memory
