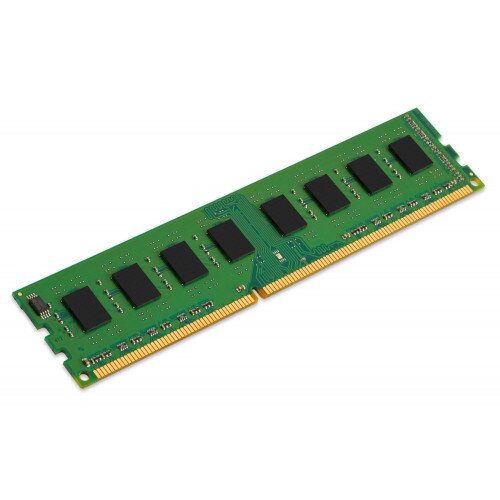

Kingston 8GB Module - DDR3 1600MHz Memory

By: Kingston

Model: KVR16N11/8

Sku: S981LLUC4C

Regular Price: PKR 5,299.00

Special Price PKR 5,099.00

& FREE Delivery

Availability: In Stock

  • JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply
  • VDDQ=1.5V (1.425V ~ 1.575V)
  • 800MHz fCK for 1600Mb/sec/pin
  • 8 independent internal banks
  • Programmable CAS latency: 11, 10, 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (interleave without any limit, sequential with starting address “000” only), 4 with tCCD=4 which does not allow seamless read or write (either on the fly using A12 or MRS)
  • Bi-directional Differential Data Strobe
  • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°Cº
  • Asynchronous Reset
  • PCB: Height 0.740” (18.75mm) or 1.180” (30.00mm)
Quantity :

This document describes ValueRAM's 1G x 64-bit (8GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memorymodule, based on sixteen 512M x 8-bit FBGA components. TheSPD is programmed to JEDEC standard latency DDR3-1600timing of 11-11-11 at 1.5V. This 240-pin DIMM uses goldcontact fingers.
