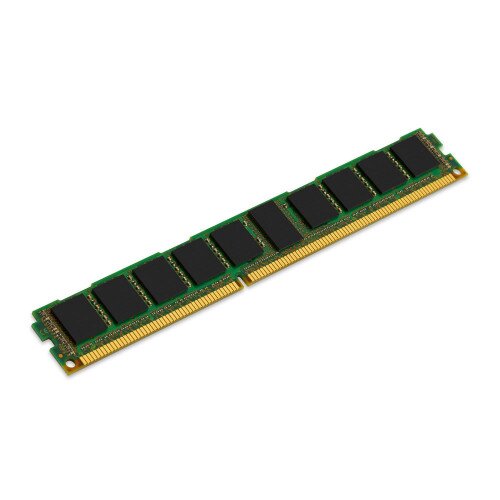

Kingston 8GB Module - DDR3 1333MHz Server Memory
Kingston 8GB Module - DDR3 1333MHz Server Memory Display Gallery Item 1

Kingston 8GB Module - DDR3 1333MHz Server Memory Price in Pakistan

By: Kingston

Model: KVR13R9S4L/8

Sku: GPNC4R4RKT

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ=1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL)=7 (DDR3-1333)
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential withstarting address “000” only), 4 with tCCD=4 which does notallow seamless read or write [either on the fly using A12 orMRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQpin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • On-DIMM thermal sensor (Grade B)
  • Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset
  • PCB : Height 0.740” (18.75mm), double sided component
Stock Request Notify When Available

This document describes ValueRAM's 1G x 72-bit (8GB)DDR3L-1333 CL9 SDRAM (Synchronous DRAM), registered w/parity, 1Rx4 ECC VLP memory module, based on eighteen 1Gx 4-bit FBGA components. The SPD is programmed to JEDECstandard latency DDR3-1333 timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact fingers.

In the Box

  • Kingston 8GB Module - DDR3 1333MHz Server Memory
