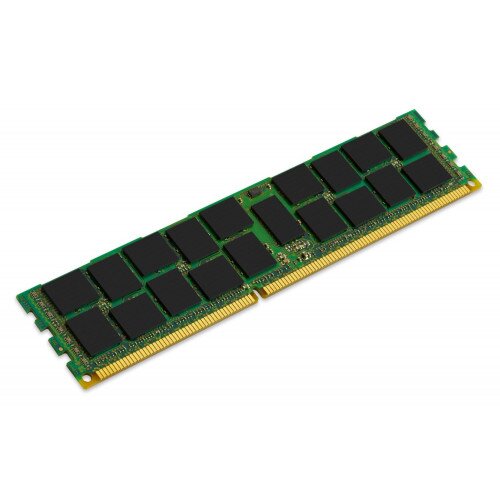

Kingston 8GB Module - DDR3 1333MHz Server Memory

By: Kingston

Model: KVR13R9D8/8

Sku: TH62253M9U

PKR 6,699.00

& FREE Delivery

Availability: In Stock

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ=1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL)=7 (DDR3-1333)
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential withstarting address “000” only), 4 with tCCD=4 which does notallow seamless read or write [either on the fly using A12 orMRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQpin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • On-DIMM thermal sensor (Grade B)
  • Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset
  • PCB : Height 1.180” (30.00mm), double sided component
Quantity :

This document describes ValueRAM's 1G x 72-bit (8GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), registered w/parity,2Rx8 ECC, memory module, based on eighteen 512M x 8-bitFBGA components. The SPD is programmed to JEDEC stan-dard latency DDR3-1333 timing of 9-9-9 at 1.5V. This 240-pinDIMM uses gold contact fingers.
