Kingston 4GB Module - DDR4 2133MHz Server Memory - KVR21R15S8/4

By: Kingston

Model: KVR21R15S8/4

Sku: ZZCWJLZLM5

PKR 3,999.00

Availability: In Stock

  • Power Supply: VDD=1.2V (1.14V to 1.26V)
  • VDDQ=1.2V (1.14V to 1.26V)
  • VPP - 2.5V (2.375V to 2.75V)
  • VDDSPD=2.25V to 2.75V
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • 16 internal banks
  • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
  • Data transfer rates: PC4-2133, PC4-1866, PC4-1600
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive.
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported
Quantity :

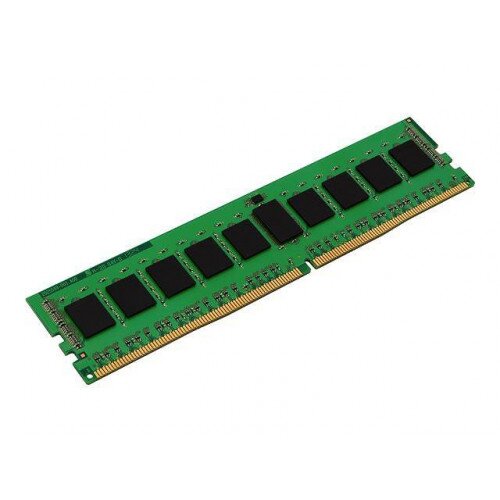

ValueRAM's KVR21R15S8/4 is a 512M x 72-bit (4GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
