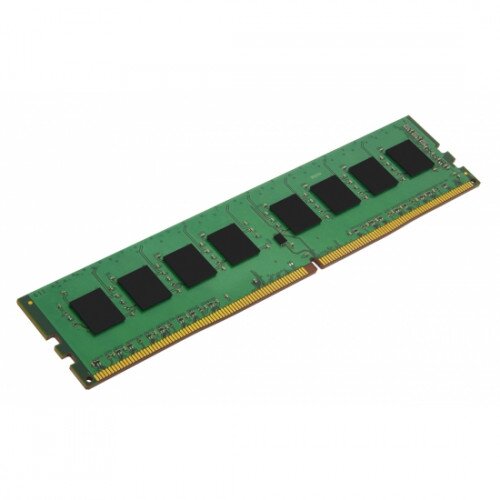

Kingston 4GB Module - DDR4 2133MHz Server Memory - KVR21E15S8/4
Kingston 4GB Module - DDR4 2133MHz Server Memory - KVR21E15S8/4 Display Gallery Item 1

Kingston 4GB Module - DDR4 2133MHz Server Memory - KVR21E15S8/4 Price in Pakistan

By: Kingston

Model: KVR21E15S8/4

Sku: OLH457OCY0

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Power Supply: VDD=1.2V Typical
  • VDDQ=1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • Temperature sensor with integrated SPD
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
Stock Request Notify When Available

This document describes ValueRAM's KVR21E15S8/4 is a 512M x 72-bit (4GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

In the Box

  • Kingston 4GB Module - DDR4 2133MHz Server Memory - KVR21E15S8/4
