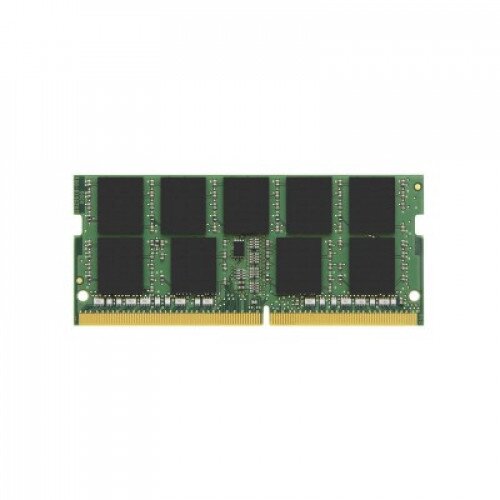

Kingston 4GB Module - DDR3L 1333MHz Server Memory

By: Kingston

Model: KVR13LSE9S8/4

Sku: CFUDW8SXYL

PKR 3,199.00

Availability: In Stock

  • JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ=1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential withstarting address “000” only), 4 with tCCD=4 which does notallow seamless read or write [either on the fly using A12 orMRS]
  • Bi-directional Differential Data Strobe
  • Thermal Sensor Grade B
  • Internal(self) calibration : Internal self calibration through ZQpin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C
  • Asynchronous Rese
  • PCB: Height 1.18” (30mm), double sided component
Quantity :

This document describes ValueRAM's 512M x 72-bit (4GB)DDR3L-1333 CL9 SDRAM (Synchronous DRAM), 1Rx8, ECC,low voltage, memory module, based on nine 512M x 8-bit FBGAcomponents. The SPD is programmed to JEDEC standardlatency DDR3-1333 timing of 9-9-9 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers.
