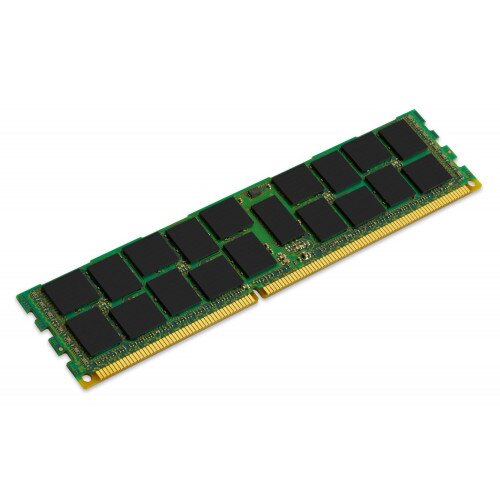

Kingston 16GB Module - DDR3 1600MHz Server Memory

By: Kingston

Model: KVR16R11D4/16

Sku: MSTYL8B3NS

PKR 11,399.00

& FREE Delivery

Availability: In Stock

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ=1.5V (1.425V ~ 1.575V)
  • 933MHz fCK for 1866Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 11, 10, 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential withstarting address “000” only), 4 with tCCD=4 which does notallow seamless read or write [either on the fly using A12 orMRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQpin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • On-DIMM thermal sensor (Grade B)
  • Average Refresh Period 7.8us at lower than TCASE 85°C,3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset
  • PCB : Height 1.180” (30.00mm), double sided component
Quantity :

This document describes ValueRAM's 2G x 72-bit (16GB)DDR3-1600 CL11 SDRAM (Synchronous DRAM), registered w/parity, 2Rx4 ECC memory module, based on thirty-six1G x 4-bit FBGA components. The SPD is programmed toJEDEC standard latency DDR3-1600 timing of 11-11-11 at1.5V. This 240-pin DIMM uses gold contact fingers.
