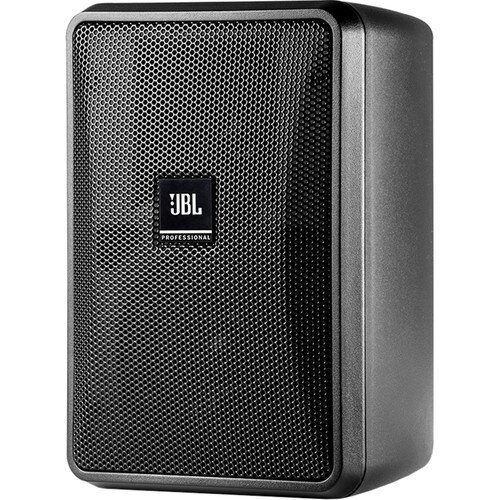

Grab JBL Control 23-1L (Pair) Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker

By: JBL

Sku: VQ2ZBBAUNE

PKR 190,999

& FREE Standard Delivery

PKR 129,199

& FREE Standard Delivery

PKR 190,999

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Frequency Range (-10 dB): 70 Hz to 20 kHz
  • Frequency Response (+/-3 dB): 95 Hz - 19 kHz
  • Power Rating: 100W Continuous Program (2 hrs) ; 50 W (200W peak), Continuous Pink Noise (2 hrs) ; 40 W (160W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
  • Maximum SPL: 103 dB ave. Continuous Pink Noise (109 dB peak)
  • Sensitivity: 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle: 100° x 100°
  • Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz)
  • Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz)
  • Nominal Impedance: 8 ohms (in Thru mode)
  • Crossover Type: 2nd order low-pass, 2nd order high-pass
  • Recommended Protective High-Pass: 70 Hz high-pass (24 dB/oct)
  • Low Frequency Driver: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
  • High Frequency Driver: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Quantity:
  • Add to Wishlist
  • Add to Compare

Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker

The Control 23-1L is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

Built-in InvisiBall mounting hardware

Provides a high degree of both vertical and horizontal rotation, and a high degree of theft deterrence

Weather resistant enclosure and transducers

In addition to the driver designs contributing toward a high degree of weather resistance, the cabinet provides excellent endurance against sun, salt and moisture. Grilles are heavily zinc-plated and finished in a tough, high-grade powder coating for rust resistance.

In the Box

  • 2 x Control 23-1L
  • 2 x InvisiBall wall-mounting system
  • 4 mm x 80 mm hex key
