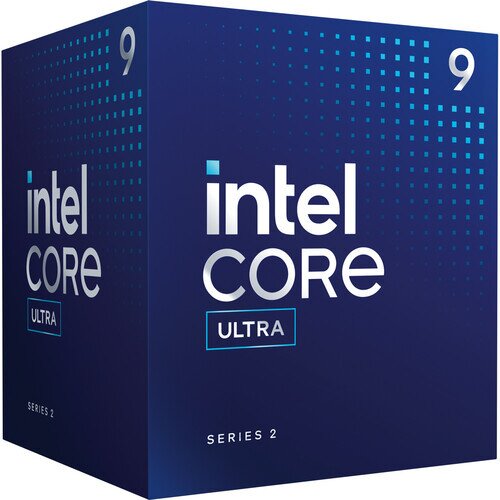

Intel Core Ultra 9 Processor 36M Cache, up to 5.60 GHz
Intel Core Ultra 9 Processor 36M Cache, up to 5.60 GHz Display Gallery Item 1

Intel Core Ultra 9 Processor 36M Cache, up to 5.60 GHz - Shop Now!

By: Intel

Model: BX80768285

Sku: WHJD16X964

Be the first to review this product

Sign up for price alert

PKR 159,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Vertical Segment: Desktop, Processor Number: 285
  • Total Cores: 24, # of Performance-cores: 8, # of Efficient-cores: 16, Total Threads: 24
  • Max Turbo Frequency: 5.6 GHz, Intel Thermal Velocity Boost Frequency: 5.6 GHz, Intel Turbo Boost Max Technology 3.0 Frequency: 5.5 GHz, Performance-core Max Turbo Frequency: 5.4 GHz
  • Efficient-core Max Turbo Frequency: 4.6 GHz, Performance-core Base Frequency: 2.5 GHz, Efficient-core Base Frequency: 1.9 GHz
  • Cache: 36 MB Intel Smart Cache, Total L2 Cache: 40 MB, Processor Base Power: 65 W, Maximum Turbo Power: 182 W, Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
  • AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN, CPU Lithography: TSMC N3B,
  • Launch Date: Q1'25, Embedded Options Available: Yes, Use Conditions: PC/Client/Tablet, Workstation
  • Max Memory Size (dependent on memory type) : 256 GB, Memory Types: Up to DDR5 6400 MT/s, Max # of Memory Channels: 2, ECC Memory Supported: Yes
  • GPU Name: Intel Graphics, Graphics Base Frequency: 300 MHz, Graphics Max Dynamic Frequency: 2 GHz, GPU Peak TOPS (Int8): 8
  • Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b, Xe-cores: 4, Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL), Max Resolution (DP): 8K @ 60Hz, Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
  • DirectX* Support: 12, OpenGL* Support: 4.5, OpenCL* Support: 3, Intel Quick Sync Video: Yes, # of Displays Supported: 4, Device ID: 0x7D67, Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes
  • NPU Name: Intel AI Boost, NPU Peak TOPS (Int8): 13, Sparsity Support: Yes, Windows Studio Effects Support: Yes, AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
  • Direct Media Interface (DMI) Revision: 4, Max # of DMI Lanes: 8, Intel Thunderbolt 4: Yes, Scalability: 1S Only, PCI Express Revision: 5.0 and 4.0
  • PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4 Max # of PCI Express Lanes: 24
  • Sockets Supported: FCLGA1851, Thermal Solution Specification: PCG 2022C, Max Operating Temperature: 105 °C
  • Intel Gaussian & Neural Accelerator: 3.5, Intel Thread Director: Yes, Intel Speed Shift Technology: Yes, Intel Thermal Velocity Boost: Yes, Intel Turbo Boost Max Technology 3.0: Yes
  • Intel Turbo Boost Technology: 2.0, Intel 64: Yes, Instruction Set: 64-bit, Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
  • Idle States: Yes, Enhanced Intel SpeedStep Technology: Yes, Thermal Monitoring Technologies: Yes, Intel Volume Management Device (VMD): Yes
  • Intel vPro Eligibility: Intel vPro Enterprise, Intel Threat Detection Technology (TDT): Yes, Intel Active Management Technology (AMT): Yes, Intel Standard Manageability (ISM): Yes, Intel Remote Platform Erase (RPE): Yes
  • Intel One-Click Recovery: Yes, Intel Control-Flow Enforcement Technology: Yes, Intel Total Memory Encryption - Multi Key: Yes, Intel AES New Instructions: Yes, Intel Secure Key: Yes
  • Intel Trusted Execution Technology: Yes, Execute Disable Bit: Yes, Intel OS Guard: Yes, Intel Boot Guard: Yes, Mode-based Execute Control (MBEC): Yes, Intel Stable IT Platform Program (SIPP): Yes
  • Intel Virtualization Technology with Redirect Protection (VT-rp): Yes Intel Virtualization Technology (VT-x): Yes Intel Virtualization Technology for Directed I/O (VT-d): Yes Intel VT-x with Extended Page Tables (EPT): Yes
Quantity:
  • Add to Wishlist
  • Add to Compare
SKU WHJD16X964
Brand Intel
Model BX80768285
Socket No
Condition New
Processor No
Generation No
Memory No
Weight (lbs.) 0.6430
Manufacturer's Warranty 1 Year Limited Warranty
