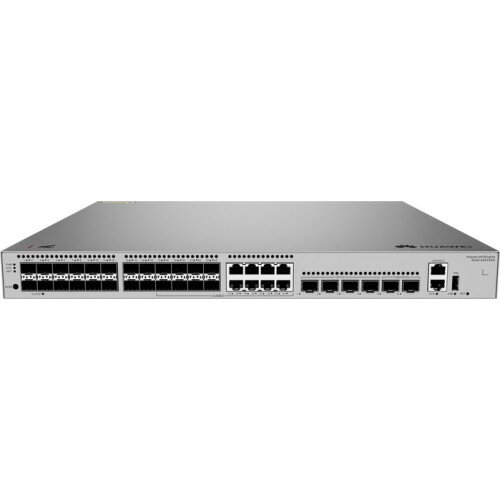

Huawei eKitEngine S530-24ST4XE Switch
Huawei eKitEngine S530-24ST4XE Switch Display Gallery Item 1

Huawei eKitEngine S530-24ST4XE Switch Price in Pakistan

By: Huawei

Model: 98012556

Sku: 7T2KFZB4D9

Be the first to review this product

Sign up for price alert

PKR 229,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Typical power consumption [W]: 31.6 W
  • Typical heat dissipation [BTU/hour]: 107.82 BTU/hour
  • Maximum power consumption [W]: 48.70 W (with two 80 W AC power modules), 85.78 W (with two 1200 W DC power modules)
  • Maximum heat dissipation [BTU/hour]: 166.17 (with two 80 W AC power modules), 292.69 (with two 1200 W DC power modules)
  • Static power consumption [W]: 14 W
  • MTBF [years]: 112.03 years
  • MTTR [hours]: 2 hours
  • Availability: ) 0.99999
  • Noise at normal temperature (acoustic power) [dB(A)]: 38.1 dB(A)
  • Noise at normal temperature (acoustic pressure) [dB(A)]: 26.1 dB(A)
  • Number of card slots: 0
  • Number of power slots: 2
  • Number of fans modules : 2
  • Long-term operating temperature [°C(°F)]: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
  • Storage temperature [°C(°F)]: –40°C to +70°C (–40°F to +158°F)
  • Long-term operating relative humidity [RH]: 5% RH to 95% RH (non-condensing)
  • Long-term operating altitude [m(ft.)]: 0–5000 m (0–16404 ft.)
  • Storage altitude [m(ft.)]: 0-5000 m (0-16404 ft.)
  • Rated input voltage [V]: AC input: 100 V AC to 240 V AC; 50/60 Hz, High-voltage DC input: 240 V DC, DC input: –48 V DC to –60 V DC
  • Input voltage range [V]: AC input: 90 V AC to 290 V AC; 45–65 Hz, High-voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC
  • Memory: 2 GB
  • Flash memory: Physical space: 1 GB
  • Console port: RJ45
  • Eth Management port: Supported
  • USB: Supported
  • RTC: Not supported
  • RPS input: Not supported
  • Ingress protection level (dustproof/waterproof): IP20
  • Types of fans: Built-in
Quantity:
  • Add to Wishlist
  • Add to Compare
Style No
SKU 7T2KFZB4D9
Brand Huawei
Model 98012556
Condition New
Weight (lbs.) 16.3100
Manufacturer's Warranty 1 Year Limited Warranty
