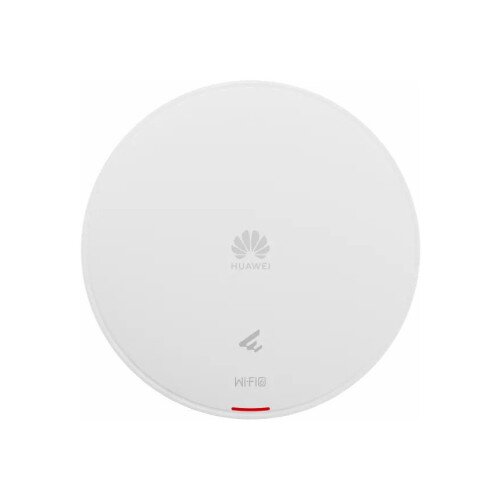

Huawei eKitEngine AP661 Wi-Fi 6 Indoor Wireless Access Point
Huawei eKitEngine AP661 Wi-Fi 6 Indoor Wireless Access Point Display Gallery Item 1

Grab Huawei eKitEngine AP661 Wi-Fi 6 Indoor Wireless Access Point

By: Huawei

Model: AP661

Sku: MLX0J8I5K9

Be the first to review this product

Sign up for price alert

PKR 59,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Installation mode: Wall mounting, Ceiling mounting, T-rail mounting
  • Port: 1 x 10M/100M/GE/2.5GE electrical port, 1 x 10M/100M/GE electrical port, 1 x USB port
  • LED indicator: Indicate the power-on, startup, running, alarm, and fault states of the system.
  • Power input: DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3at
  • Maximum power consumption: 21.2 W (excluding USB)
  • Operating temperature: –10°C to +50°C (From 1800 m to 5000 m, the maximum operating temperature of the device decreases by 1°C for every 300 m increase in altitude.)
  • Storage temperature: -40°C to +70°C
  • Operating humidity: 5% to 95% (non-condensing)
  • Altitude: –60 m to +5000 m
  • Atmospheric pressure: 53 kPa to 106 kPa
  • IP rating: IP41
  • Antenna type: Built-in smart antenna
  • Antenna gain: 2.4 GHz: 4 dBi, 5 GHz: 5 dBi
  • Maximum quantity of SSIDs on each radio: 16
  • Maximum number of STAs: 1536 (512/radio)
  • Maximum transmit power: 2.4 GHz: 25 dBm (combined power), 5 GHz (2x2 MIMO): 23 dBm (combined power), 5 GHz (4x4 MIMO): 26 dBm (combined power)
  • Power adjustment increment: 1dBm
  • Maximum number of non-overlapping: channels: 2.4 GHz (2.412 GHz to 2.472 GHz), 802.11b/g: − 20 MHz: 3 802.11n: − 20 MHz: 3, − 40 MHz: 1, 802.11ax: − 20 MHz: 3, 40 MHz: 1, 5 GHz (5.18 GHz to 5.825 GHz): 802.11a: − 20 MHz: 13, 802.11n: − 20 MHz: 13, − 40 MHz: 6: 802.11ac: − 20 MHz: 13, − 40 MHz: 6, − 80 MHz: 3, − 160 MHz: 1, 802.11ax: − 20 MHz: 13, − 40 MHz: 6, − 80 MHz: 3, − 160 MHz: 1
Quantity:
  • Add to Wishlist
  • Add to Compare

Huawei eKitEngine AP661 is an indoor AP in compliance with Wi-Fi 6 (802.11ax). It can simultaneously provide services on 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) and 5 GHz (4x4 MIMO) frequency bands, achieving a device rate of up to 6.575 Gbps. Built-in smart antennas of the AP enable always-on Wi-Fi signals for users, significantly enhancing users' wireless experiences. These strengths make it ideal for densely populated scenarios such as mobile office, education, and stadiums.

Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to changes in the external environment, in addition to providing accurate and stable coverage as stations (STAs) move

Working modes: Fit, Fat, and cloud management

Wi-Fi 6 (802.11ax) standard

  • As the latest Wi-Fi standard defined in IEEE 802.11, 802.11ax improves the user access capacity and bandwidth in high-density access scenarios, reduces service latency, and enhances user experience.
  • Multi-user multiple-input multiple-output (MU-MIMO) on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of radio spectrum resources.
  • 802.11ax supports 1024-QAM, delivering 25% higher data transmission efficiency than 802.11ac (supporting 256- QAM).
  • Orthogonal Frequency Division Multiple Access (OFDMA) technology enables the AP to transmit data to multiple STAs at the same time using different subcarriers, reducing latency and improving network efficiency.
  • Spatial multiplexing technology uses basic service set (BSS) coloring mechanism to enable the AP and STAs to distinguish overlapping BSSs, minimizing co-channel interference.
  • Target Wake Time (TWT) technology allows the AP and STAs to negotiate the sleep and wake time with each other, thereby improving the battery life of the STAs.

MU-MIMO

The AP supports MU-MIMO and supports a maximum of eight spatial streams, two spatial streams on the 2.4 GHz frequency band and six spatial streams on the 5 GHz band (two on the high-frequency band and four on the lowfrequency band). The MU-MIMO technology enables an AP to send data to multiple STAs simultaneously, which doubles the radio spectrum resource usage, increases the number of access users and bandwidth, and improves user experience in high-density access scenarios.

Smart antenna

The dual-band smart antenna array technology and intelligent switchover algorithm enable the AP to intelligently sense the application environment and access density, achieving accurate Wi-Fi coverage and interference suppression. They together provide the optimal coverage direction and signal quality for each access STA, and offer seamless and smooth wireless network experience to users.

High-speed access

The AP supports 160 MHz frequency bandwidth, which increases the number of available data subcarriers and expands transmission channels. In addition, the AP adopts 1024-QAM and MU-MIMO to achieve a rate of up to 0.575 Gbps on the 2.4 GHz band and 6 Gbps on the 5 GHz band, meaning up to 6.575 Gbps for the device.

In the Box

  • Huawei eKitEngine AP661 Wi-Fi 6 Indoor Wireless Access Point
