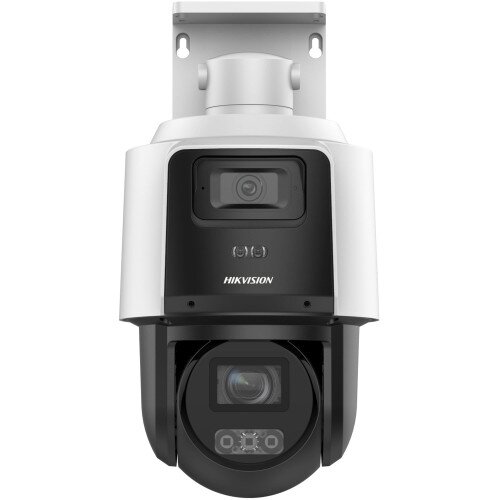

Grab Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP 4X POE PTZ Network Camera

Camera

• Image Sensor: [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Min. Illumination: [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/30,000 s
• Slow Shutter: yes
• Day & Night: ICR
• Zoom: [PTZ channel] 4 × optical, 16 × digital
• Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lens

• Focus: auto,manual,semi-auto
• Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
• Zoom Speed: [PTZ channel]: approx. 3.3 s
• FOV: [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39°
• Aperture: [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9

Illuminator

• Supplement Light Type: [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
• Smart Supplement Light: Yes
• Supplement Light Range: [PTZ channel]: IR Distance: up to 40 m; [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m

PTZ

• Movement Range (Pan): 0° to 350°
• Movement Range (Tilt): [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
• Pan Speed: pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
• Tilt Speed: tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
• Proportional Pan: yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Power-off Memory: yes
• Park Action: preset,patrol scan
• 3D Positioning: yes
• PTZ Status Display: yes
• Preset Freezing: yes
• Scheduled Task: dome reboot,preset,patrol scan,dome adjust,aux output

Video

• Region of Interest (ROI): 1 fixed regions for main stream
• Main Stream: [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720), [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: [Bullet channel]: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360), [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: [Bullet channel]: 50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360), 60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360), [PTZ channel]: 50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360), 60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)
• Video Compression: H.265,H.264,MJPEG
• Video Bit Rate: 32 kbps to 16384 kbps
• H.264 Type: main profile,baseline profile,high profile
• H.265 Type: main profile
• Scalable Video Coding (SVC): yes

Audio

• Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
• Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
• Audio Sampling: Rate MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz
• Environment Noise Filtering: yes

Network

• API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Network Storage: NAS (NFS, SMB/ CIFS),ANR, ANR
• Protocols: TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
• Simultaneous Live View: 20
• User/Host: 32
• Security: 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
• Client: iVMS-4200,Hik-Connect
• Web Browser: IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+


• Image Settings: sharpness, saturation, brightness, contrast
• Wide Dynamic Range (WDR): 120 dB
• SNR: 52 dB
• Defog: Digital defog
• Day/Night Switch: day, night, auto, scheduled-switch
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
• Regional Focus: [Bullet channel] No, [PTZ channel] Yes
• Regional Exposure: [Bullet channel] No, [PTZ channel] Yes
• Image Parameters Switch: Yes

Interface

• Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
• On-board Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
• Reset: yes

Event

• Basic Event: Motion detection,video tampering alarm,exception,alarm input and output
• Smart Event: Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
• Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

In the Box

• Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP 4X POE PTZ Network Camera
