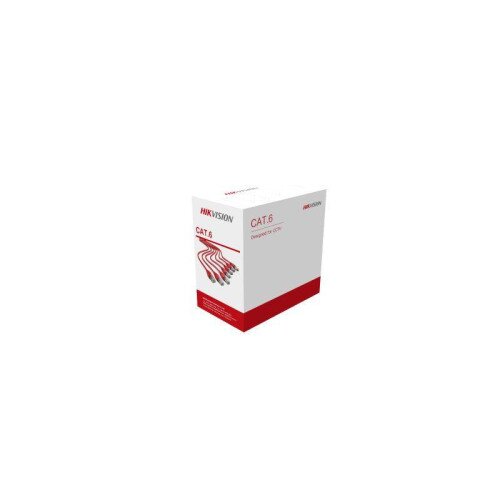

Hikvision DS-1LN6U-SC0 305m CAT6 UTP Network Cable Price in Pakistan

Name: Hikvision DS-1LN6U-SC0 305m CAT6 UTP Network Cable
Brand: Hikvision
SKU: O1453JCHA2
Price: 38999 PKR
Availability: InStock

Model: PT-CLN6-P/G

PKR 38,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

General: Rip-cord: Yes / Category: Cat.6 / Sheath printing: HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC m mm/dd/yyyy Tracing Code-HS / Reference standard: ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 / Fire resistance: No / Separator: Yes
Conductor: Material:Solid-Bare Copper (99.95%)/ Diameter: 0.55 ± 0.005 mm, 23 AWG
Insulation: Material: HDPE / Diameter: 0.98 ± 0.05 mm
Sheath physical properties: Before aging: Tensile strength 13.5 Mpa Elongation 150% / Aging period: 100°C × 24h × 10d / After aging: Tensile strength 12.5 Mpa Elongation 125% / Cold bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics(20℃): 1.0-250.0 MHz impedance: 100 ± 15 Ω @ 100 MHz 100 ± 25 Ω @100-250 MHz / 1.0-250.0 Mhz delay skew: 45 ns/100 m / DC resistance: 9.38 Ω/100 m / DC conductor resistance unbalance: 5.0% / Cable length: (305 ± 1.5) m / Ambient temperature: -20°C to 75°C (-4°F to 167°F) / Operating voltage: 60 V
Sheath: Thickness: 0.50 ± 0.10 mm / Material: PVC / Diameter: 6.00 ± 0.30 mm

Quantity:

Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801 Compliant with RoHS 2.0

Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project

Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature

Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)

Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance
