Hikvision DS-1LN6-UU 305m CAT6 UTP Network Cable Price in Pakistan

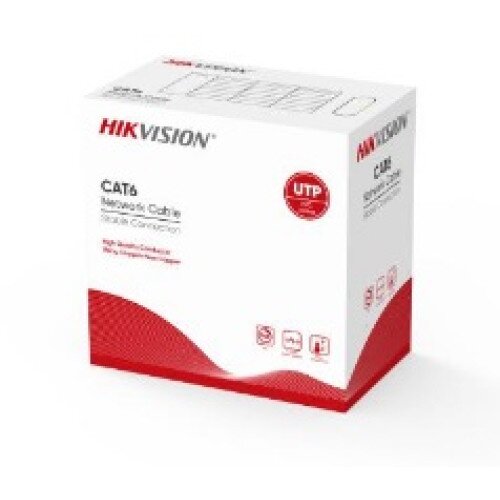

Name: Hikvision DS-1LN6-UU 305m CAT6 UTP Network Cable
Brand: Hikvision
SKU: 1KVGI1H0DJ
Price: 37999 PKR
Availability: InStock

Model: DS-1LN6-UU

Regular Price: PKR 39,999

Special Price PKR 37,999

(5% off)

& FREE Two-Day Delivery

Availability: In Stock In Stock

General: Core Color: 1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown / Packing: Wooden Tray & Carton / Carton Dimension: Per request / Packing length: 305±1.5m / Rip-cord: Yes / Drain wire: No / Sheath Physical Properties: Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks / Electrical Characteristics (20℃): 1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,
Conductor: Material: Solid-Bare Copper,Content 99.95% / Nom.O.D.(mm): 0.565±0.005
Insulation: Material: HDPE / Diameter: 1.02±0.05mm
Surface Printing: Letter height: 3.0±0.3mm / Print error & Space: ≤±0.5%，1m
Sheath: Thickness: 0.55±0.05 mm / External O.D.: 6.2±0.4 mm / Surface: Clean,Frap,Satiation / Material: PVC(complies RoHS),CM / Color: Orange RAL2003

Quantity:

Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801 Compliant with RoHS 2.0

Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project

Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature

Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)

Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance
