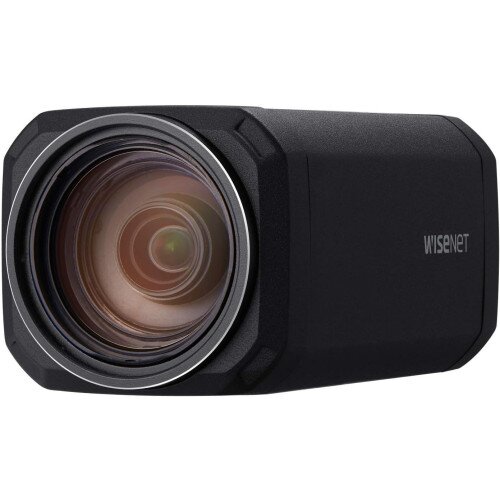

Hanwha Techwin XNZ-6320 2MP 32x Zoom Box Security Camera
Hanwha Techwin XNZ-6320 2MP 32x Zoom Box Security Camera Display Gallery Item 1

Hanwha Techwin XNZ-6320 2MP 32x Zoom Box Security Camera - Shop Now!

By: Hanwha Techwin

Model: XNZ-6320

Sku: 74588UGNSO

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Imaging Device: 1/2.8" CMOS
  • Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
  • Max. Framerate (H.265/H.264): Max. 60fps/50fps (60Hz/50Hz)
  • Max. Framerate (MJPEG): Max. 30fps/25fps (60Hz/50Hz)
  • NETD: None
  • Pixel Size: None
  • Min. Illumination Color: 0.05Lux (F1.6, 1/30sec)
  • Min. Illumination BW: 0.005Lux (IR LED On)
  • Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation, USB: Micro USB Type B, 1280x720 for installation
  • Video Transmission Distance: None
  • Focal Length: 4.44~142.6mm (32x) motorized varifocal
  • Max. Aperture Ratio: F1.6 (Wide) ~ F4.4 (Tele)
  • Angular Field of View Horizontal: 61.8° (Wide) ~ 2.19° (Tele)
  • Angular Field of View Vertical: 36.2° (Wide) ~ 1.24° (Tele)
  • Min. Object Distance: 1.5m (4.92ft)
  • Focus Control: Auto, One shot AF
  • Lens Type: DC iris
  • Mount Type: None
  • Optional Lens: None
  • Pan / Tilt / Rotate Range: None
  • Pan Range: None
  • Pan Speed: None
  • Tilt Range: None
  • Tilt Speed: None
  • Rotate Range: None
  • Sequence: None
  • Preset Accuracy: None
  • Camera Title: Displayed up to 85 characters
  • Direction Indicator: Supported
  • Day & Night: Auto (ICR)
  • Backlight Compensation: BLC, HLC, WDR, SSDR
  • Wide Dynamic Range: 150dB
  • Digital Noise Reduction: SSNRⅤ
  • Digital Image Stabilization: Supported
  • Defog: Supported
  • Motion Detection: 8 zones, 8-point polygonal zones
  • Privacy Masking: 32 zones, rectangular - Colors: Grey/Green/Red/Blue/Black/White, Mosaic
  • Gain Control: Low / Middle / High
  • White Balance: ATW / AWC / Manual / Indoor / Outdoor
  • LDC: None
  • Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
  • Digital PTZ: None
  • Video Rotation: Flip, Mirror
  • Analytics: Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
  • Business Intelligence: None
  • Serial Interface: RS-485/422 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
  • Alarm I/O: Input 1ea / Output 2ea
  • Alarm Triggers: Analytics, Network disconnect, Alarm input
  • Alarm Events: File upload via FTP, E-mail Notification, SD/SDHC/SDXC or NAS recording, Alarm output, PTZ Preset
  • Audio Streaming: None
  • Audio In: Selectable (Mic in/Line in), Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
  • Audio Out: Line out, Max. output level: 1Vrms
  • IR Viewable Length: None
  • IR Illuminator (Optional): None
  • Water Removal: None
  • Auto Tracking: None
  • Coaxial Protocol: None
  • Color Palettes: None
  • Temperature Detect Range: None
  • Temperature Accuracy: None
  • Temperature Detection: None
  • Additional: None
  • Ethernet: RJ-45 (10/100BASE-T), SFP (100BASE-FX)
  • Video Compression: H.265/H.264 (Main/Baseline/High), MJPEG
  • Audio Compression: G.711 u-law / G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz
  • Smart Codec: Manual (5 areas), WiseStreamⅡ
  • Video Quality Adjustment: H.264/H.265: Target bitrate level control, MJPEG: Target bitrate level control
  • Bitrate Control: H.264/H.265: CBR or VBR, MJPEG: VBR
  • Streaming: Unicast (20 users), Multicast, Multiple streaming (Up to 10 profiles)
  • Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  • SIP Support: None
  • Security: HTTPS (SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
  • Application Programming Interface: ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform
  • Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Web Viewer: None
  • Edge Storage: Micro SD/SDHC/SDXC 2 slots, 512GB
  • Memory: 1024MB RAM, 256MB Flash
  • Operating Temperature / Humidity: -10°C ~ +55°C (14°F ~ +131°F) / Less than 90% RH
  • Storage Temperature / Humidity: -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  • Certification: None
  • Input Voltage: PoE (IEEE802.3af, Class3), 24VAC, 12VDC
  • Power Consumption: PoE: Max 7W, 12VDC: Max 6.7W
  • RAL Code: None
  • Compatible Conduit hole / Gangbox: None
  • Hanging Mount (Dome): None
  • Skin Cover: None
  • Skin Cover (Dome): None
  • Weather Cap (Dome): None
  • Power Module: None
  • Backbox: None
  • Detect (25PPM / 8PPF): Wide: 64.2m (210.62ft) / Tele: 2009.0m (6591.3ft)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • 2 Megapixel (1920 x 1080) resolution
  • 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
  • Max. 60fps@all resolutions (H.265 / H.264)
  • H.265, H.264, MJPEG Codec, Multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • DIS with built-in Gyro sensor
  • Video & Audio Analytics
  • PoE, SFP, SD/SDHC/SDXC memory slot

In the Box

  • Hanwha Techwin XNZ-6320 2MP 32x Zoom Box Security Camera
