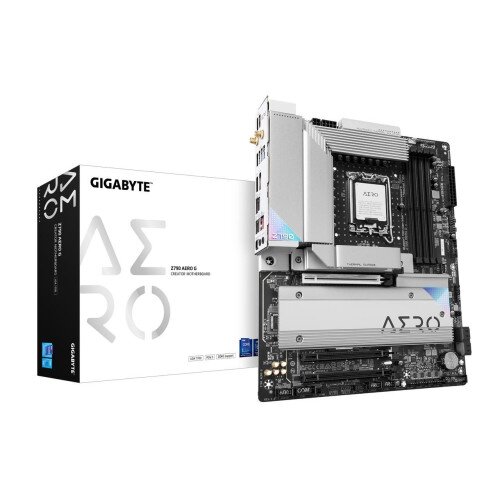

Gigabyte Z790 AERO G (rev. 1.0) Motherboard
Gigabyte Z790 AERO G (rev. 1.0) Motherboard Display Gallery Item 1
Gigabyte Z790 AERO G (rev. 1.0) Motherboard - 2 Display Gallery Item 2
Gigabyte Z790 AERO G (rev. 1.0) Motherboard - 3 Display Gallery Item 3
Gigabyte Z790 AERO G (rev. 1.0) Motherboard - 4 Display Gallery Item 4
Gigabyte Z790 AERO G (rev. 1.0) Motherboard - 5 Display Gallery Item 5

Gigabyte Z790 AERO G (rev. 1.0) Motherboard Price in Pakistan

By: Gigabyte

Model: Z790 AERO G (rev. 1.0)

Sku: 7JM77U7IRG

Be the first to review this product

Sign up for price alert

PKR 89,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • GIGABYTE Creator Motherboard
  • Supports 13th and 12th Gen Intel Core Series Processors
  • VisionLINK : One USB-C Port for Video, Data Transfer and Charging
  • Dual Channel DDR5 : 4*SMD DIMMs with XMP Memory Module Support
  • Next Generation Storage : 1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks : Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity : DP IN, HDMI, Front USB-C 20Gb/s Support
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
  • CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors*, L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
  • Chipset: Intel Z790 Express Chipset
  • Memory: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules, 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.)
  • Audio: Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
  • LAN: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module: Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots: CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1), 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
  • Storage Interface: CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU), 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB: Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header), 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 2 x USB 3.2 Gen 1 ports available through the internal USB header, 2 x USB 2.0/1.1 ports on the back panel. Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel. Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 5 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x noise detection header, 2 x Thunderbolt add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 2 x temperature sensor headers, 1 x Clear CMOS jumper
  • Back Panel Connectors: 2 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (2T2R), 4 x USB 3.2 Gen 1 ports, 1 x DisplayPort In port, 1 x HDMI 2.0 port, 2 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
  • BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features: Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup
  • Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software
  • Operating System: Support for Windows 11 64-bit, Support for Windows 10 64-bit
  • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
Quantity:
  • Add to Wishlist
  • Add to Compare

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

VISIONLINK

Simplify Your Connections.

Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C cable.

DisplayPort Alternate Mode with USB Power Delivery.

VisionLINK comes with data transfer capabilities, DisplayPort Alternate Mode for video, and 60W of power for device charging.

USB Power Delivery

With the design of USB Power Delivery(PD) Profile 4 and goes up to 60W specific. It is a specification for handling higher power and allows a range of devices to fast charge over a USB connection.

DisplayPort Alternate Mode

Alternate mode is the feature in USB Type-C allowing for standard USB Type-C connectors to carry both USB signal and non USB data like video signal.

One Port For All.

Video, Data Transfer, Charging

Bring graphics performance to your pen display.

Through the DisplayPort_In and VisionLINK connections, the performance of the discrete graphics card is delivered to the pen display.

CONNECTIVITY

AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.

Intel 2.5GbE LAN

Wait No More

Brings a speed network experience to life.

Intel 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing and fast data transfers.

Wi-Fi 6E

Do more. Stream more. Enjoy more.

Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag.

Wi-Fi 6E Advantage

Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

SuperSpeed USB 20Gbps

USB 3.2 Gen 2x2 lets you to enjoy the flexibility of connectivity, fast access and large data transfers.

DDR5

Faster Instant Reaction Speed.

Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed.

PCIe 5.0 Design

The Fastest, Most Robust Level.

Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.

PCIe 5.0 M.2 Slots & Next-Gen Connector Dimension Design

Supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions.

PCIe 5.0 x16 Slot

Supports new PCIe 5.0 graphics or accelerator card

PCIe EZ-Latch

PCIe 5.0 M.2 Storage

Fast Speed. More Space.

Equipped with a full-speed PCIe 5.0 M.2 slot. A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.

PCIe x4 M.2

Creates Exclusive Storage Performance.

All PCIe x4 M.2 slots provide NVMe SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support.

Aesthetic Cooling Design.

GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.

In the Box

  • Gigabyte Z790 AERO G (rev. 1.0) Motherboard
