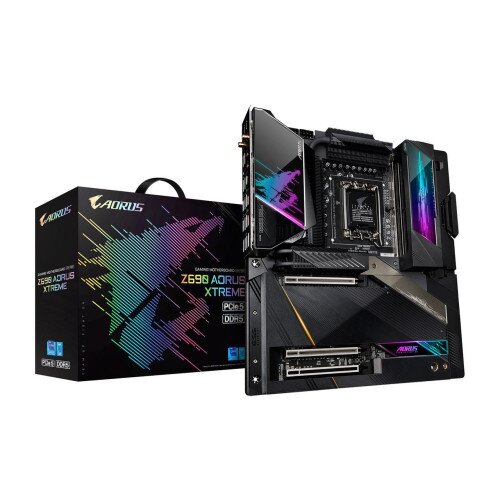

Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard
Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard Display Gallery Item 1
Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard - 2 Display Gallery Item 2
Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard - 3 Display Gallery Item 3
Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard - 4 Display Gallery Item 4
Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard - 5 Display Gallery Item 5

Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard Price in Pakistan

By: Gigabyte

Model: Z690 AORUS XTREME

Sku: IGAS717QJL

Be the first to review this product

Sign up for price alert

PKR 336,799

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • CPU: LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors, L3 cache varies with CPU
  • Chipset: Intel Z690 Express Chipset
  • Memory Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules, 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics: Integrated Graphics Processor+Intel Thunderbolt 4 Controller: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output), * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-7, * Support for DisplayPort 1.4 version and HDCP 2.3
  • Audio: 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips, DTS Sound Unbound, High Definition Audio, 2-channel, Support for S/PDIF Out, * The line out jack and the optical S/PDIF out connector can only be used one at a time.
  • LAN: Marvell AQtion AQC113C 10GbE LAN chip, (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1), Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
  • Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, 1 x PCI Express x16 slot, running at x8 (PCIEX8), * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode, (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4_1), (The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)
  • Storage Interface: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, Intel Optane Memory Ready, * System acceleration with Intel Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
  • Unique Features: BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install
Quantity:
  • Add to Wishlist
  • Add to Compare

Z690 AORUS XTREME (rev. 1.0)

With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

XTREME MEMORY

GIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

THERMAL REACTIVE ARMOR

GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

CONNECTIVITY

GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

  • Intel Z690 AORUS Motherboard with Direct 20+1+2 Phases Digital VRM Design, DDR5 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II ,NanoCarbon Baseplate, M.2 Thermal Guard XTREME, Intel Thunderbolt 4, ESSential Audio, Intel WIFI 6E 802.11ax, AQUANTIA 10GbE LAN
  • Support 12th Gen Intel Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • Direct 20+1+2 Phases VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Thermal Reactive Armor with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II and NanoCarbon Baseplate
  • Intel Thunderbolt 4 onboard
  • Intel WIFI 6E 802.11ax 2T2R & BT5 with 2 x AORUS Antenna
  • Essential USB Hex Audio Card and bundled Essential USB DAC
  • AQUANTIA 10GbE BASE-T LAN and Intel 2.5GbE LAN with cFosSpeed
  • 4 x Ultra-Fast NVMe PCIe 4.0 / 3.0 x4 M.2 with Thermal Guards XTREME
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

In the Box

  • Gigabyte Z690 AORUS XTREME (rev. 1.0) Motherboard
