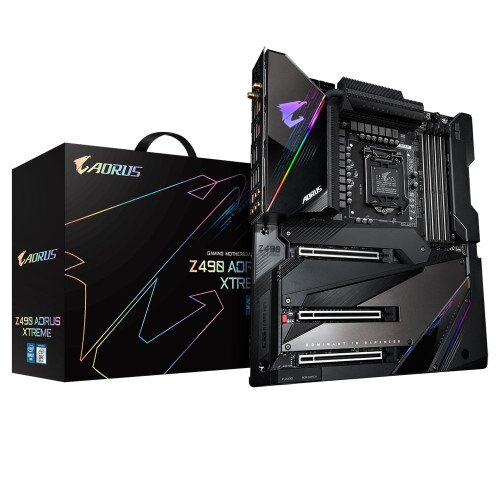

EXTREME POWER DESIGN
To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME is a true beast among motherboards.
16+1 Phases Digital Power Design
- 90A Smart Power Stage for Each vCore Phase
- High Current Capacity MOSFET
- Tantalum Polymer Capacitors Array
- Lower Temperatures
- Improved Transient
Z490 AORUS XTREME motherboard uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1440A. This 100% digital controller, new Tantalum Polymer Capacitors array, and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the new 10-core 10th Gen. Intel Core processors.Due to the lower resistance of the polymer materials, tantalum polymer caps generally have better ESR and ripple current specifications, as well as better performance at high frequency.
2X Copper PCB
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
THERMAL REACTIVE ARMOR
Z490 AORUS XTREME uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.
Fins-Array II
Fins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that need compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance.
Louver Directed Flow
Heat flow that goes through fins will enter from the leading edge of the louver and is then directed by other louvers or fins. This louver directed flow can greatly improve heat transfer performance.
Right-Angled Connectors
Z490 AORUS XTREME uses revolutionary Right-Angled Connectors design, 90% of pin headers and connectors on motherboard are right-angled and relocated to one side of PCB. The never-seen-before design help easier cable management and better in-chassis air-flow when installing great amount of devices.
NanoCarbon Baseplate
- Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity.
- A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to enhance thermal radiation capability.
- Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can dissipate heat passively.
- Effectively lowers backside PWM component temperature by 10%.
AORUS M.2 Thermal Guard II
With durability in mind, GIGABYTE provides a new thermal solution for large capacity M.2 SSD devices with double side flash. The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it becomes an issue.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
UNPARALLELED PERFORMANCE
Hungry for better performance? Z490 AORUS XTREME has a full PCIe 4.0 hardware design, supports high frequency memory, and comes with full SSD thermal guards to make sure you get the maximum full system performance.
XTREME MEMORY
Z490 AORUS XTREME uses revolutionary "XTREME MEMORY" technology, which includes Shielded Memory Routing, SMT DIMM, and Tantalum Polymer Capacitors Array to minimize all noise and electrical interference and reach the highest memory clock.
Support for DDR4 XMP Up to 5000MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Z490 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
AORUS RAID SSD 2TB
Upgrade to PCIe 4.0 storage performance on the Z490 platform with AORUS RAID SSD 2TB. The SSD is embedded with RAID controller, transfer speed up to amazing 6300 MB/s. The performance is twice faster than regular PCIe 3.0 SSD. It surely brings high efficiency to your work, shorten the time of waiting. It’s the perfect solution for prosumers like video editors, 3D file creators and engineers who make giant files daily. Further more, Users can easily to configure RAID array to meet your needs under BIOS.
NEXT GENERATION CONNECTIVITY
A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z490 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Next Generation Multi-Gig Gaming
The AQUANTIA AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.
New Introduce Intel WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
USB TurboCharger
GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes. By connecting Front USB 3.2 Gen1 Type-A cable of chassis to our motherboard, USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.
HI-FI AUDIO
Still think motherboard audio is just “basic sound output”? We put a 100% full Hi-Fi sound card and all audio-grade components into the Z490 AORUS XTREME to ensure the best, crystal clear sound quality. Furthermore, an exclusive bundled ESSential USB DAC means users not longer have to endure bad audio quality from ancient Front Audio interfaces.
ESSential USB DAC
Complete Digital to Analog Signal processing on front-access USB Type-C ports gets rid of any possibility of distortions and provides superb sound stage recreation so users can experience the vocal cohesion. Enjoy the depth of the music and the immersive sound profile.
- USB Type-C for PC, Laptop and Android Devices
- Replace Ancient Front Audio Interfaces
- Powered by ESS SABRE HIFI DAC
- Premium Power Processing
- Left/Right Separation Routing
- Superior Sound Stage by WIMA Capacitors
DEFINITIVE AESTHETICS
GIGABYTE ID team designs Z490 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details, and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS XTREME and reinforce every slot to make each of them solid and durable.
Industry Leading Ultra Durable PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. Z490 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.
BIOS
- New User Interface : All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
- My Favorites : Add constantly used items into the favorite menu for quick access.
- Storage Information : Show all kinds of storage information including SATA, PCIE and M.2 interface.
- Changelog : List all changes before saving and exiting bios. Quickly review overall settings modification.
- Intuitive Load Line Curve : Clearly show each loadline calibration setting in an intuitive curve graph.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
CPU
- Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1200 package, L3 cache varies with CPU
Memory
- Intel Core i9/i7 processors : Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Intel Core i5/i3/Pentium/Celeron processors : Support for DDR4 2666/2400/2133 MHz, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
- Integrated Graphics Processor+Intel Thunderbolt 3 Controller : 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 288060 Hz with 24 bpp, Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.), Support for DisplayPort 1.4 version, HDCP 2.3, and HDR, Integrated Graphics Processor-Intel HD Graphics support : 1 x HDMI port, supporting a maximum resolution of 4096x2160 30 Hz, Support for HDMI 1.4 version and HDCP 2.3.
Audio
- Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio), Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio), Support for DTS:X Ultra, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
LAN
- 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1), 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
Wireless Communication module
- Intel Wi-Fi 6 AX201 : WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.1, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Actual data rate may vary depending on environment and equipment.
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16) : For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, 1 x PCI Express x16 slot, running at x8 (PCIEX8) : The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode., 1 x PCI Express x16 slot, running at x4 (PCIEX4): The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector, (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.): Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology
- Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies, Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10, Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors, Intel Optane Memory Ready, M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
- Chipset+Intel Thunderbolt 3 Controller : 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support, Chipset : 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header, 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, Chipset+USB 3.2 Gen 1 Hub : 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), Chipset+2 USB 2.0 Hubs : 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector, ,2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 6 x SATA 6Gb/s connectors, 3 x M.2 Socket 3 connectors, 1 x noise detection header, ,1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 2 x temperature sensor headers, 1 x power button, 1 x reset button, 1 x OC button, 2 x BIOS switches, Voltage Measurement Points
Back Panel Connectors
- 1 x Q-Flash Plus button, 1 x Clear CMOS button, ,2 x SMA antenna connectors (2T2R) 2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support), 4 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x HDMI port, 2 x RJ-45 ports, 1 x optical S/PDIF Out connector, 5 x audio jacks
H/W Monitoring
- Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control, Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install, Noise detection
BIOS
- 2 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center, Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications, BIOS, EasyTune, Fast Boot, Game Boost, RGB Fusion, Smart Backup, System Information Viewer, USB TurboCharger, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install
Bundled Software
- Norton Internet Security (OEM version), cFosSpeed, XSplit Gamecaster + Broadcaster (12 months license)
