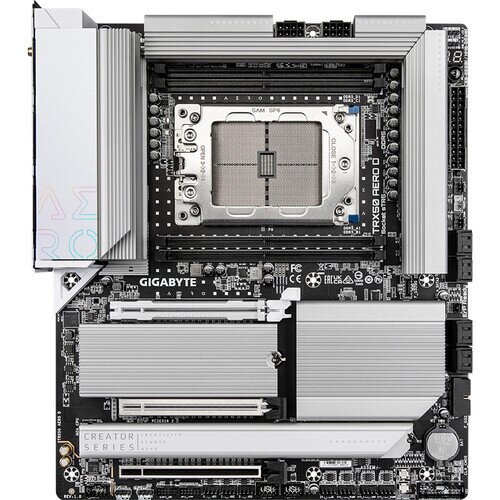

Gigabyte TRX50 AERO D sTR5 E-ATX (rev. 1.0) Motherboard
Gigabyte TRX50 AERO D sTR5 E-ATX (rev. 1.0) Motherboard Display Gallery Item 1
Gigabyte TRX50 AERO D sTR5 E-ATX (rev. 1.0) Motherboard Display Gallery Item 2
Gigabyte TRX50 AERO D sTR5 E-ATX (rev. 1.0) Motherboard - 2 Display Gallery Item 3
Gigabyte TRX50 AERO D sTR5 E-ATX (rev. 1.0) Motherboard - 4 Display Gallery Item 4

Gigabyte TRX50 AERO D sTR5 E-ATX (rev. 1.0) Motherboard - Shop Now!

By: Gigabyte

Model: TRX50 AERO D (rev. 1.0)

Sku: TVAIAOM1A3

Be the first to review this product

Sign up for price alert

PKR 256,099

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • CPU: AMD Socket sTR5, support for: AMD Ryzen Threadripper PRO 7000 processors / AMD Ryzen Threadripper 7000 Series processors (Go to GIGABYTE's website for the latest CPU support list.)
  • Chipset: AMD TRX50
  • Memory: Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS), 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory, Quad channel memory architecture, Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules, (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Audio: Realtek ALC4080 CODEC (rear panel audio),Support for DTS:X Ultra High Definition Audio, 2-channel, Realtek ALC897 CODEC (front panel audio)
  • LAN: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1), Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
  • Wireless Communication module: Qualcomm Wi-Fi 7 QCNCM865, 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11be 320MHz wireless standard, (Actual data rate may vary depending on environment and equipment.)
  • Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10), Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.
  • Expansion Slots: CPU: 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
  • Storage Interface CPU: M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU), M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU), CPU+Chipset: 8 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB: CPU: 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, Chipset+Intel JHL8540 USB4 controller: 2 x USB4 USB Type-C ports on the back panel, Chipset: USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header, USB 3.2 Gen 2 Type-A port (red) on the back panel, 2 x USB 3.2 Gen 1 ports available through the internal USB header, CPU+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel, Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
  • BIOS: 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features: Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash, Support for Q-Flash Plus
  • Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software
  • Operating System: Support for Windows 11 64-bit
  • Form Factor: E-ATX Form Factor; 30.5cm x 26.4cm
Quantity:
  • Add to Wishlist
  • Add to Compare
  • Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
  • Breakthrough Performance：16+8+4 Phases Digital VRM Solution
  • Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
  • Next-gen Connectivity: Dual USB4 Type-C ports
  • Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
  • PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • EZ-Latch Plus：M.2 slots with quick release design
  • Hi-Fi Audio with DTS:X Ultra：ALC4080+ALC897 CODEC
  • UC BIOS：User-Centred intuitive UX with Quick Access function

16+8+4 Phases Digital VRM

  • 108A Smart Power Stage
  • 12 Layer PCB
  • PCIe 5.0 Ready Low Loss PCB
  • 2X Copper PCB

Full-length PCIe slots

  • PCIe 5.0 x16 with PCIe UD Slot X
  • PCIe 5.0 x16 Slot
  • PCIe 4.0 x16 Slot

4 x DDR5 R-DIMMs, Quad Channel with Memory UD Slot

Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors

4 x M.2 Slots with Thermal Guard

  • 3 x M.2 Gen 5 M.2 UD Slots
  • M.2 Gen 4 M.2 Slot

Breakthrough performance, more possibility

Revolutionary Power Design

The TRX50 AERO D motherboard is designed for content creators, enthusiasts, and AI professionals. Equipped with the all-digital 16+8+4 phases power design of the Infineon multiphase PWM controller, the TRX50 AERO D unleashes exceptional performance of the new generation AMD Ryzen Threadripper CPU, while providing the best stability under heavy workloads and committing the most powerful HEDT platform to builders.

Advanced thermal

With enlarged full metal thermal design, TRX50 AERO D motherboard birngs you exceptional performance while keep the system cool and solid.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Memory Leading DDR5 Performance

Maximum Capacity

TRX50 AERO D supports the max. memory capacity of DDR5 RDIMM up to 1TB, which brings crucial advantage when running high-demand computing like video editing, 3D rendering, high-resolution content creation, simulation, AI training, and etc..

Elevating Performance Together

TRX50 AERO D signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

Exclusive Partnership

introduces innovative features for computer enthusiasts and professionals

UC BIOS

Redesigned as user-centered and provides intuitive performance tweakers.

Redesigned UI and UX

an intuitive operation interface with an aesthetically pleasing design.

Quick Access

customizable option slots for effortless access in Easy Mode.

Internal I/O Connectors

  • 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • CPU fan header
  • CPU fan/water cooling pump header
  • 4 x system fan headers
  • 4 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • RGB LED strip header
  • 4 x M.2 Socket 3 connectors
  • 8 x SATA 6Gb/s connectors
  • front panel header
  • front panel audio header
  • USB Type-C header, with USB 3.2 Gen 2x2 support
  • USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • noise detection header
  • Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  • power button
  • Clear CMOS button
  • reset button
  • reset jumper
  • 2 x temperature sensor headers
  • Clear CMOS jumper

Back Panel Connectors

  • Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • DisplayPort In port
  • USB4 USB Type-C port (DisplayPort)
  • USB4 USB Type-C port
  • 4 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 2 x RJ-45 ports
  • 2 x audio jacks

In the Box

  • Gigabyte TRX50 AERO D sTR5 E-ATX (rev. 1.0) Motherboard
