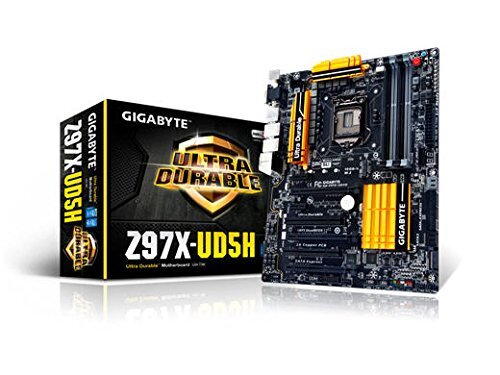

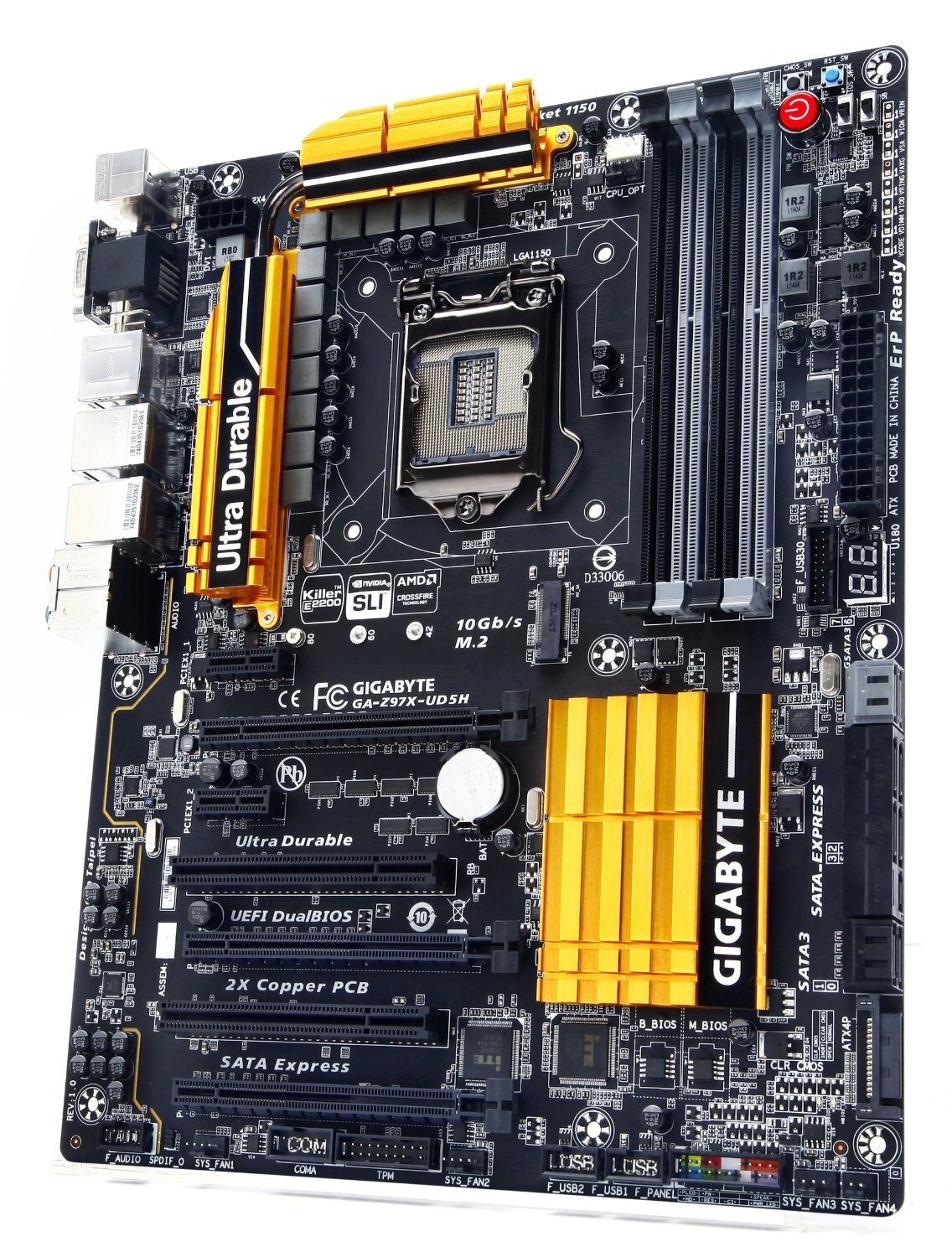

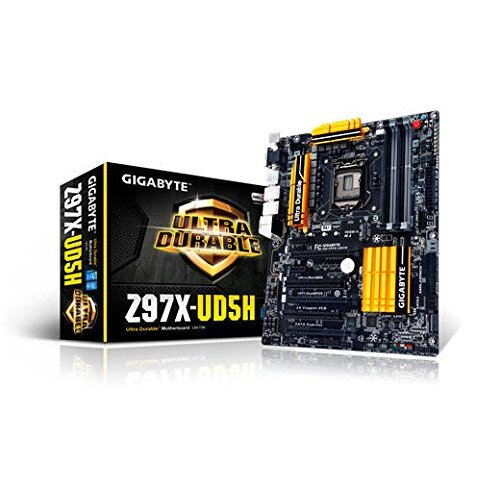

Gigabyte GA-Z97X-UD5H Motherboard

By: Gigabyte

Model: GA-Z97X-UD5H

Sku: UY42MOWBS1

PKR 21,799.00

& FREE Delivery

Availability: In Stock

  • Supports 4th and 5th Generation Intel Core processors
  • Extreme multi graphics support
  • Precise digital CPU power design
  • High Quality Audio Capacitors
  • Audio Noise Guard with LED path lighting
  • SATA Express support for 10 Gb/s data transfer
  • M.2 for SSDs drives with up to 10 Gb/s data transfer
  • Killer E2200 and Intel gaming networking
  • Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier
  • 2x copper PCB design
  • Long lifespan Durable Black Solid caps
  • APP Center including EasyTune and Cloud Station utilities
  • GIGABYTE UEFI DualBIOS
Quantity :

High Quality Audio Capacitors

GIGABYTE Ultra Durable motherboards use high quality audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.

GIGABYTE 9 Series Motherboards

GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.

Extreme Multi-GPU Support

Flexible graphics capabilities supported for either 3-Way CrossFire or 2-Way SLI action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

M.2 Onboard Connector

GIGABYTE 9 series motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.

SATA Express Connector

SATA Express interface provides multiple PCI Express lanes and 2 SATA 3.0 6 Gb/s ports, exposed through the same connector, allowing use of both PCI Express and SATA storage devices. Exposed PCI Express lanes are providing a pure PCI Express connection to the storage device, without any additional layers of abstraction.

Intel Gigabit LAN

Intel Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

Realtek ALC1150 115dB SNR HD Audio

The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

Built-in Rear Audio Amplifier

Specially designed for gamers, GIGABYTE 9 series Ultra Durable motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high-quality professional headphones.

APP Center

GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.
