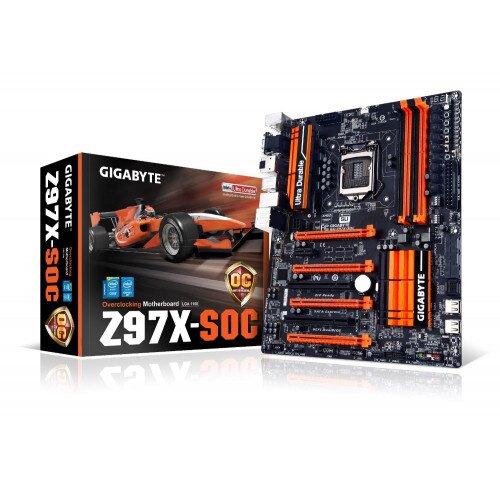

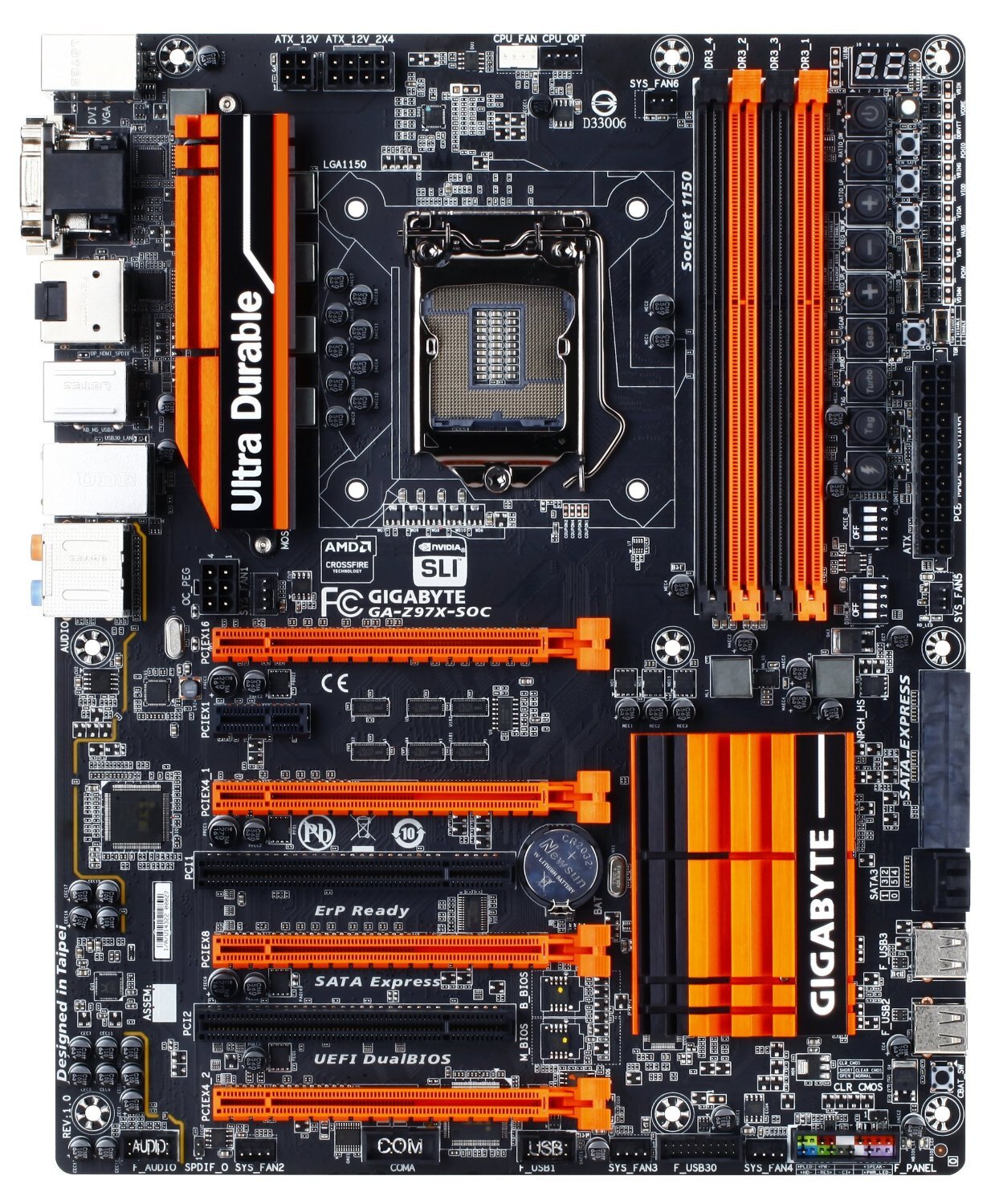

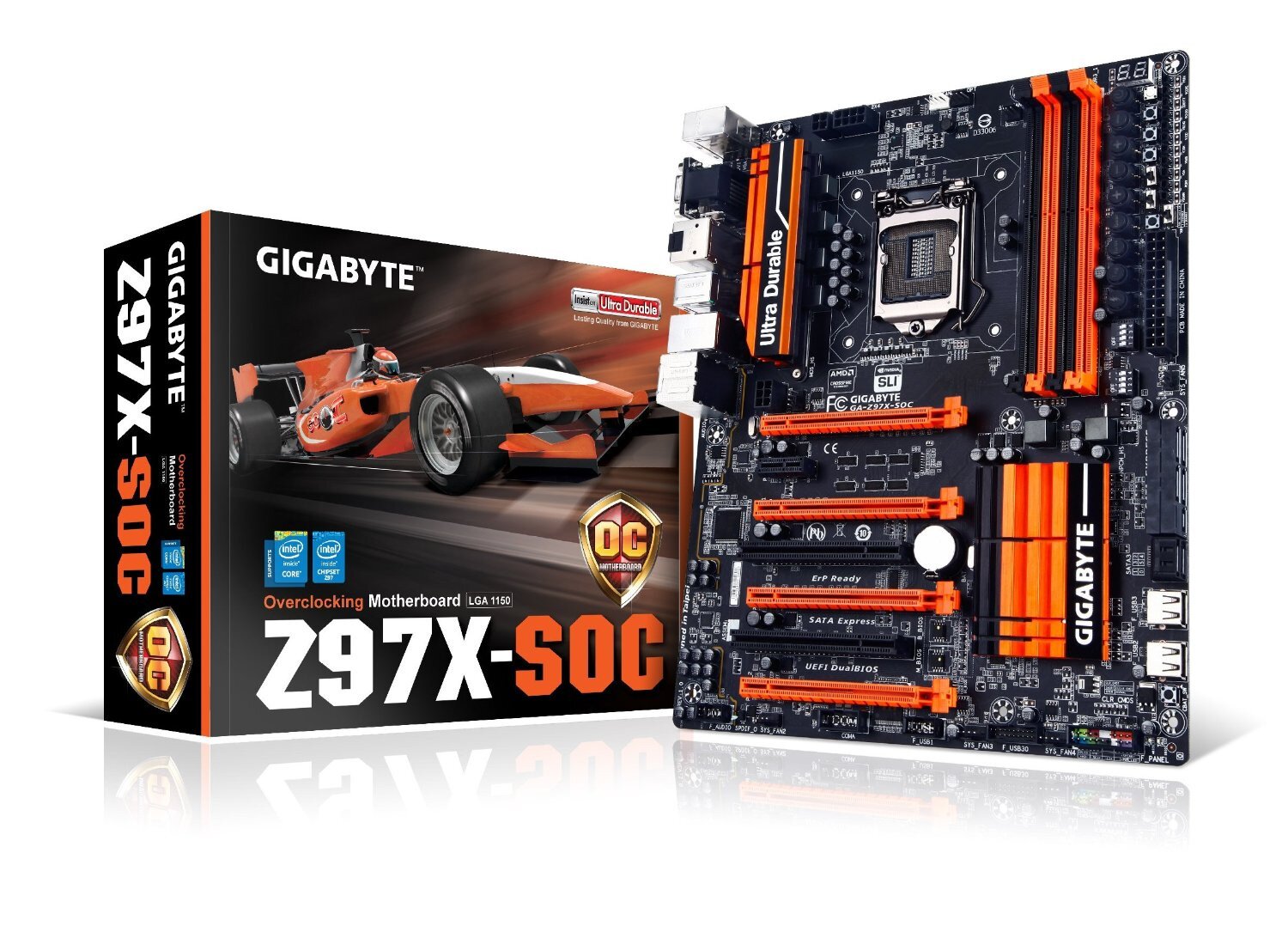

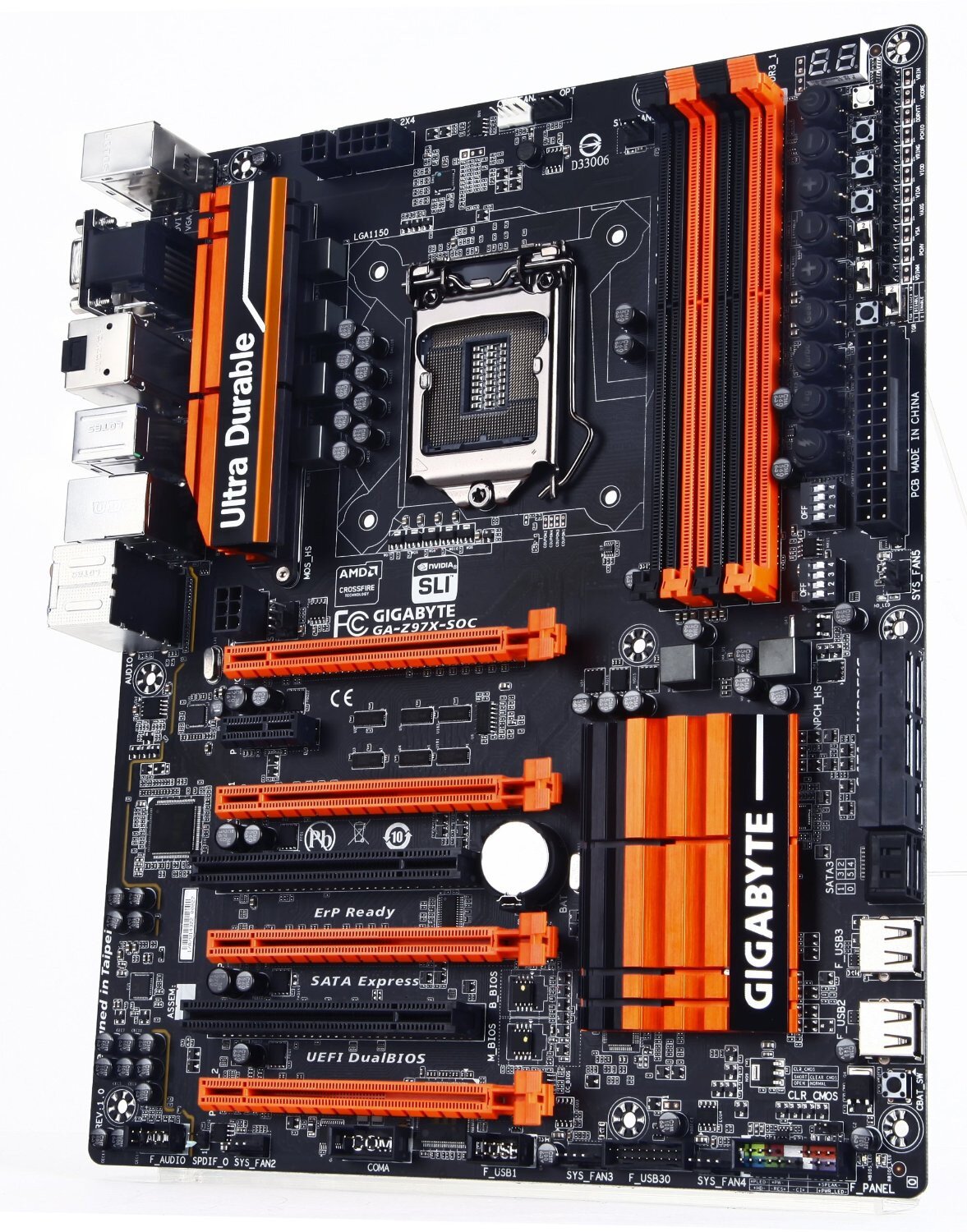

Gigabyte GA-Z97X-SOC Motherboard Price in Pakistan

By: Gigabyte

Model: GA-Z97X-SOC

Sku: LND6M3ISSY

Availability: Out of stock New

Availability: Out of stock

  • Supports 4th and 5th Generation Intel Core processors
  • Premium 4-way CrossFire support
  • Precise digital CPU power design
  • SATA Express support for 10 Gb/s data transfer
  • Exclusive GIGABYTE OC Features
  • Intel GbE LAN with CFOS internet accelerator software
  • 2x copper PCB design
  • Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier
  • New Heatsink design with 8 onboard fan connectors
  • Long lifespan Durable Black Solid caps
  • APP Center including EasyTune and Cloud Station utilities
  • GIGABYTE UEFI DualBIOS
Quantity :

GIGABYTE 9 Series Overclocking Motherboards

Following the success of the GIGABYTE Z87X-OC motherboard, the #1 most overclocked motherboard on HWBOT.org in 2013, GIGABYTE has unleashed the Z97X-SOC Force LN2 overclocking motherboard. With a host of unique OC features and bleeding-edge hardware design, GIGABYTE 9 series overclocking motherboards will allow even novice users to Overclock Like a Pro.

OC Ignition

OC Ignition maintains power to the motherboard and connected components while the system is shut down. This means that system fans will continue to provide airflow in cold bug situations, while i-ram drive users will not lose installed data. OC Ignition also allows users to pre-test water cooling setups, and allows case mod demonstrations without having to turn on the PC.

OC Touch

GIGABYTE OC Touch includes a range of hardware overclocking buttons directly on the motherboard, making overclocking on the fly extremely fast and easy.

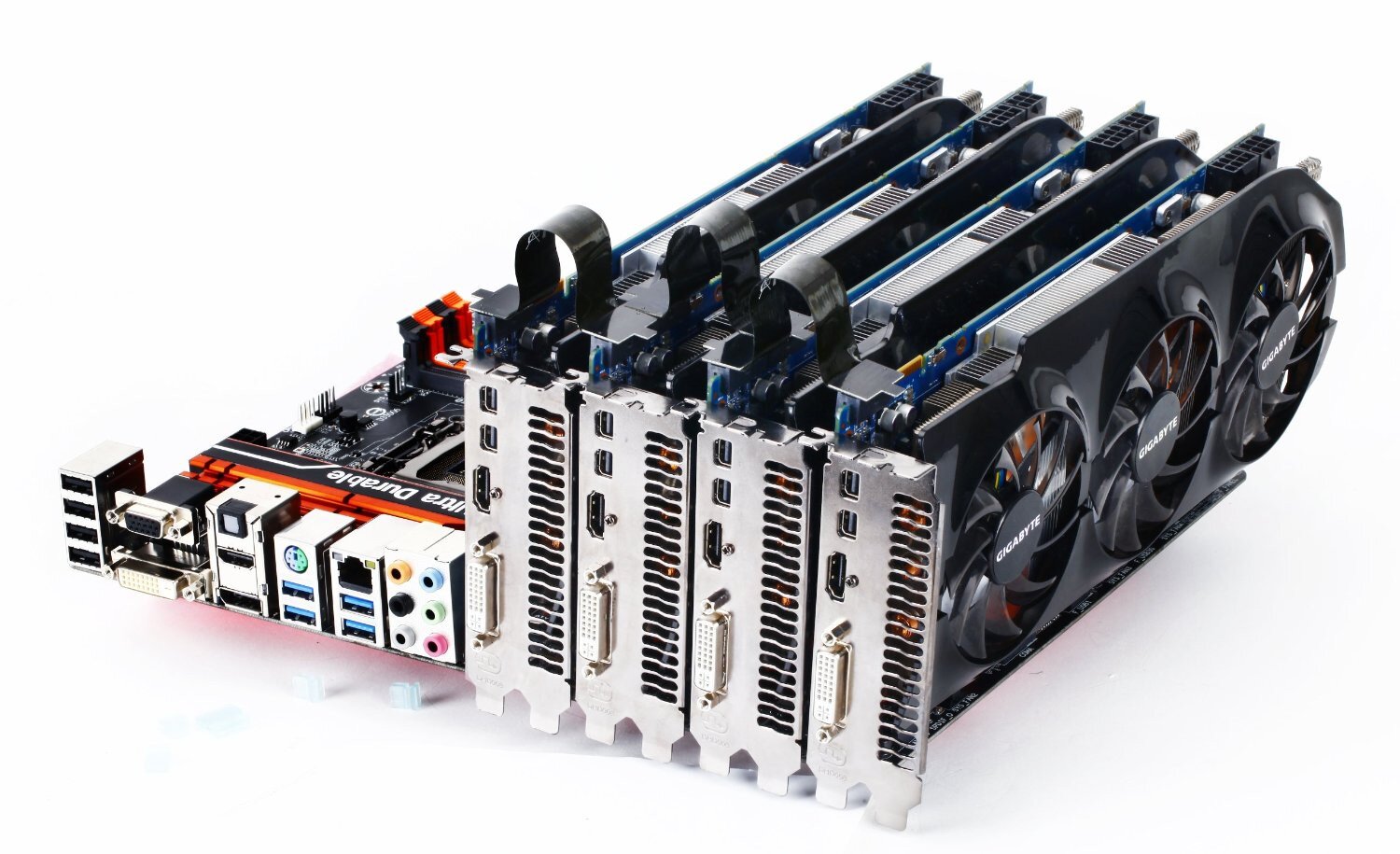

Premium Graphics Support

GIGABYTE 9 series overclocking motherboards feature optimized support for AMD CrossFire(TM) in 4 way configuration plus support for Nvidia SLI technology in 2-way setups. This extreme design allows a more optimized multiple-card overclocking experience where the first 3 slots have the data bandwidth available from trace paths direct from the CPU and the fourth slot taking PCIe lanes from the Intel(R) Z97 PCH.

OC PEG

OC PEG adds auxiliary power to the PCIe slots of your motherboard, improving system stability in extreme configurations. This is especially useful in power-hungry 4-way graphics configurations.

OC Connect

OC Connect positions two USB connectors on the near side of the motherboard facing the overclocker. This makes it easier to save data, flash the BIOS or install software in open bench testing platforms whether for extreme overclocking or simply pretesting the PC before final component installation inside a case scenarios where accessing the rear panel I/O can be an inconvenience.

SATA Express Connector

GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won't bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

Realtek ALC 1150 115dB SNR HD Audio

The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

In the Box

  • Gigabyte GA-Z97X-SOC Motherboard
  • Motherboard driver disk
  • Four SATA cables
  • User's Manual
  • I/O Shield
  • Quick Installation Guide
  • 2-Way SLI bridge connector
