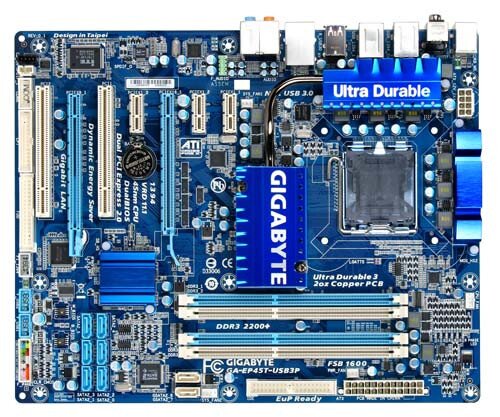

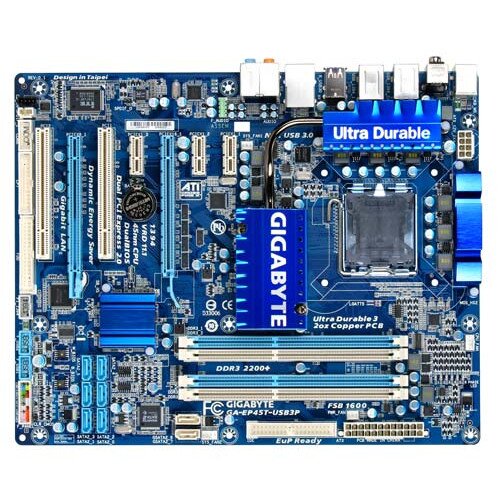

The GA-EP45T-USB3P introduces revolutionary GIGABYTE Ultra Durable 3 technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the Intel P45 chipset the GA-EP45T-USB3P delivers a record-setting 1600MHz FSB for the latest Intel Core 2 multi-core processors, and supports dual channel DDR3 memory at speeds of up to 2200MHz and even higher. The GA-EP45T-USB3P boasts dual PCI Express 2.0 VGA card slots for ATI CrossFireX(TM) support with ultra smooth 3D rendering and blazingly-fast frame rates. Additionally, the board incorporates GIGABYTE DES Advanced technology for industry leading energy saving and enhanced system efficiency.
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft(R), setting the standard for future Windows 7 certified motherboards.
GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry's first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.
GIGABYTE Ultra Durable 3 motherboards are also equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, Ferrite core chokes with higher energy efficiency compared to the commonly used iron core chokes and Lower RDS(on) MOSFETs that features a lower resistance, which reduces power consumption and heat generation. GIGABYTE Ultra Durable 3 series motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.

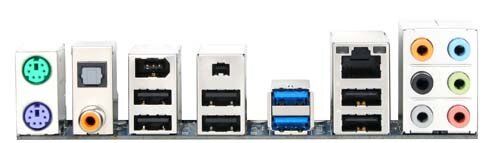

The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
Delivering native support for DDR3 memory up to 2200+MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
GIGABYTE Smart TPM provides the industry's highest level of data protection with 2048 bit hardware encryption. Smart TPM allows users to store their digital key on a USB thumb drive. In addition, Smart TPM allows users to lock the protected data remotely using a Bluetooth(R) enabled mobile phone.
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world's only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTE's DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
