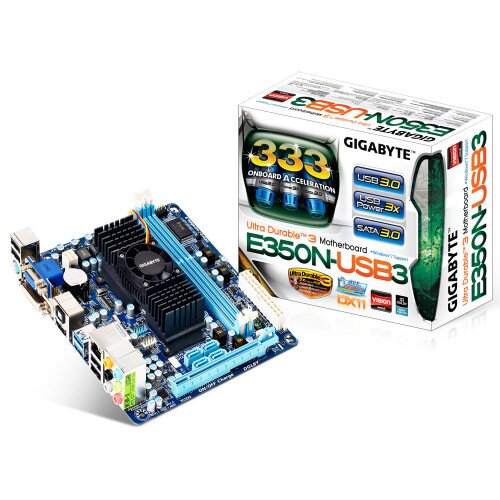

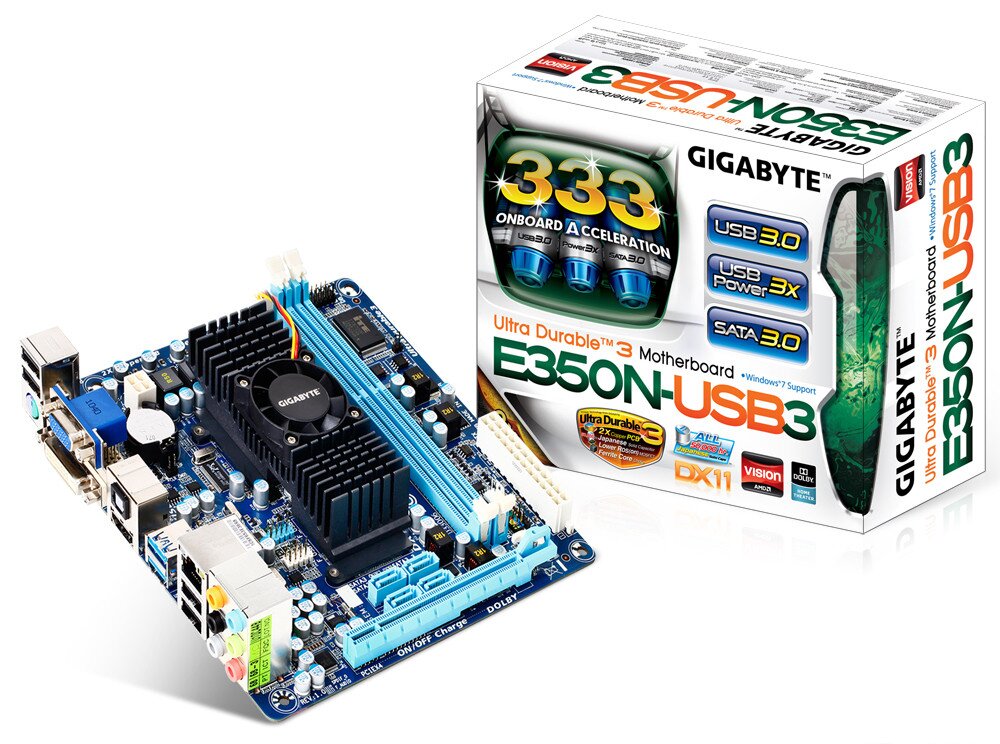

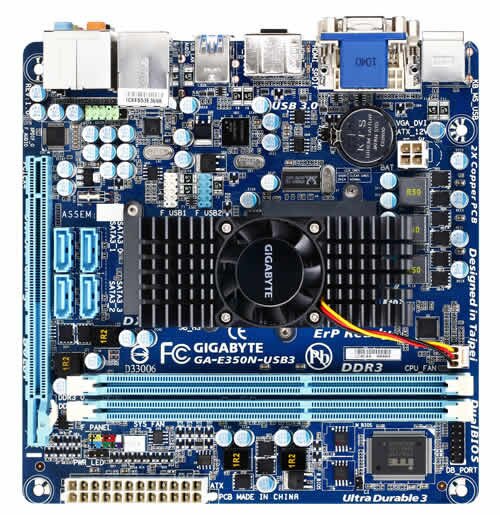

The new addition to GIGABYTE's small form factor HTPC motherboard range features AMD Fusion Technology with DirectX(R) 11, SuperSpeed USB (USB 3.0), SATA 6Gbps, an HDMI interface, as well as a host of unique high-end GIGABYTE features such as Ultra Durable 3 Classic, 3x USB Power and On/Off Charge for quick charging iPad, iPhone and iPod Touch devices. Powered by the AMD E-350 Dual-Core Processor with AMD Radeon HD 6310 graphics (DX11), the GIGABYTE GA-E350N-USB3 motherboard provides exceptional Blu-ray high definition content playback unmatched by previous integrated graphics solutions.
The new generation AMD Dual-Core E-350 processor with AMD Radeon HD 6310 graphics (DX11) integrated for entry-level desktops continues to provide innovation through integrated graphics built directly into the CPU, enabling smaller and more energy efficient designs.
The AMD A50M FCH(Fusion Controller Hub) provides additional flexibility and upgradability with native SATA3 6Gbps storage interface and also expansion ability for USB3.0 and various features support.
Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's BIOS utility that is freely available from the GIGABYTE website.
GIGABYTE DualBIOS is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive.
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
The 3DMark 2006 is a benchmark software which is from Futuremark Corporation and generally used on analyzing a PC performance of DirectX(R) 3D visualization, especially a valuable guideline for gaming users as reference.
Delivering native support for DDR3 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
