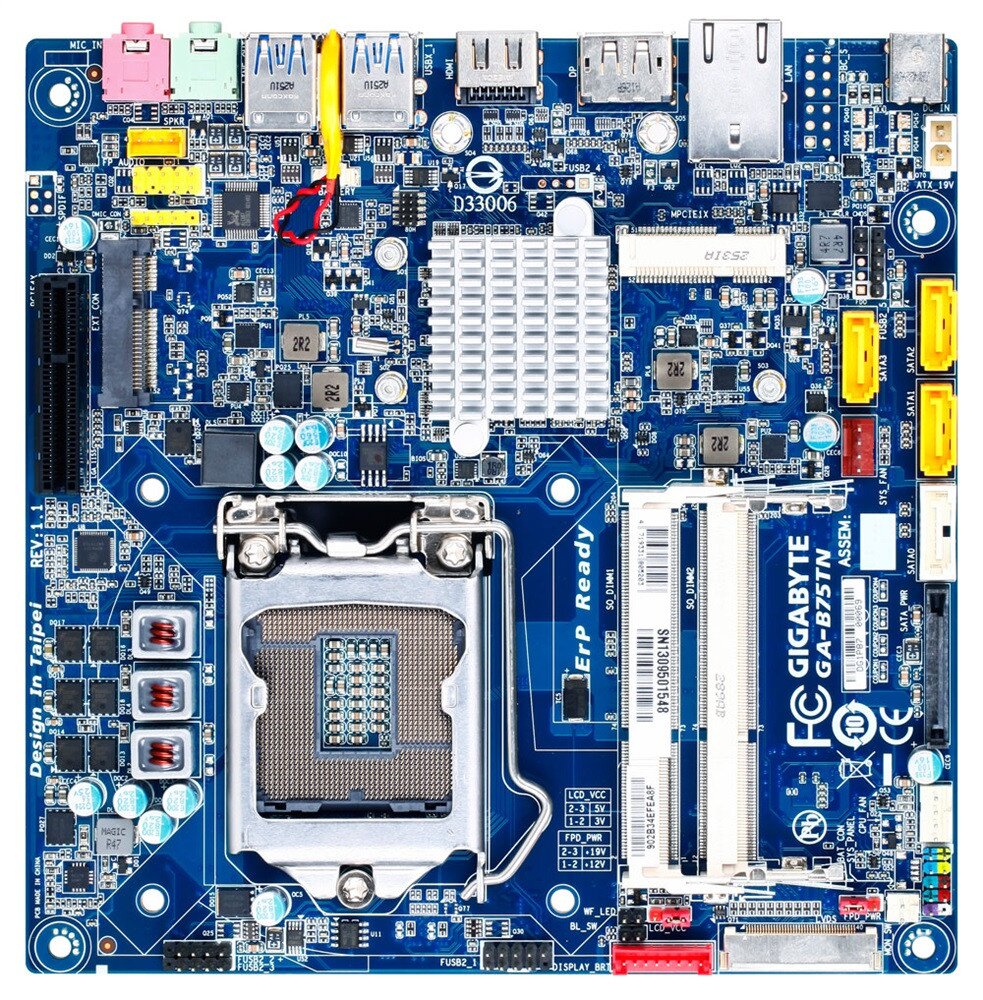

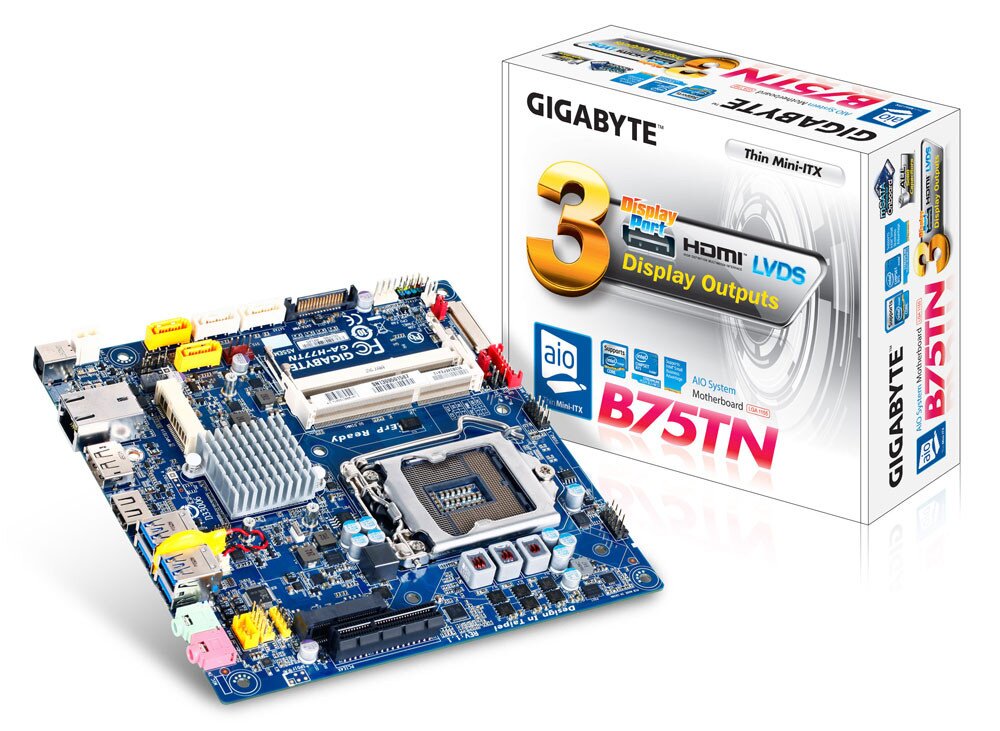

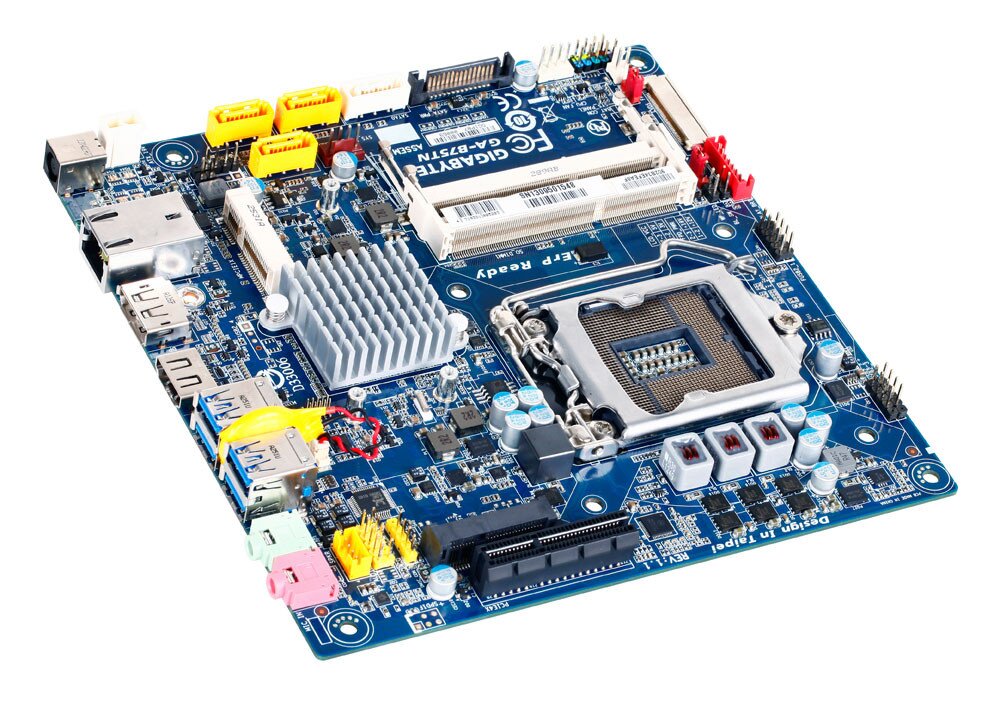

Gigabyte GA-B75TN Motherboard Price in Pakistan

By: Gigabyte

Model: GA-B75TN

Sku: IN8H8CC3SS

Availability: Out of stock New

Availability: Out of stock

  • Panel Driver Power Selectable
  • Back Light Module Power Selectable
  • Wide Range Voltage Input
  • Onboard mSATA slot for mSATA SSDs
  • PCI Express x4 Slot
Quantity :

GIGABYTE Thin Mini-ITX Motherboards

GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today's All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs.

Selectable Panel Power Driver

GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper.

Selectable Back Light Power Module

GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today.

Wide Range Voltage Input

Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs.

PCI Express x4 Expansion Slot

GIGABYTE Thin Mini-ITX motherboards are equipped with a x4 PCI Express expansion slot providing up to 25W of power and easy integration of TV tuner, video capture or RAID cards with a compatible riser card.

Designed for PCI Express Gen.3 Support

GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel Core processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.

Intel Rapid Start Technology

Intel Rapid Start Technology gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows 7 is a few seconds without having the PC go through a full system boot. With Intel Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.

Intel Smart Connect Technology

Intel Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered--just press the 'on' button and you're up-to-date and ready to go.

SuperSpeed USB 3.0

GIGABYTE motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.

In the Box

  • Gigabyte GA-B75TN Motherboard
  • Motherboard driver disk
  • User's Manual
  • SATA power cable
  • I/O Shield
  • Screws kit for expansion cards
