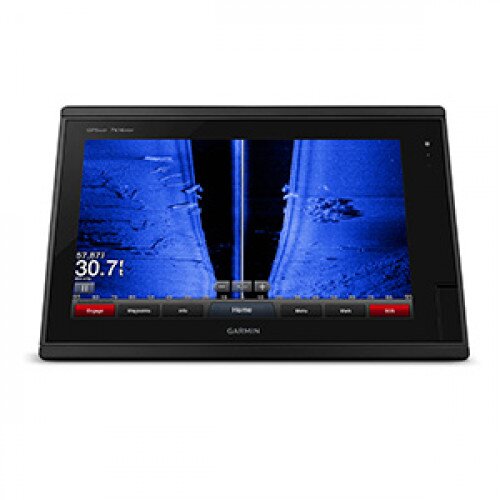

Designed for sportsfishermen, cruisers, sailors and sailing racers who demand high performance, ease of operation, and feature integration in a chartplotter/sonar combo. The 16-inch multi-touch widescreen GPSMAP 7616xsv includes built-in dual CHIRP sonar plus CHIRP ClearVu and CHIRP SideVu scanning sonar with the clearest images on the water. Also supports 50 kHz/200 kHz, 77 kHz/200 kHz plus Minn Kota and MotorGuide trolling motor transducers. Internal 10 Hz GPS updates your position and heading 10 times per second.
Fully network capable, including Garmin Network and NMEA 2000 (radar, autopilot, instruments, multiple screens, FUSION-Link, sensors, black box sonar, digital switching, thermal cameras, GRID and more), GPSMAP 7616xsv also offers the conveniences of built-in Wi-Fi connectivity.
The built-in sonar capabilities of the GPSMAP 7616xsv include 1 kW dual CHIRP sonar, the most sophisticated sonar technology available for the fishing and boating public. It also includes both CHIRP ClearVu and CHIRP SideVu scanning sonar that provide nearly photographic sonar images of fish and structure that passes below and to the sides of your boat. ClearVu and SideVu provide the clearest scanning sonar images on the water. Also supported are 50 kHz/200 kHz, 77 kHz/200 kHz and Minn Kota and MotorGuide trolling motor transducers (transducers sold separately).
Full-network compatibility allows you to add more to your boat. GPSMAP 7616xsv supports radar, autopilot, instruments, multiple screens, FUSION-Link, sensors, remote sonar modules, digital switching, thermal cameras, GRID and more.
You can add your choice of Garmin marine radar, including our powerful xHD2 open array radars or xHD dome radars that pair ease of use with advanced open array features.
GPSMAP 7616xsv allows you to share features with other compatible GPSMAP units, such as radar, supplemental maps and user data, including waypoints, routes and tracks. User data entered into 1 chartplotter can be automatically synced with other chartplotters in a network.
Fast, responsive 10 Hz GPS/GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back them quick and easy.
Supported sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Racing features include pre-race guidance, synchronized race timer, virtual starting line, time to burn and lay line data fields. Gauge displays are designed to provide important need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs, and a data bar with customizable data fields.
In addition to the basic charts, tidal stations, currents, depth contours, IALA symbols and included fishing charts, BlueChart g2 offers smooth transitioning between zoom levels and more seamless continuity across chart boundaries. You can customize your screens with Safety Shading which allows you to contour shade for all depth contours shallower than what you determine is your safe depth. Fishing charts emphasize bathymetric contours with less visual clutter on the display. And there’s also a choice of standard 2-D direct overhead or 3-D “over-the-bow” map views for easier chart reading and orientation.
These highly detailed freshwater maps include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 13,000 HD lakes with 1-foot contours shoreline to shoreline; excellent detail of underwater features plus Shallow Water Shading that allows you to designate a minimum depth; interstates, highways, general roads and bridges; designated fishing areas; and points of interest, such as docks, boat ramps, marinas and campgrounds.
Two SD card slots provide expandable memory for accessory map purchases such as LakeVu HD Ultra with MaxDef Lakes or BlueChart g2 Vision that add Garmin patented Auto Guidance and other great features.
The GND 10 black box interface seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus network and NMEA 2000 to provide trouble-free compatibility between Nexus and Garmin products, including gWind and gWind Race transducers.
gWind, gWind Wireless and gWind Race transducers feature twin-fin technology with 3-bladed propeller. Connect to the NMEA 2000 and compatible Garmin chartplotters via the GND 10 black box bridge.
Enjoy the ability to control all compatible FUSION-Link-enabled audio systems directly from your compatible chartplotter display.
