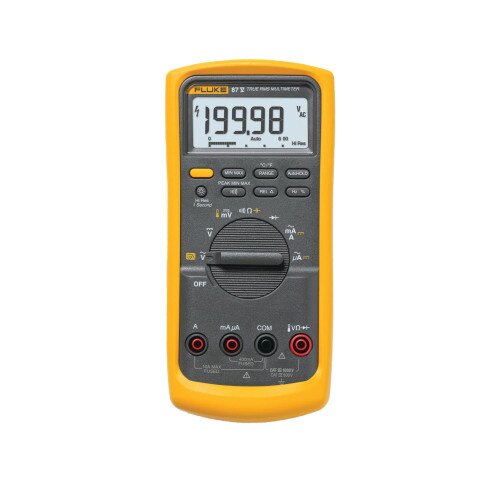

Fluke Networks 87V TRMS Industrial Multimeter
Fluke Networks 87V TRMS Industrial Multimeter Display Gallery Item 1
Fluke Networks 87V TRMS Industrial Multimeter - 2 Display Gallery Item 2
Fluke Networks 87V TRMS Industrial Multimeter - 3 Display Gallery Item 3
Fluke Networks 87V TRMS Industrial Multimeter - 4 Display Gallery Item 4
Fluke Networks 87V TRMS Industrial Multimeter - 5 Display Gallery Item 5
Fluke Networks 87V TRMS Industrial Multimeter - 6 Display Gallery Item 6
Fluke Networks 87V TRMS Industrial Multimeter - 7 Display Gallery Item 7

Fluke Networks 87V TRMS Industrial Multimeter Price in Pakistan

By: Fluke Networks

Model: Fluke 87V

Sku: RQ30POIGMS

Be the first to review this product

Sign up for price alert

PKR 237,899

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Voltage DC: Maximum voltage 1000 V
  • Accuracy: ±(0.05% + 1)
  • Maximum resolution: 10 µV
  • Voltage AC: Maximum voltage 1000 V
  • Accuracy: ±(0.7% + 2) True RMS
  • AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz
  • Maximum resolution: 0.1 mV
  • Current DC: Maximum amps 10 A (20 A for 30 seconds maximum)
  • Accuracy: ±(0.2% + 2)
  • Maximum resolution: 0.01 µA
  • Current AC: Maximum amps 10 A (20 A for 30 seconds maximum)
  • Accuracy: ±(1.0% + 2) True RMS
  • Maximum resolution: 0.1 µA
  • Resistance: Maximum resistance 50 MΩ
  • Accuracy: ±(0.2% + 1)
  • Maximum resolution: 0.1 Ω
  • Capacitance: Maximum capacitance 9,999 µF
  • Accuracy: ±(1% + 2)
  • Maximum resolution: 0.01 nF
  • Frequency: Maximum frequency 200 kHz
  • Accuracy: ±(0.005% + 1)
  • Maximum resolution: 0.01 Hz
  • Duty Cycle: Maximum duty cycle 99.9%
  • Accuracy: ±(0.2% per kHz + 0.1%)
  • Maximum resolution: 0.1%
  • Temperature Measurement: -200.0 °C to 1090 °C / -328.0 °F to 1994.0 °F (excluding probe)
  • 80 BK temperature probe: -40.0 °C to 260 °C / -40.0 °F to 500 °F, 2.2 °C or 2% whichever is greater
  • Conductance: Maximum conductance 60.00 nS
  • Accuracy: ±(1.0% + 10)
  • Maximum resolution: 0.01 nS
  • Diode: Range 3 V
  • Resolution: 1 mV
  • Accuracy: ±(2% + 1)
  • Duty cycle range accuracy: Within ±(0.2% per kHz + 0.1%)
  • Environmental :
  • Operating temperature: –20 °C to +55 °C
  • Storage temperature: –40 °C to +60 °C
  • Humidity (without condensation): 0%–90% (0 °C–35 °C), 0%–70% (35 °C–55 °C)
  • Operating Altitude: 2000 m
  • Safety :
  • Overvoltage category: EN 61010–1 to 1000 V CAT III, 600V CAT IV
  • Agency approvals: CE, CSA, RCM
  • Digital: 6000 counts (updates 4/sec), 19,999 counts in high–resolution mode
  • Analog: 32 segments (updates 40/sec)
  • Frequency: 19,999 counts (updates 3/sec at 10 Hz)
  • Battery life: ~400 hours typical (alkaline, without backlight)
  • Shock: 1 meter drop per IEC 61010–1:2001
  • Vibration: Per MIL–PRF–28800 for a Class 2 instrument
Quantity:
  • Add to Wishlist
  • Add to Compare

The Fluke 87V industrial digital multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment.

  • Safer and rugged: Safety rated CAT III 1000 V, CAT IV 600 V
  • Accurate: Measure current, voltage and frequency on complex variable frequency drive (VFD) signals
  • This electrical multimeter correctly measure pulse-width modulated motor drive signals
  • Save time: The 87V multimeter includes a built-in thermometer and temperature probe
  • True-RMS AC voltage and current for measuring non-linear signals

The Fluke 87V TRMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations.

This digital multimeter takes the guesswork out of drive system troubleshooting. This electrical multimeter

includes a unique function for accurately measuring noisy at the VFD and at the motor terminals. Special shielding blocks high frequency, high-energy noise generated by large drive systems.

The Fluke 80 Series V of digital multimeters have improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electro-mechanical equipment.

  • Rugged, high accuracy industrial electrical multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
  • Offers true-RMS AC voltage and current for measuring non-linear signals
  • Captures intermittents as short as 250 µS
  • Safety rated CAT III 1000 V, CAT IV 600 V
  • Includes a built-in thermometer and temperature probe

Applications

For Application engineer / Plant engineer / Industrial electricians (Working with VSD’s) / Electrical engineer. In plant automation, Power distribution, Electro-mechanical equipment, Industrial electronics, Setting up / repairing, adjustable speed motor drives.

In the Box

  • Fluke Networks 87V TRMS Industrial Multimeter
  • TL75 Test Leads (TL175 Eur)
  • AC175 Alligator Clips
  • Holster with tilt-leg, test lead storage
  • 80BK Temperature Probe
  • 9V Battery (Installed)
